Blue Sea Systems  |  SKU: LOS-14578  |  Barcode: 632085082611

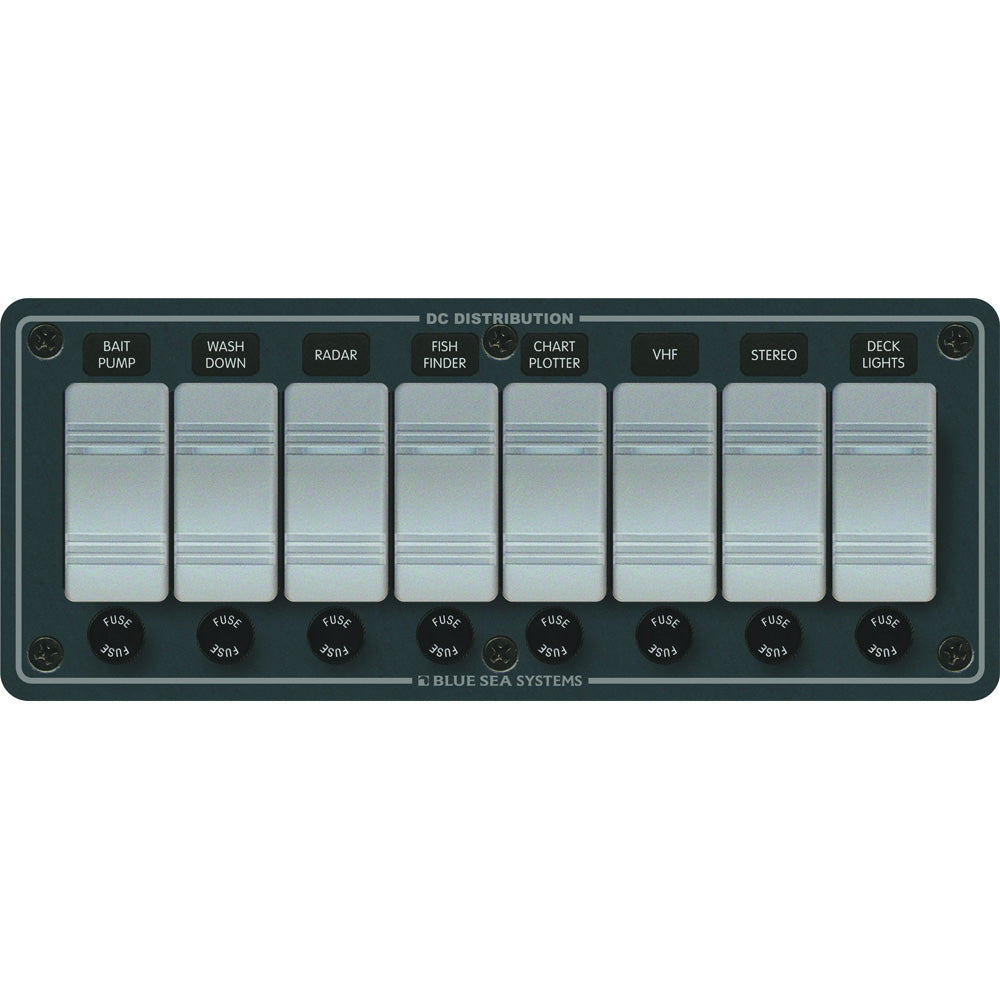

Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey

$191.99 USD $279.53

Product Description

The 8261 Waterproof Panel 8 Position in Slate Grey is a robust and reliable solution for managing electrical systems in marine environments. Designed to endure the harsh conditions typically found above deck, this panel ensures seamless control and protection for your boat's electrical components.

Features

  • Withstands water exposure common in above-deck applications, including salt spray, rain, hose washdowns, and momentary immersions
  • Specifically designed for flybridge and open cockpit applications
  • Equipped with ON-OFF Contura switches for precise control
  • Integrated ON-indicating LEDs in switches for clear status visibility
  • Includes a watertight mounting gasket to prevent moisture intrusion
  • Countersunk mounting holes for a flush and secure installation
  • Finished with a two-part polyurethane slate gray coating for durability and aesthetics
  • Compliant with industry-standard height and width for compatibility
  • Protected with Mil-Spec chemical treatment via immersion to guard against corrosion on every surface detail
  • Completely wired and ready for installation, simplifying setup

Specifications

Feature Details
Waterproof Resistant
Positions 8
Nominal Voltage 12V / 24V
Panel Cumulative Rating 90A
Switch Rating 20A @ 12V DC / 15A @ 24V DC
Height 3.75"
Width 9.37"
Depth 3"
AC/DC DC
Max Breaker Quantity 8
Box Dimensions 7"H x 10"W x 10"L
Weight 5.6 lbs
UPC 632085082611

Included in the Package

  • 8 x 5021 Panel Mount AGC/MDL Fuse Holders
  • 1 x 8214 Black 60 Label Set
  • 8 x 8230 Contura Switch SPST Gray - Off-On

Safety Information

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
