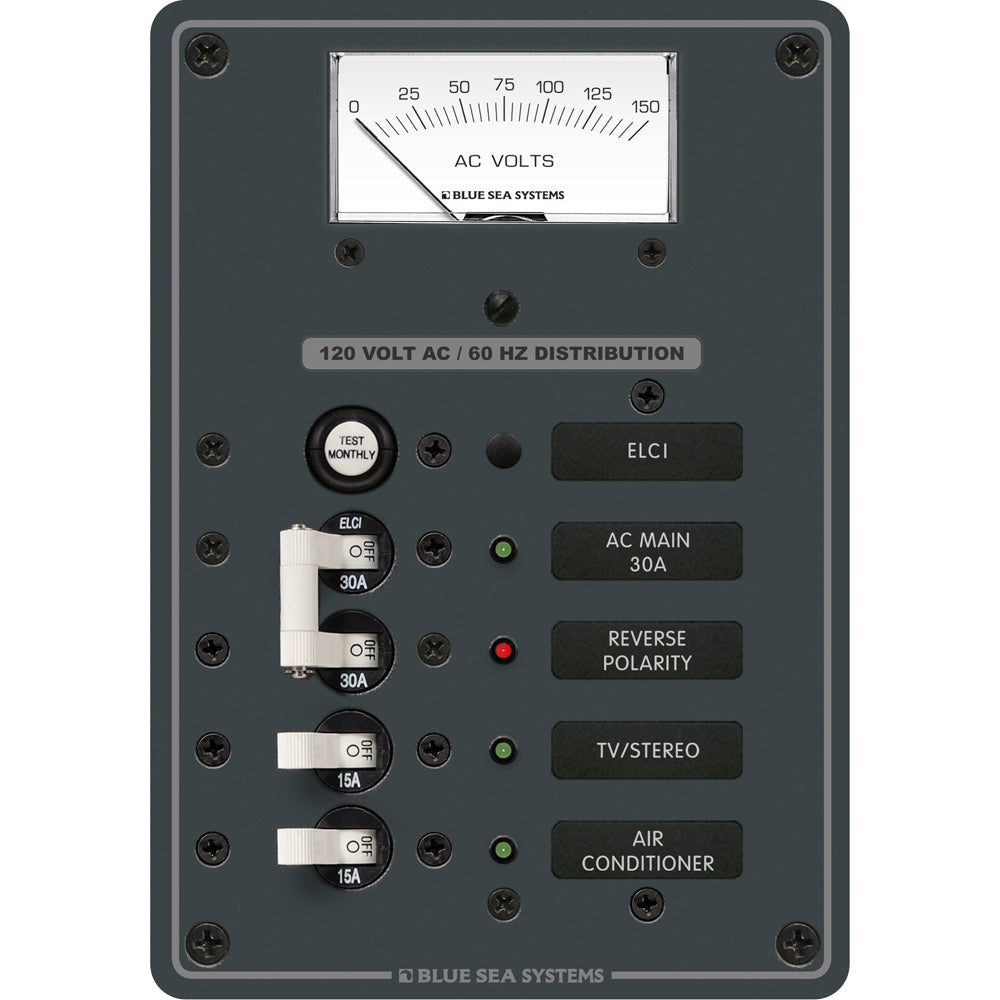

Blue Sea 8102 ELCI GFCI Panel AC 2 Position

The ELCI Main 30A Double Pole Residual Current Circuit Breaker with Voltmeter is an essential component for ensuring safe and reliable shore power connections on your marine vessel. Designed specifically for the demanding marine environment, this circuit breaker provides robust protection against overcurrents and electrical leaks, safeguarding both your boat and onboard electronics.

Key Features

• 30A AC ELCI Main Residual Current Circuit Breaker with a leakage trip threshold of 30 mA ensures comprehensive protection.
• Complies with ABYC E-11 standards for overcurrent and leakage protection, providing peace of mind for your entire boat’s shore power system.
• Equipped with a Red "Reverse Polarity" LED to indicate any polarity issues immediately.
• All circuit label positions are backlit for easy visibility in low-light conditions.
• Includes "ON" indicating LEDs to show the status of each circuit at a glance.

Specifications

Feature	Details
Positions	2
Nominal Voltage	120V AC
Leakage Trip Amps	30mA
Height	5.25" (133.35mm)
Width	7.50" (190.5mm)
Depth	3.50" (88.9mm)
Weight	2.25lb (1.02kg)
AC/DC	AC
Max Breaker Quantity	2
Box Dimensions	5"H x 9"W x 11"L
Weight	2.3 lbs
UPC	632085081027

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
