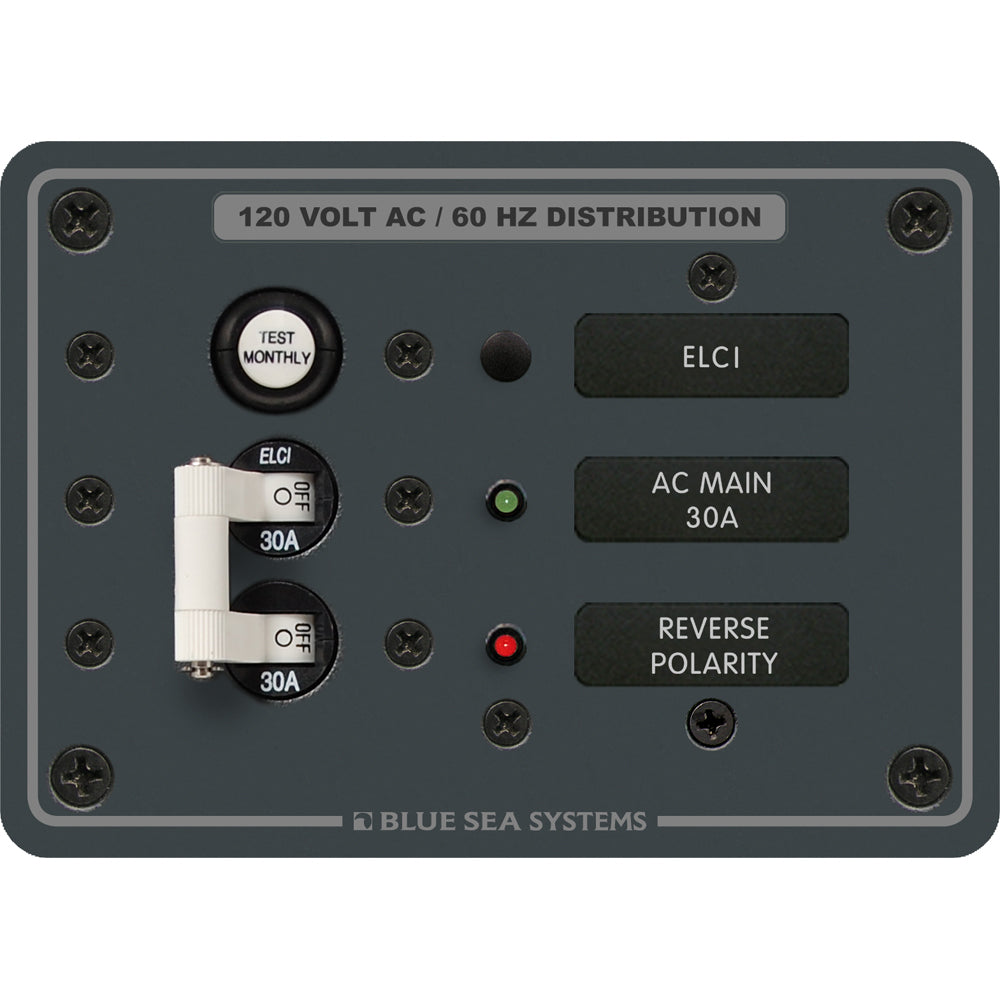

Blue Sea 8100 ELCI GFCI Panel

The ELCI Main 30A Double Pole Residual Current Circuit Breaker is a vital safety device for marine electrical systems. Engineered specifically for boat shore power applications, it ensures comprehensive protection against electrical faults and leakage, providing peace of mind for every voyage.

Key Features

• 30A AC double pole Residual Current Circuit Breaker with a leakage trip amperage of 30 mA
• Provides overcurrent and leakage protection in compliance with ABYC E-11 standards, ensuring complete shore power protection for your vessel
• Red "Reverse Polarity" LED indicator for immediate fault detection
• Backlit circuit label positions for enhanced visibility in low-light conditions
• "ON" indicating LEDs to confirm active power supply

Specifications

Nominal Voltage	120V AC
Leakage Trip Amps	30 mA
AC/DC	AC
Product Dimensions	Height: 5.25" (133.35 mm) Width: 3.75" (95.25 mm) Depth: 3.50" (88.9 mm)
Box Dimensions	5" H x 9" W x 12" L
Weight	2.25 lb (1.02 kg)
UPC	632085081003

Compliance and Safety

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
