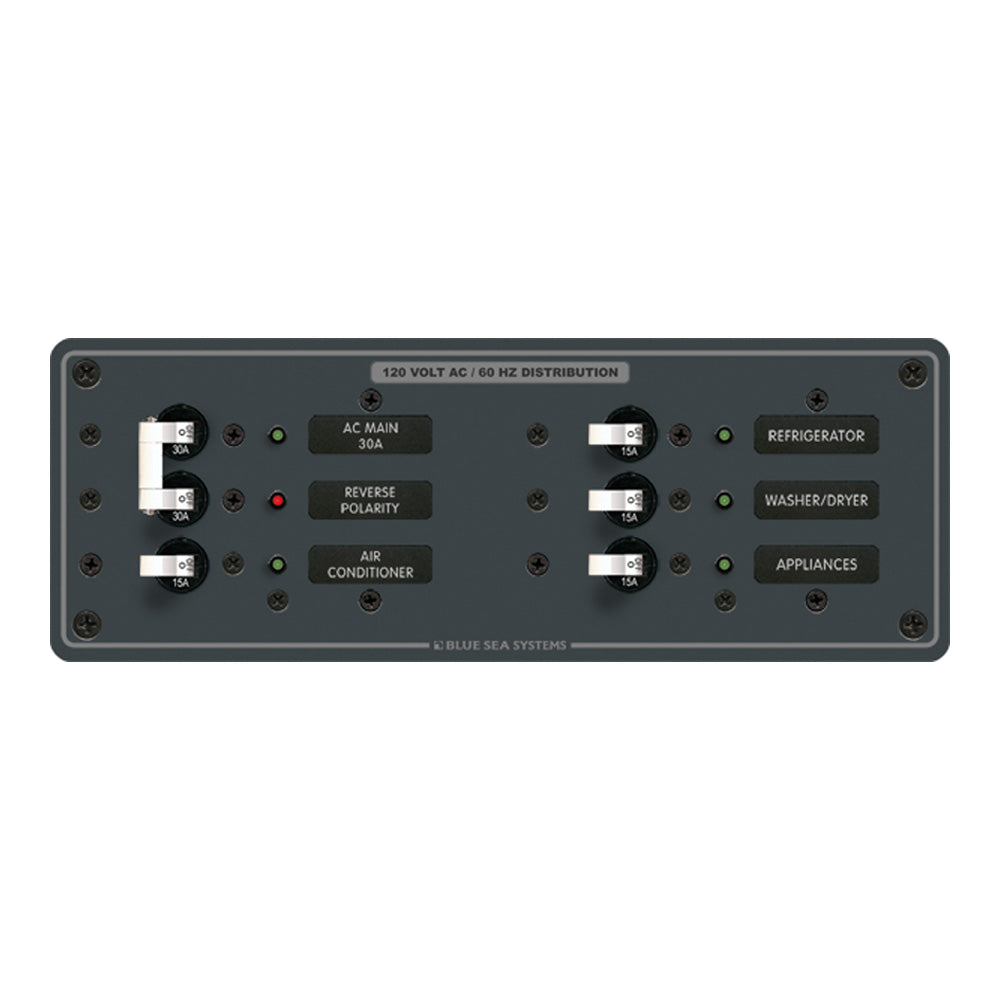

Blue Sea 8099 AC Main +4 Positions Toggle Circuit Breaker Panel (White Switches)

The AC Main +4 Positions panel is an essential component for marine electrical systems, delivering robust power distribution tailored for boats and marine vessels. With pre-installed wiring and advanced safety features, this panel ensures reliable and efficient performance in demanding marine environments.

Features

• Red reverse polarity indicating LED for enhanced safety
• All hot, neutral, and safety ground buses are installed and fully pre-wired for easy setup
• Label backlighting pre-installed for clear visibility in low light conditions
• All LEDs are installed to provide real-time status updates
• Maximum panel amperage of 50 amperes to handle substantial power loads
• Includes one 30A double pole circuit breaker for major circuits
• Comes with four 15A single pole circuit breakers to manage multiple devices
• Operates at 120 volts, suitable for standard marine applications

Specifications

Specification	Details
Maximum Breaker Quantity	4
AC/DC	AC
Voltage	120V
Box Dimensions	5"H x 8"W x 12"L
Weight	2.35 lbs
UPC	632085080990
Part Number (PN)	8099
Switch Type	White Switches

Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Downloads

• Quick Guide (PDF)
• Owner's Manual (PDF)
