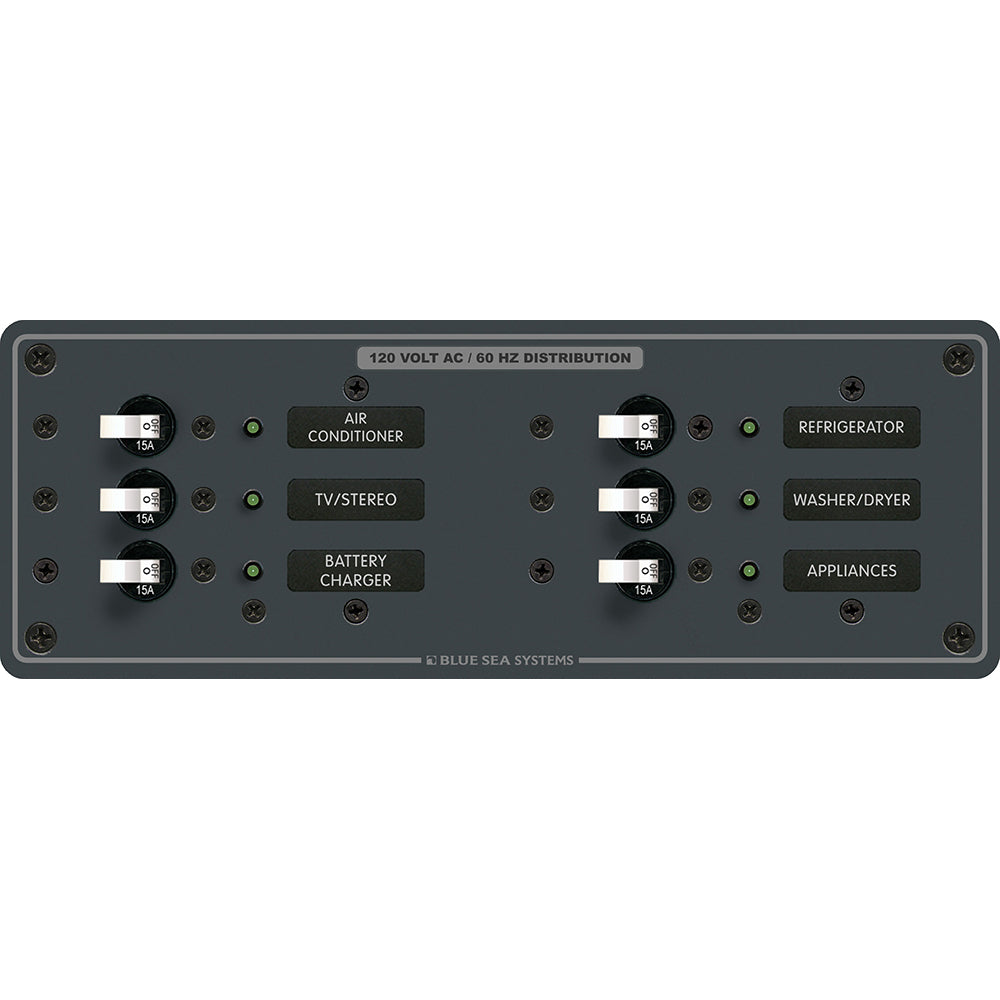

Blue Sea 8097 AC 6 Position Toggle Circuit Breaker Panel - White Switches

The 8097 AC 6 Position Toggle Circuit Breaker Panel in sleek white is the perfect solution for managing your boat's electrical systems. Designed for marine environments, this panel ensures reliable performance and easy monitoring of your vessel's power distribution.

Key Features

• Pre-wired with all hot, neutral, and safety ground buses for seamless installation
• Backlit circuit label positions on standard panels for enhanced visibility, no additional kit required
• Integrated "ON" LEDs in every circuit position for clear status indication
• Robust construction with a maximum panel amperage of 100 Amperes, suitable for demanding marine applications

Technical Specifications

Parameter	Details
Positions	6
Nominal Voltage	120V AC
Maximum Amperage	100A
Height	3.75"
Width	10.5"
Box Dimensions	5"H x 9"W x 12"L
Weight	2.4 lbs
UPC	632085080976

Included Components

• 6 x 7210 A-Series White Toggle Circuit Breakers - Single Pole 15A
• 1 x 8031 Basic AC Panel Label Set - 30 Labels
• 6 x 8034 LED Indicators - 120V AC Green

Marine-Grade Durability

Built to withstand the harsh conditions of marine environments, the 8097 AC Toggle Circuit Breaker Panel offers corrosion-resistant materials and reliable performance to keep your boat's electrical systems safe and efficient.

Easy Installation and Maintenance

With all necessary buses pre-installed and fully pre-wired, setting up your circuit breaker panel is straightforward. The backlit labels and integrated LEDs simplify monitoring and maintenance, ensuring that you can quickly identify and address any electrical issues on board.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
