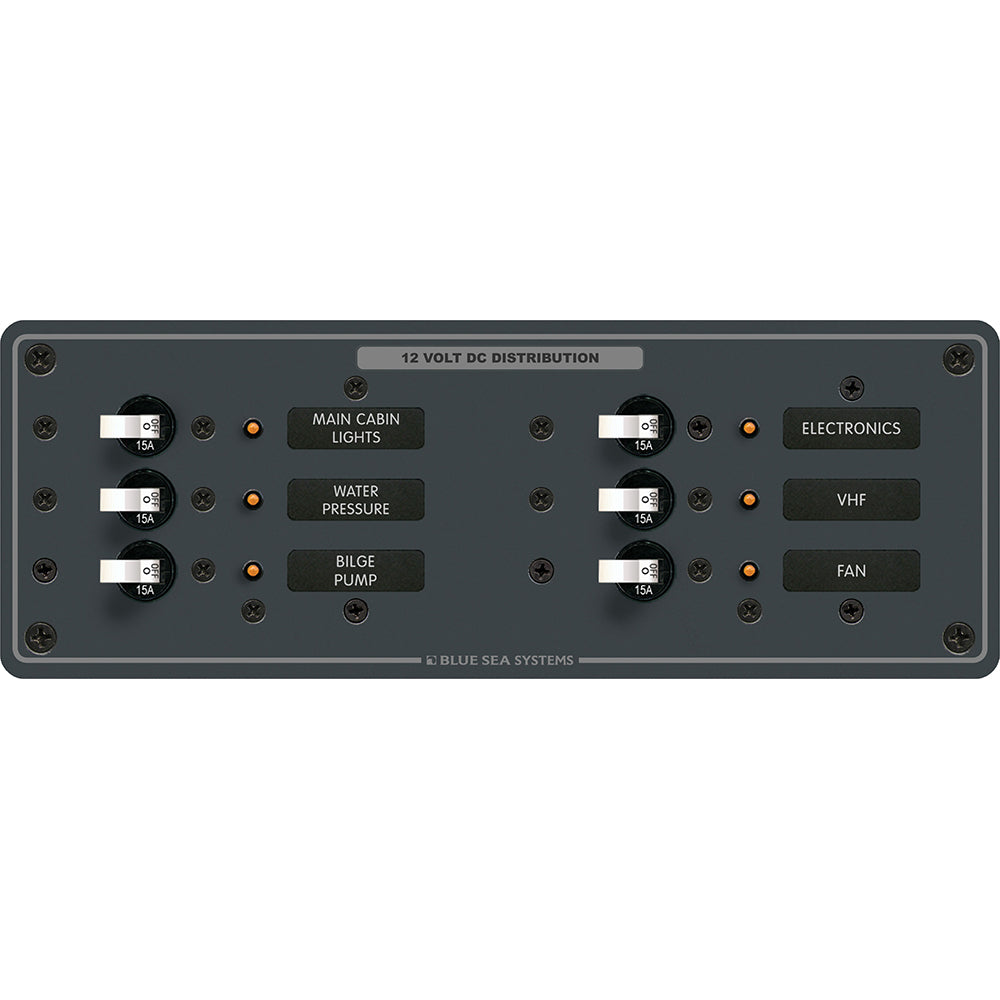

Blue Sea 8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches

Enhance your boat's electrical system with the 8096 DC 6 Position Toggle Branch Circuit Breaker Panel in sleek white switches. Designed specifically for marine applications, this pre-wired panel ensures reliable power distribution and easy management of your vessel's electrical circuits.

Features

• Fully pre-wired with all positive, negative, and grounding buses installed for seamless integration.
• Panels equipped with meters feature toggle switches, allowing for the mounting of up to 3 battery banks for versatile power management.
• Analog meter panels are owner upgradable to 24 Volts using the 8240 or 8243 DC meters, supporting 18-32V DC measurements.
• Backlit circuit label positions on standard panels eliminate the need for additional kits, ensuring easy visibility in all lighting conditions.
• Each circuit position is equipped with "ON" indicating LEDs for clear status indication.

Specifications

Parameter	Details
Positions	6
Nominal Voltage	12V/24V
Maximum Amperage	100A per bus
Dimensions	Height: 3.75" | Width: 10.5" | Depth: 2.5"
Weight	2.3 lbs
UPC	632085080969

What's Included

• (6) 7210 A-Series White Toggle Circuit Breakers - Single Pole 15A each
• (1) 8030 Basic DC Panel Label Set - 30 Labels

Additional Specifications

• Maximum Breaker Quantity: 6
• AC/DC Compatibility: DC
• Box Dimensions: 5"H x 9"W x 12"L

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Documentation

Owner's Manual (PDF)
