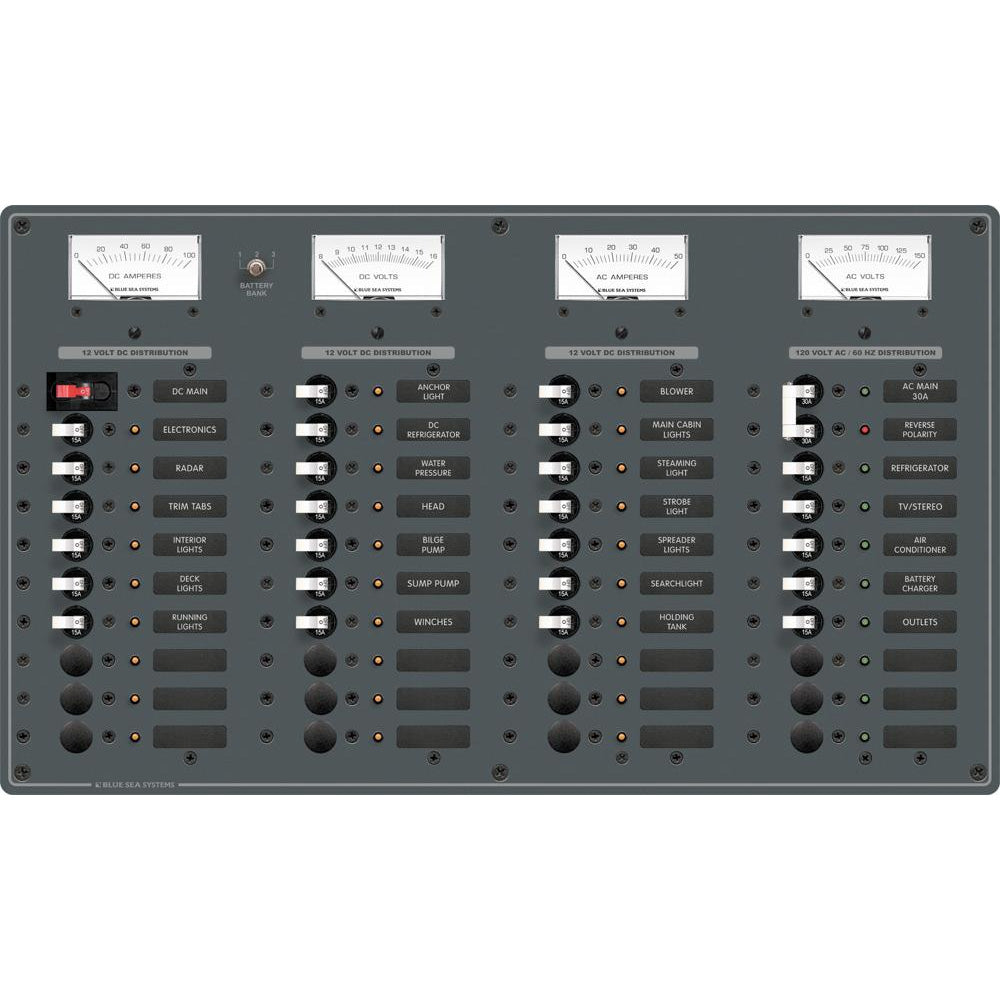

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches)

The PN:8095 Combined AC/DC Main Panel with White Switches is a versatile and reliable solution for managing your marine vessel's electrical systems. Featuring extensive pre-wiring, comprehensive labeling, and advanced monitoring tools, this panel ensures efficient power distribution and easy maintenance both onshore and offshore.

Key Features

• Includes a set of 30 common AC and 30 common DC labels for clear circuit identification
• All AC and DC buses installed and fully pre-wired for hassle-free setup
• Label backlighting pre-installed for enhanced visibility in various lighting conditions
• All LEDs installed, providing immediate status indicators
• Maximum Panel Amperage:
  • 100 Amperes DC
  • 50 Amperes AC

AC Features

• Red reverse polarity indicating LED for safety
• 9353, 0-150 Volt AC Voltmeter to monitor voltage levels
• 9630, 0-50 Amp AC Ammeter to measure current flow

DC Features

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter for precise voltage monitoring
• 8017, 0-100 Amp DC Ammeter to track current usage
• Upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter for future expansion

Specifications

Category	Details
AC Positions	Source Selectors +8
DC Positions	Main +29
Voltage	120 Volts AC / 12 Volts DC
Circuit Breakers	(1) 30A AC / (5) 15A AC (1) 100A DC / (20) 15A DC
Box Dimensions	7"H x 15"W x 22"L
Weight	8 lbs
UPC	632085080952

Note: Combined AC/DC panels require an AC Insulating Cover to meet ABYC Standards.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Information

• Max Breaker Quantity: 8 AC / 29 DC
• AC/DC: Both
• Voltage: 120V AC / 12V DC
• Box Dimensions: 7"H x 15"W x 22"L
• Weight: 8 lbs
• UPC: 632085080952

Download the Quick Guide (PDF)
