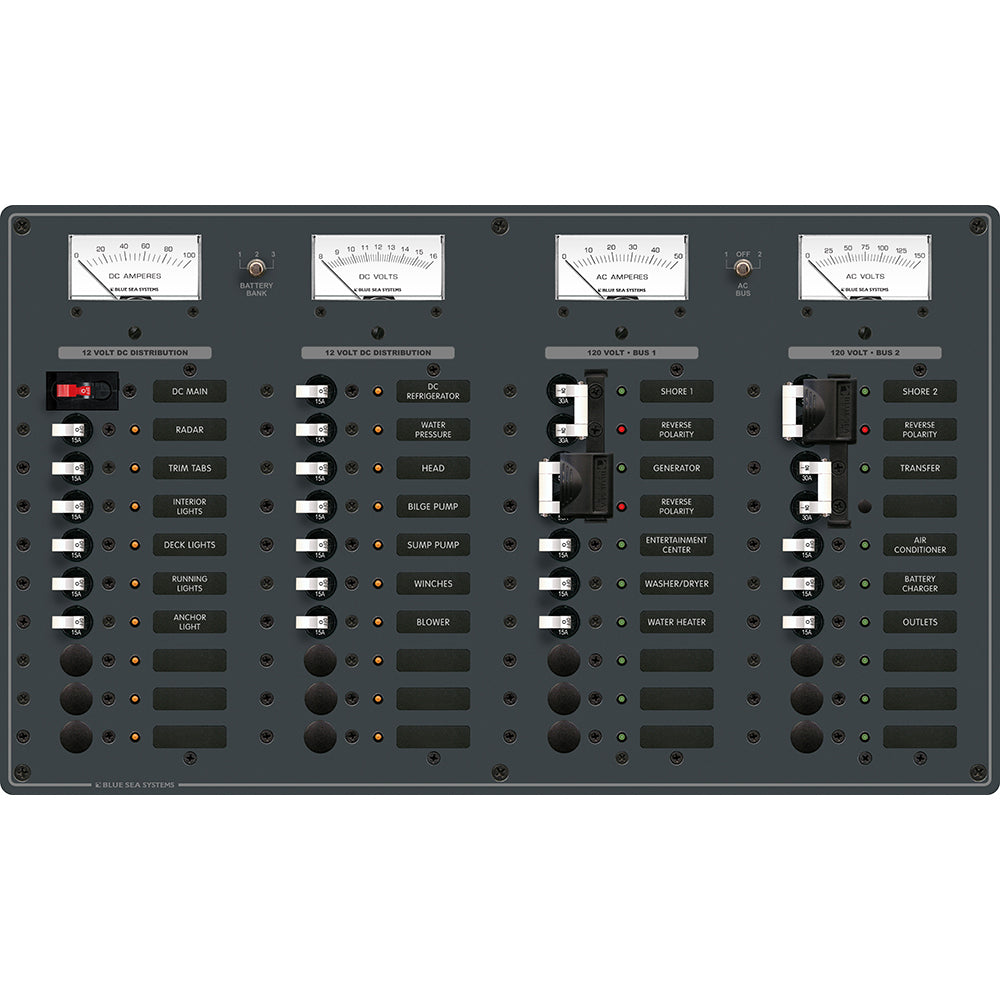

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Ensure your vessel's electrical system is robust and reliable with our 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel. Designed specifically for marine applications, this high-quality panel offers comprehensive power management with a sleek white switch design that complements any boat interior.

Key Features

• Comes with a complete set of 30 common AC and 30 common DC labels for easy identification.
• All AC and DC buses are installed and fully pre-wired, simplifying the installation process.
• Pre-installed label backlighting ensures visibility in low-light conditions, enhancing safety onboard.
• All LEDs are installed, providing clear indicators for circuit status.
• High amperage capacity for demanding marine electrical systems:
  • 100 Amperes DC
  • 50 Amperes AC

AC Features

• Two separate AC load groups with a transfer switch, allowing you to combine them into one load group as needed.
• Built-in switch enables Ammeter and Voltmeter to display readings from either AC load group, providing real-time monitoring.
• Reverse polarity indicators on both AC load groups to ensure correct electrical connections and prevent damage.
• Prepared for installation of the optional 4031 AC Isolation Cover for enhanced safety and compliance.
• Included Components:
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter

DC Features

• A robust 100 Amp C-Series circuit breaker provides main circuit protection and switching for all DC branch circuits.
• Included Components:
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter

Specifications

Feature	Details
AC Positions	Source Selectors +12
DC Positions	Main +19
Voltage	120V AC / 12V DC
Breaker Quantity	AC: (3) 30A, (1) 50A, (6) 15A DC: (1) 100A, (13) 15A
Box Dimensions	6"H x 15"W x 23"L
Weight	12.5 lbs
UPC	632085080860

*Combined AC/DC panels require an AC Insulating Cover to meet ABYC Standards.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
