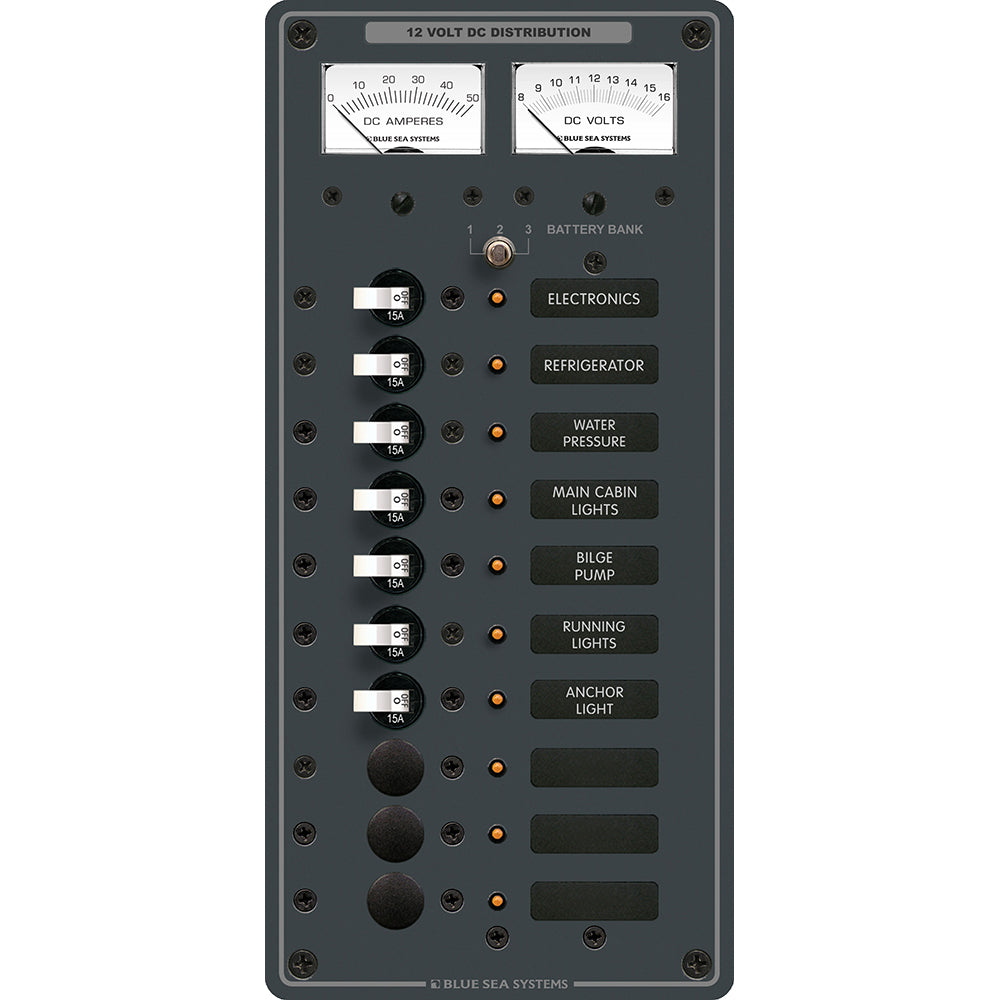

Blue Sea 8082 DC 10 Position Toggle Branch Circuit Breaker Panel

The 8082 DC 10 Position Toggle Branch Circuit Breaker Panel is an essential component for marine and boating electrical systems, providing reliable power management and protection for your vessel’s electrical circuits. Designed for easy installation and upgrade, this panel ensures your boat’s electrical system remains safe and efficient, allowing you to focus on enjoying your time on the water.

Key Features

• Completely pre-wired with all positive, negative, and grounding buses installed for seamless integration into your marine electrical system.
• Includes a set of 30 durable DC labels, specifically designed for marine environments, ensuring clear and long-lasting identification of circuits.
• Backlit labels for enhanced visibility in low-light conditions, crucial for nighttime navigation and operations.
• Fully installed LEDs provide visual indicators for each circuit status, allowing for quick and easy monitoring.
• Comprehensive installation instructions and a precise cutout template included, simplifying the setup process on your vessel.
• Equipped with an 8028, 8-16 Volt DC Micro Voltmeter to monitor your electrical system’s voltage levels.
• Features an 8041, 0-50 Amp DC Micro Ammeter for accurate current measurement and management.
• Owner-upgradeable to 24 Volts DC with the optional 8243, 10-32 Volt DC Micro Voltmeter, providing flexibility for varying power requirements.
• Includes seven 15A single pole circuit breakers, offering robust protection for up to ten separate circuits.

Specifications

Aspect	Details
Positions	10
Nominal Voltage	12V DC
Maximum Amperage	50A
Dimensions	Height: 11.25" | Width: 5.25" | Depth: 2.5"
Weight	3.35 lbs
UPC	632085080822

What's Included

• (7) 7210 A-Series White Toggle Circuit Breakers - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
• (1) 8041 DC Micro Ammeter - 0 to 50A with Shunt (Meter)

Additional Specifications

• Maximum Breaker Quantity: 10
• AC/DC: DC
• Voltage: 12V
• Box Dimensions: 5"H x 10"W x 13"L
• Weight: 3.3 lbs

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
