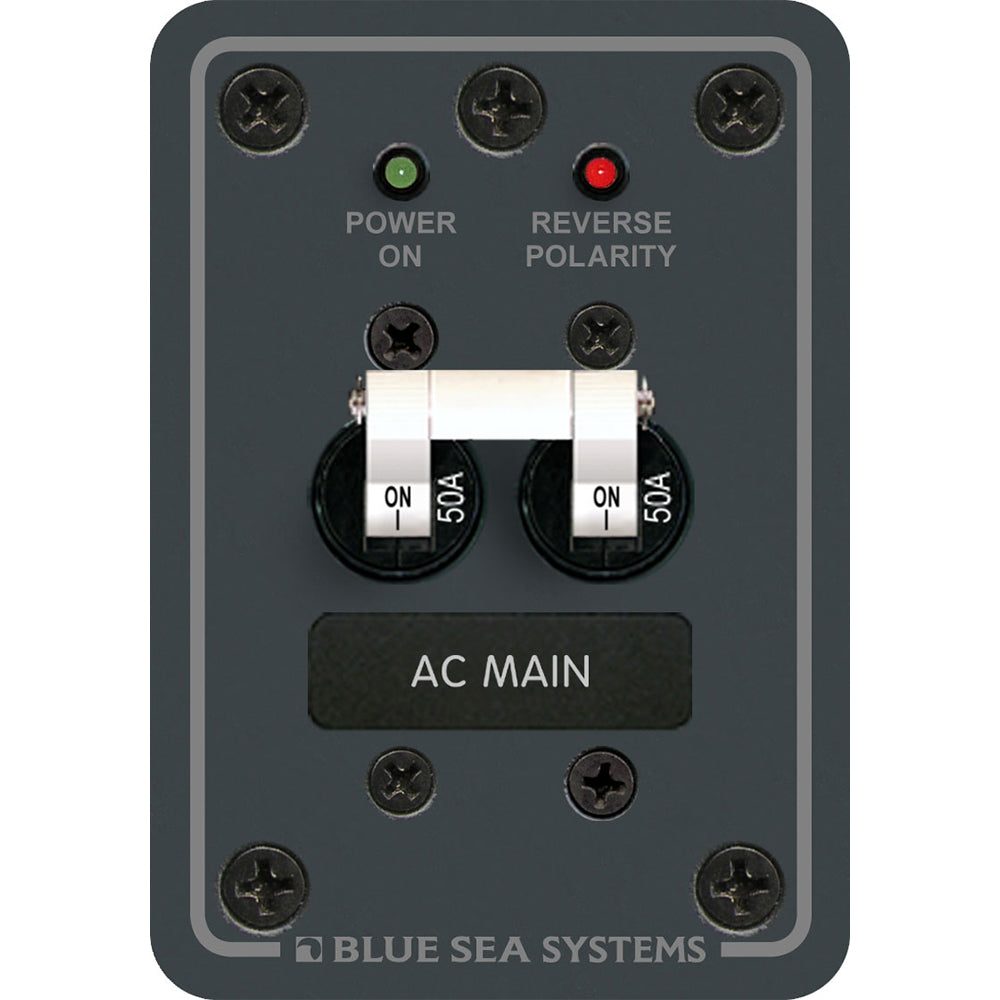

Blue Sea 8079 AC Main Only Circuit Breaker Panel - White Switches

Ensure the safety and efficiency of your marine electrical system with the 8079 AC Main Only Circuit Breaker Panel. Designed specifically for boating applications, this robust panel combines reliable circuit protection with convenient switching capabilities, providing seamless control over your vessel's electrical operations.

Features

• Red reverse polarity indicating LED for enhanced safety
• Safety ground screw located on the panel back for secure grounding
• Integrates switching and circuit protection into a single, compact device
• "Trip Free" design ensures the breaker cannot be held "ON" during fault current conditions, preventing potential electrical hazards

Specifications

Parameter	Details
Nominal Voltage	120V AC
Maximum Voltage	277V AC / 65V DC
Height	2.63"
Width	3.75"
Weight	0.51 lbs
AC/DC	AC
Max Breaker Quantity	1
Box Dimensions	3" H x 4" W x 7" L
UPC	632085080792

What's Included

• (1) 8034 LED - 120V AC Green
• (1) 8066 LED - 120V AC Red
• (1) 7242 A-Series White Toggle Circuit Breaker - Double Pole 50A (Main)

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Owner's Manual

For detailed installation and usage instructions, please refer to the Owner's Manual (PDF).
