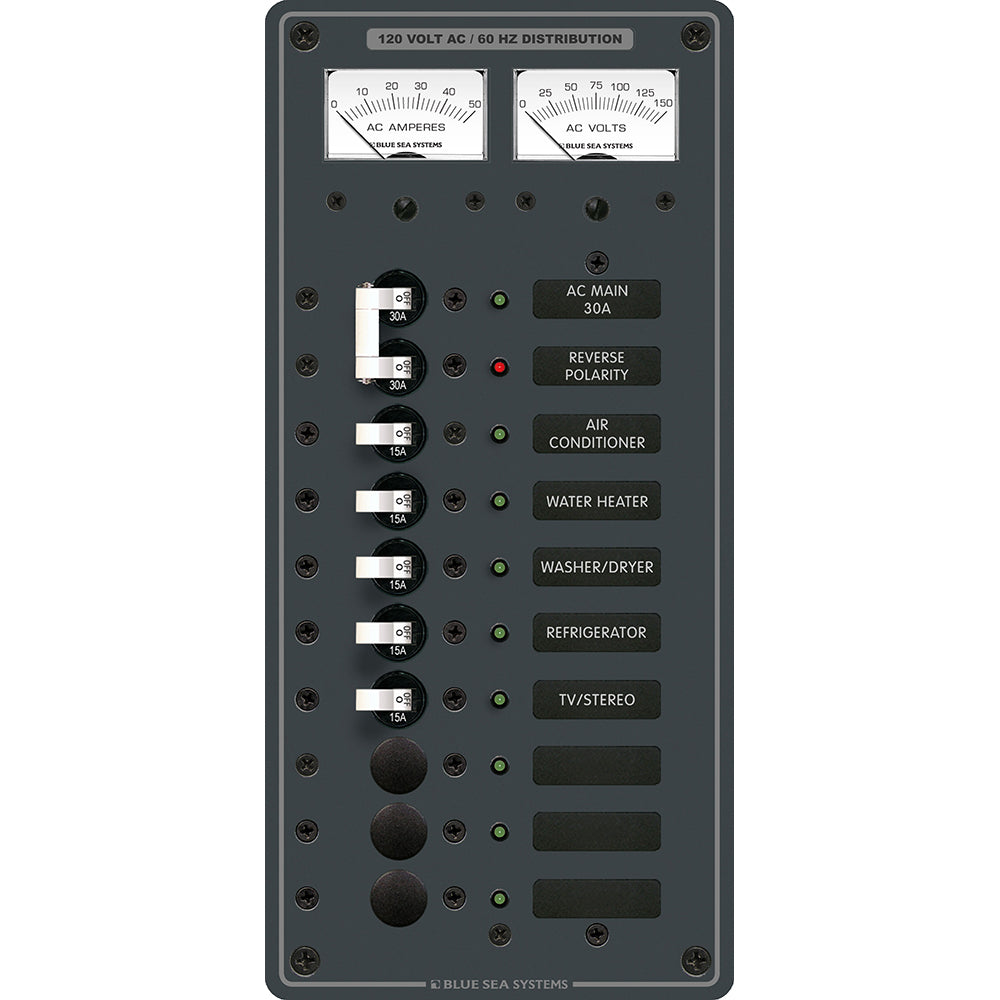

Blue Sea 8074 AC Main +8 Positions Toggle Circuit Breaker Panel - White Switches

Enhance the electrical management of your marine vessel with the 8074 AC Main +8 Positions Toggle Circuit Breaker Panel. Specifically engineered for boating applications, this durable panel ensures reliable control and protection for your boat's electrical systems, providing peace of mind on every voyage.

Features

• Red reverse polarity indicating LED for enhanced safety
• Pre-installed all hot, neutral, and safety ground buses, fully pre-wired for quick installation
• Label backlighting pre-installed for easy identification in low-light conditions
• Fully equipped with all necessary LEDs for system monitoring
• Integrated 9353, 0-150 Volt AC Voltmeter for accurate voltage readings
• Built-in 9630, 0-50 Amp AC Ammeter to monitor current flow
• Supports a maximum panel amperage of 50 Amperes, suitable for various marine electrical setups
• Includes 1 30A Double Pole Circuit Breaker and 5 15A Single Pole Circuit Breakers for versatile circuit protection
• Operates at 120 Volts, compatible with standard marine electrical systems

Specifications

AC/DC	AC
Maximum Breaker Quantity	8
Voltage	120V
Box Dimensions	5"H x 10"W x 13"L
Weight	3.3 lbs
UPC	632085080747

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
