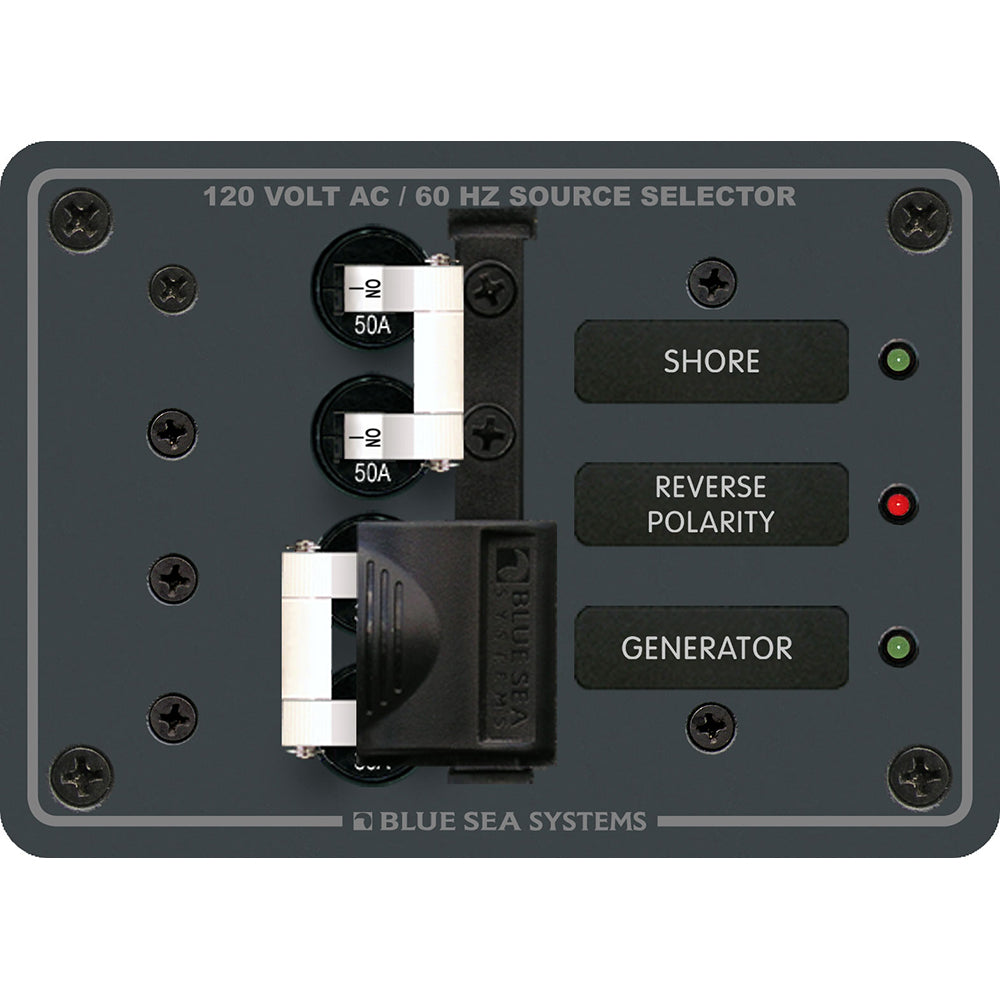

Blue Sea 8061 AC Toggle Source Selector 120V AC - 50AMP

The 8061 AC Toggle Source Selector 120V AC - 50AMP is designed to provide reliable and safe power management for your marine vessel. Whether you’re sailing or docking, this toggle selector allows seamless switching between two AC power sources, ensuring your boat's electrical system operates efficiently and securely.

Key Features

• Dual Pole Circuit Breakers: Features double pole AC main circuit breakers with an installed lockout slide to prevent accidental disconnection.
• Source Isolation: Designed to prevent the simultaneous connection of both AC sources, safeguarding your marine electrical system from overloads.
• High Capacity: Supports up to 50 Amperes of panel amperage, making it suitable for a wide range of marine applications.
• Polarity Protection: Equipped with a red reverse polarity indicating LED to alert you of incorrect wiring.
• Pre-Wired Installation: Comes with all hot, neutral, and safety ground buses installed and fully pre-wired for easy setup on your boat.
• Backlit Labels: Circuit label positions are backlit on standard panels, eliminating the need for additional kits and enhancing visibility.
• LED Indicators: "ON" indicating LEDs in all circuit positions provide clear operational status at a glance.

Specifications

Model	8061 AC Toggle Source Selector
Source Selection	2
Nominal Voltage	120V AC
Maximum Panel Amperage	50 Amperes
Height	3.75"
Width	5.25"
Product Weight	1.84 lbs
Box Dimensions	5"H x 7"W x 9"L
Box Weight	1.4 lbs
UPC	632085080617

What’s Included

• 2 x 7242 A-Series White Toggle Circuit Breakers - Double Pole 50A
• 1 x 8031 Basic AC Panel Label Set - 30 Labels
• 1 x 8034 LED - 120V AC Green
• 1 x 8066 LED - 120V AC Red

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Installation and Documentation

The 8061 AC Toggle Source Selector is designed for straightforward installation on your marine electrical system. Pre-wired components and backlit labels simplify setup, while LED indicators provide clear operational feedback. For detailed instructions, refer to the Owner's Manual (PDF).
