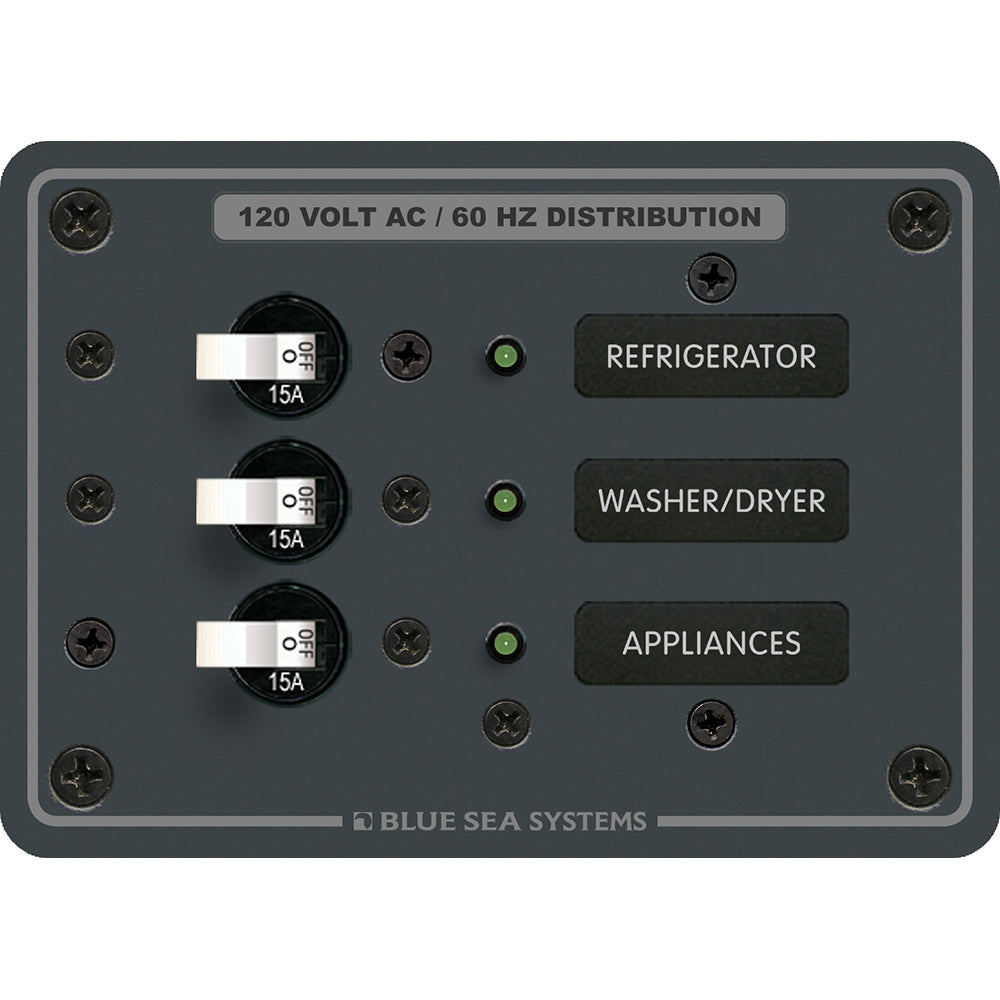

Blue Sea 8058 AC 3 Position Toggle Circuit Breaker Panel - White Switches

The 8058 AC 3 Position Toggle Circuit Breaker Panel with white switches is engineered for marine and boating applications, offering a dependable and efficient solution for managing your vessel's electrical circuits.

Features

• Fully pre-wired with all hot, neutral, and safety ground buses installed for quick and easy installation
• Backlit circuit labels on all standard panel positions for clear visibility in low-light conditions – no additional kit required
• LED indicators installed in all circuit positions to clearly display "ON" status
• Supports a maximum panel amperage of 100 Amperes, suitable for a wide range of marine electrical needs

Specifications

Positions	3
Nominal Voltage	120V AC
Maximum Amperage	100A
Height	3.75"
Width	5.25"
Box Dimensions	5"H x 7"W x 9"L
Weight	1.2 lbs
UPC	632085080587
AC/DC	AC
Max Breaker Quantity	3
Voltage	120V

What's Included

• 3 x 7210 A-Series White Toggle Circuit Breakers - Single Pole 15A each
• 1 x 8031 Basic AC Panel Label Set - 30 Labels
• 3 x 8034 LED Indicators - 120V AV Green

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
