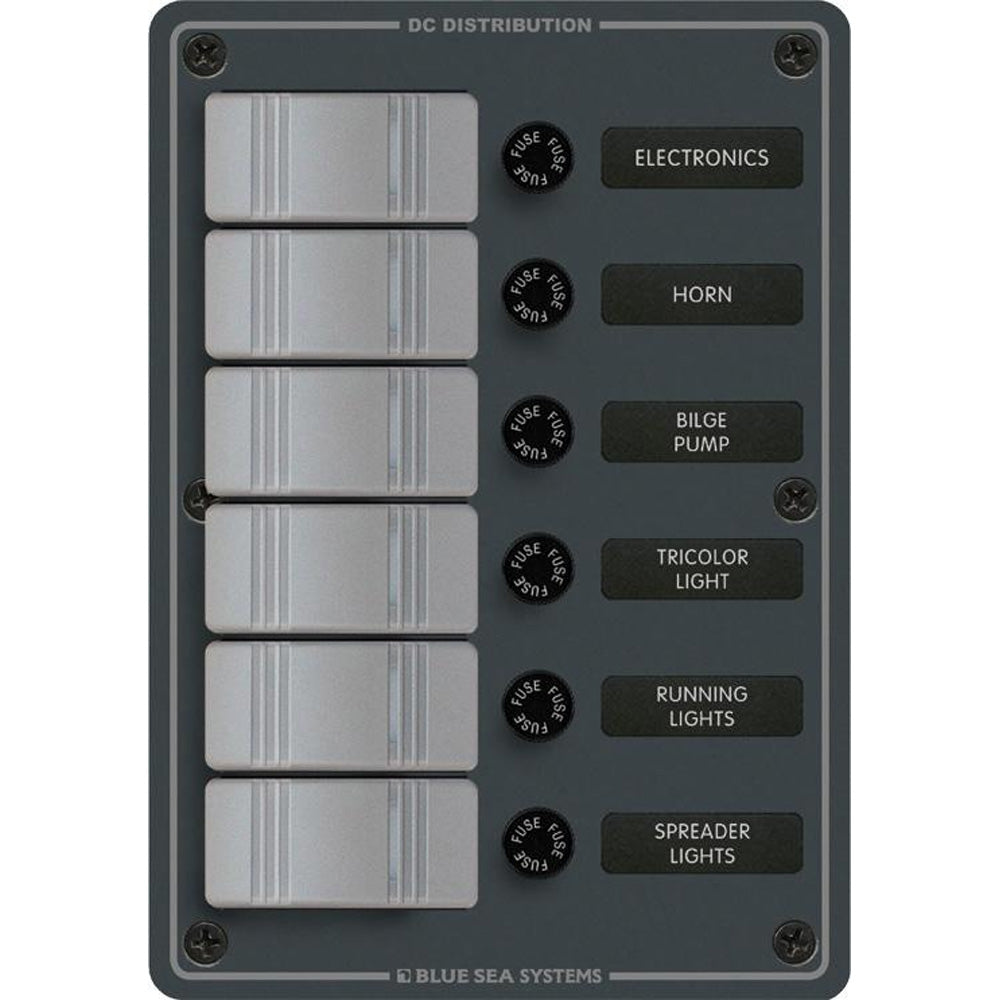

Blue Sea 8053 Slate Grey - 6 Position - Vertical

The 8053 Slate Grey Vertical 6-Position Panel is the perfect solution for managing multiple electrical circuits on your vessel. Designed specifically for marine and boating applications, this robust panel ensures reliable performance in any marine environment.

Key Features

• Withstands water exposures typically encountered in above-deck applications, including salt spray, rain, hose washdowns, and momentary immersions.
• Optimally designed for flybridge and open cockpit configurations.
• Equipped with ON-OFF Contura switches for easy operation.
• ON indicating LEDs are embedded in each switch for clear status visibility.
• Includes a watertight mounting gasket to ensure secure and dry installation.
• Countersunk mounting holes are provided throughout for a flush and professional finish.
• Finished with a two-part polyurethane slate gray coating for enhanced durability and aesthetics.
• Meets industry-standard height and width for compatibility with most marine setups.
• Undergoes Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion.
• Completely wired and ready for installation, simplifying the setup process.

Specifications

Feature	Details
Weatherproof	Water Resistant
Positions	6
Nominal Voltage	12V / 24V DC
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC / 15A @ 24V DC
Height	7.5"
Width	5.25"
Depth	3"
AC/DC	DC
Max Breaker Quantity	6
Box Dimensions	7"H x 10"W x 10"L
Weight	5.6 lbs
UPC	632085080532

What's Included

• (6) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (6) 8230 Contura Switch SPST Gray - OFF-ON

Note: Waterproof panel labels are not backlit.

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
