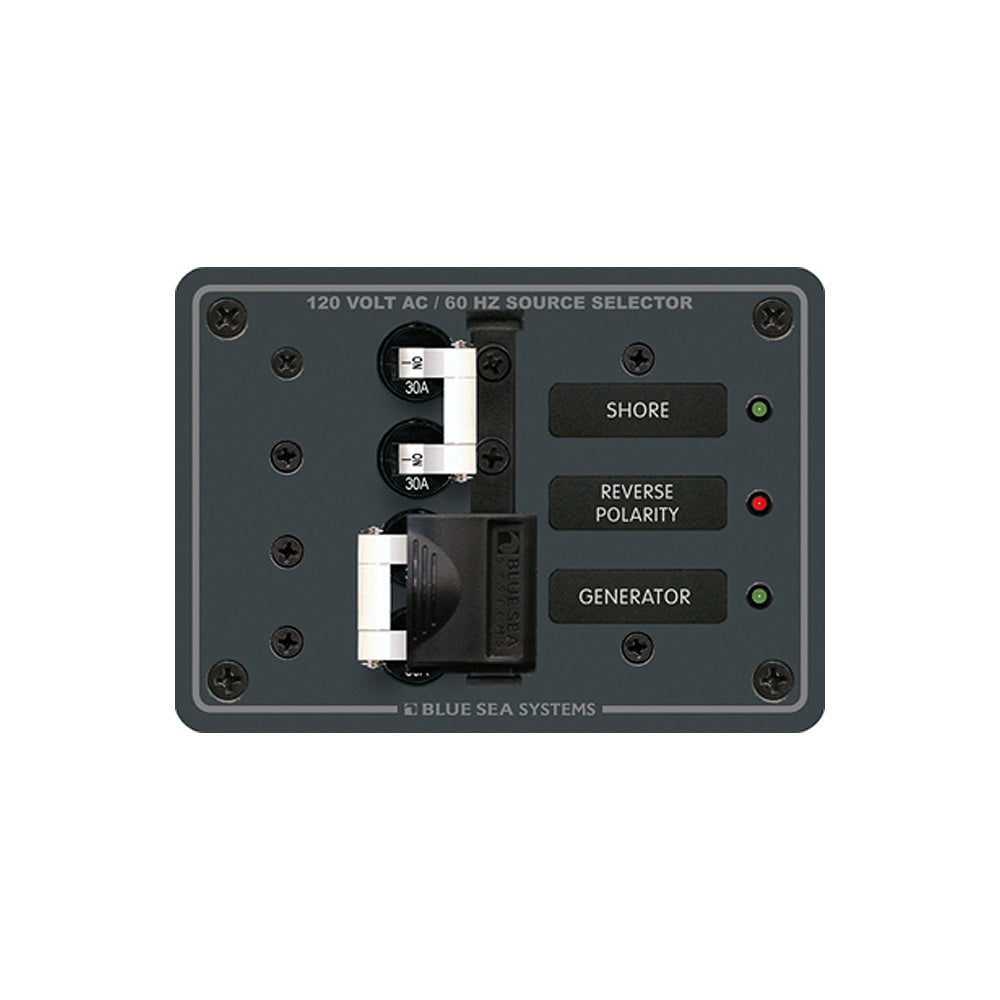

Blue Sea 8032 AC Toggle Source Selector 120V AC - 30AMP - White Switches

The 8032 AC Toggle Source Selector is an essential component for marine and boating electrical systems, providing reliable control and safety for dual 120V AC power sources. Designed to handle up to 30 Amperes, this white switch ensures seamless switching between power sources, enhancing the safety and efficiency of your vessel's electrical setup.

Key Features

• Double pole AC main circuit breakers with an installed lockout slide for added safety.
• Prevents the simultaneous connection of both AC sources, avoiding potential overloads.
• Supports a maximum panel amperage of 50 Amperes, suitable for various marine applications.
• Red reverse polarity indicating LED enhances safety by alerting to incorrect wiring.
• Fully pre-wired with all hot, neutral, and safety ground buses installed for easy installation.
• Backlit circuit label positions on standard panels eliminate the need for additional kits.
• "ON" indicating LEDs installed in all circuit positions for clear visibility.

Technical Specifications

Specification	Details
Source Selection	2
Nominal Voltage	120V AC
Amperage	30A
Maximum Panel Amperage	50 Amperes
Dimensions	Height: 3.75" | Width: 5.25"
Box Dimensions	5"H x 7"W x 9"L
Weight	1.4 lbs
UPC	632085080327

What's Included

• (2) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A
• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (2) 8034 LED - 120V AC Green
• (1) 8066 LED - 120V AC Red

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Installation and Use

The 8032 AC Toggle Source Selector is designed for easy installation in marine electrical panels. Its pre-wired configuration allows for quick setup, minimizing downtime on your vessel. The backlit labels and "ON" LEDs provide clear visibility in low-light conditions common on boats, ensuring you can easily identify and control power sources while navigating or docked.

Why Choose the 8032 AC Toggle Source Selector?

Designed specifically for the demanding marine environment, this toggle selector switch offers durability and reliability. Its ability to prevent simultaneous connection of power sources protects your electrical system from damage, while the lockout slide ensures that the system remains secure during operation. Whether you're upgrading your boat's electrical panel or installing a new system, the 8032 AC Toggle Source Selector is a dependable choice for marine professionals and enthusiasts alike.
