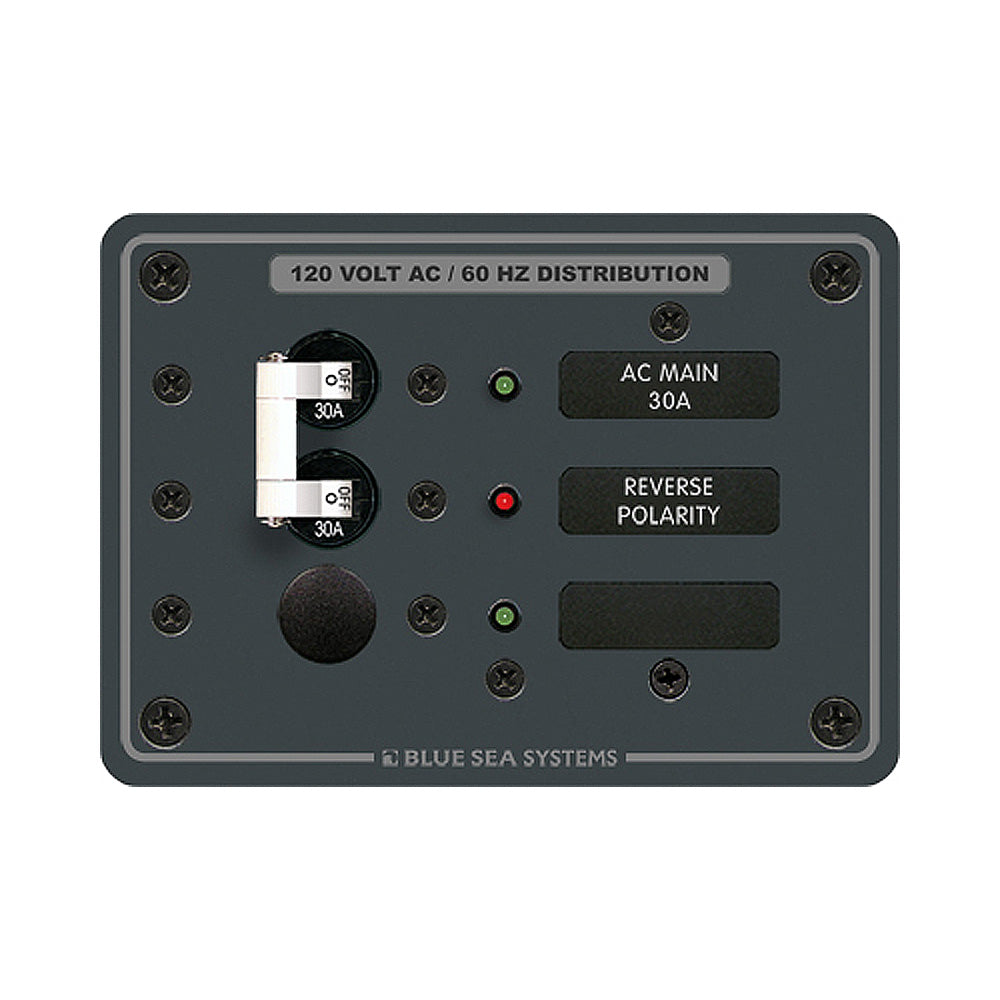

Blue Sea 8029 AC Main +1 Position Breaker Panel - White Switches

The 8029 AC Main +1 Position Breaker Panel with White Switches is an essential component for your boat's electrical system, providing reliable control and enhanced safety tailored for marine environments. Designed to withstand the unique demands of boating, this breaker panel ensures your vessel's circuits are efficiently managed and protected.

Marine-Grade Features

• Red reverse polarity indicating LED for immediate visual alerts
• Fully pre-wired with all hot, neutral, and safety ground buses installed, simplifying installation
• Backlit circuit label positions on standard panels for improved visibility in all lighting conditions – no additional kit required
• "ON" indicating LEDs installed in all circuit positions for easy status monitoring

Technical Specifications

Feature	Details
Positions	1
Nominal Voltage	120V AC
AC/DC	AC
Max Breaker Quantity	1
Box Dimensions	5" H x 7" W x 9" L
Height	3.75"
Width	5.25"
Weight	1.1 lbs
UPC	632085080297

Included Components

• (2) 8034 LED – 120V AC Green
• (1) 8066 LED – 120V AC Red
• (1) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A (Main)
