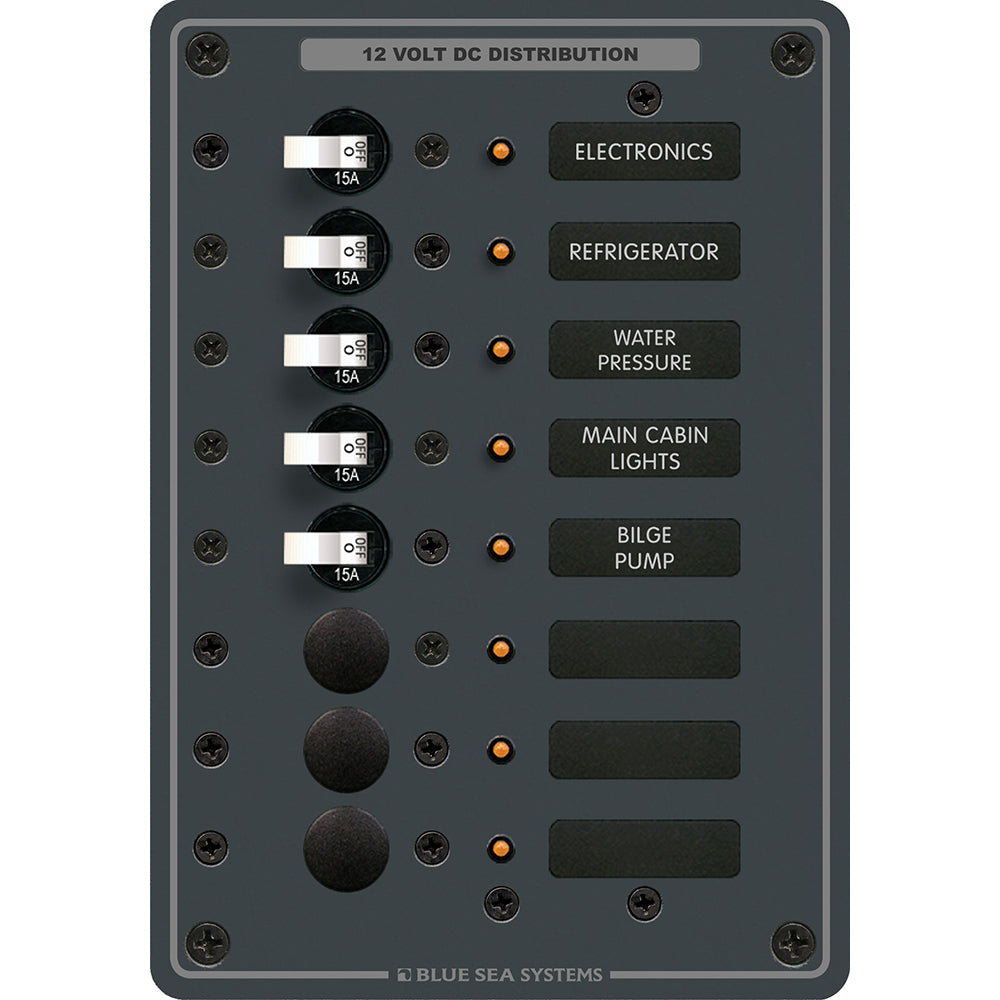

Blue Sea 8023 DC 8 Position Circuit Breaker - White Switches

Enhance your boat's electrical system with the reliable and versatile 8023 DC 8 Position Circuit Breaker. Designed specifically for marine applications, this circuit breaker ensures optimal performance and safety for all your boating electrical needs.

Key Features

• Fully pre-wired with all positive, negative, and grounding buses installed for ease of setup.
• Equipped with toggle switches on panels that include meters, allowing the mounting of up to three battery banks.
• Analog meter panels are upgradeable to 24 Volts using the 8240 or 8243 meters (compatible with 18-32V DC).
• All circuit label positions are backlit on standard panels, eliminating the need for additional kits.
• Integrated "ON" indicator LEDs in all circuit positions for clear status visibility.

Specifications

Number of Positions	8
Nominal Voltage	12V / 24V DC
Maximum Amperage	100A
Dimensions	Height: 7.5" | Width: 5.25"
Weight	2 lbs
UPC	632085080235

Included in the Package

• 5 x 7210 A-Series White Toggle Circuit Breakers - Single Pole 15A each
• 1 x 8030 Basic DC Panel Label Set - 30 Labels

Additional Specifications

• Maximum Breaker Quantity: 8
• Power Type: DC
• Voltage Options: 12V / 24V
• Box Dimensions: 5"H x 7"W x 12"L

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Owner's Manual

For detailed installation instructions and operational guidelines, please refer to the Owner's Manual (PDF).
