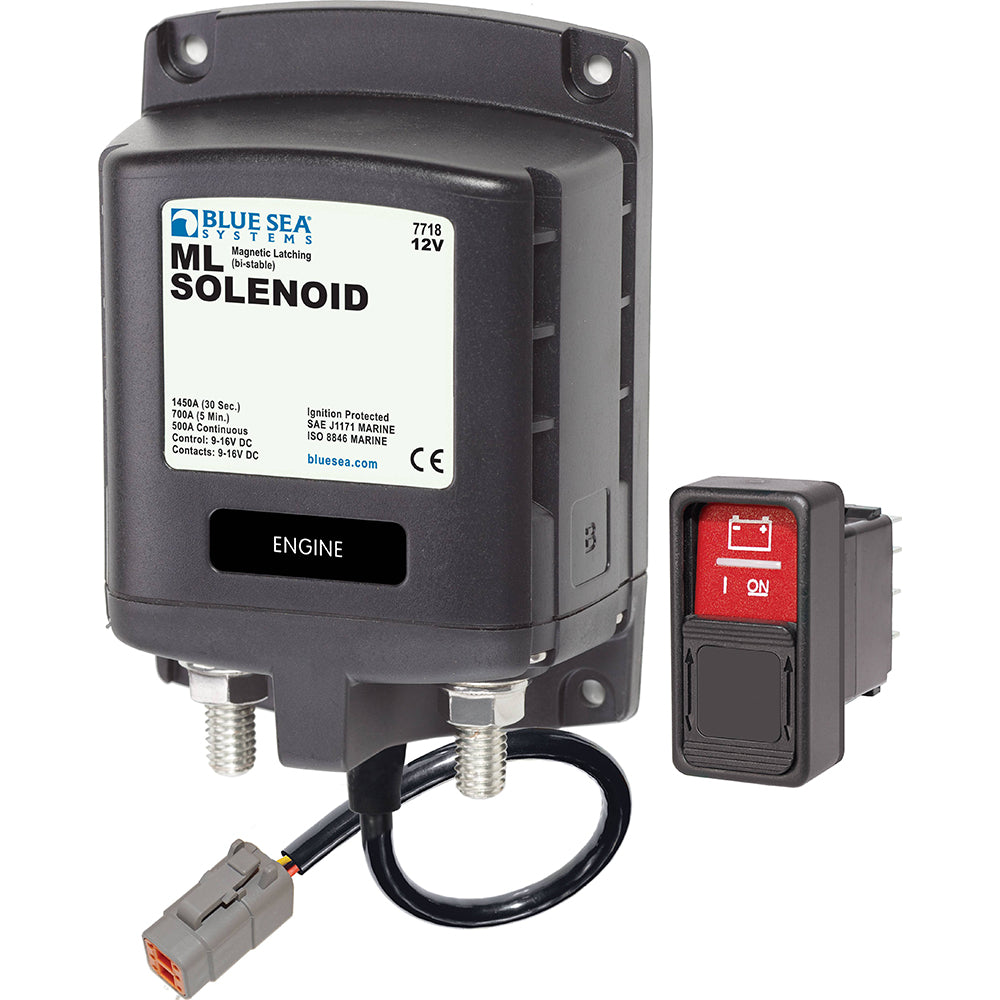

Blue Sea 7718100 - ML-Series Solenoid Switch - Deutsch Connector - 12V

Enhance your marine electrical system with the ML-Series Solenoid Switch, designed specifically for boating applications requiring reliable and efficient control. This solenoid switch emulates a normally open relay, ensuring lower current draw while maintaining consistent performance in demanding marine environments.

Key Features

• Silver alloy contacts deliver high reliability for switching live marine loads
• Integrated LED indicator allows for remote monitoring of switch status
• 3/8" - 16 tin-plated copper studs ensure maximum conductivity and resistance to corrosion from harsh marine conditions
• One-piece stainless steel flange nuts provide secure and safe connections, vital for marine safety
• Label recesses facilitate easy circuit identification, aiding in quick maintenance and troubleshooting

Technical Specifications

Specification	Details
Control Circuit Voltage	10.1 to 16.5 V DC
Control Circuit Connection	Deutsch DTM
Nominal Voltage	12V DC
Coil Function	Auto-releasing
Amperage Operating Current	OFF - 8mA and ON - 13mA
Mechanical Endurance	100,000 Cycles
Terminal Ring Diameter Clearance	1.18" (30mm)
Terminal Stud Length	0.875" (22mm)
Terminal Stud Size	3/8" - 16 (M10)

Included in the Package

• ML-Series 7718100 Solenoid Switch
• Contura Switch with integrated LED for easy status monitoring
• Comprehensive Instruction Manual to guide installation and usage

Note: This product is sold individually.
