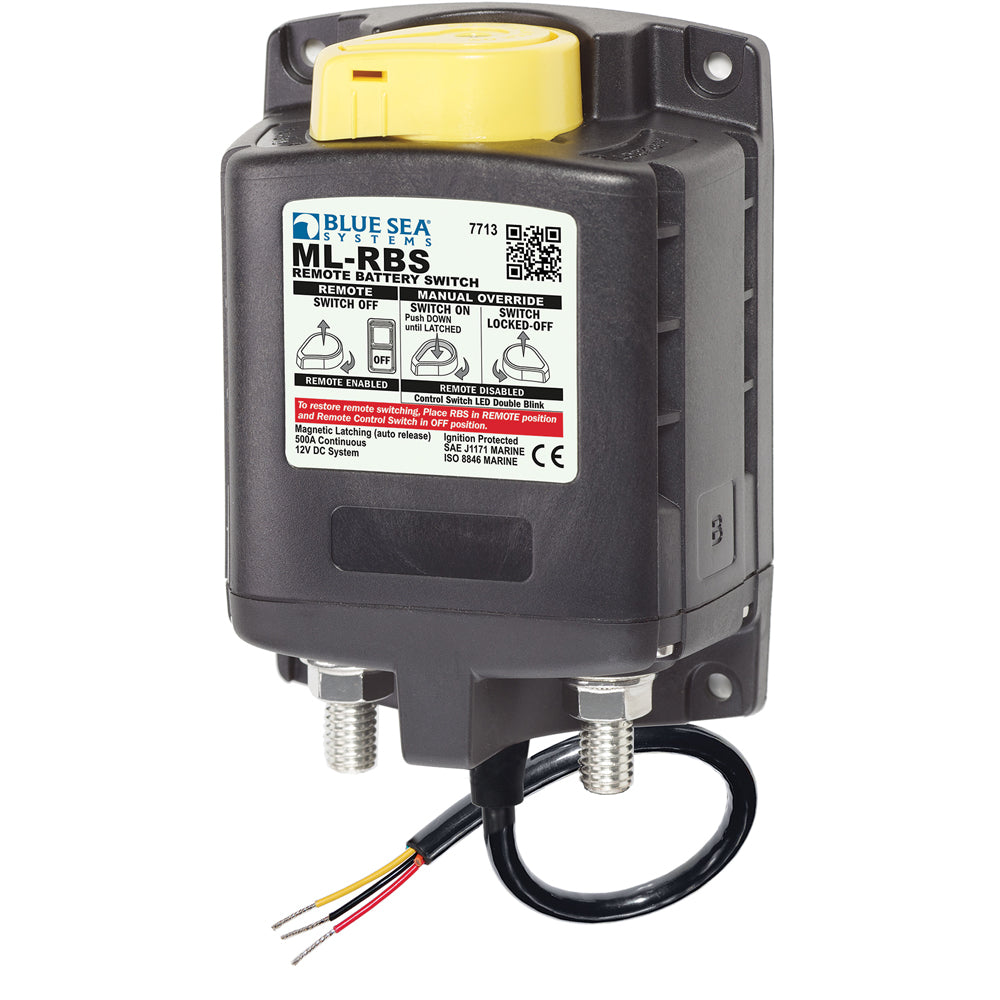

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V
Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The ML-RBS Remote Battery Switch with Manual Control Auto-Release is a robust and reliable solution tailored for marine and boating applications. Designed to manage your vessel's electrical systems efficiently, this 12V DC switch ensures seamless power control, enhanced safety, and long-term durability even in the harshest marine environments.
Features

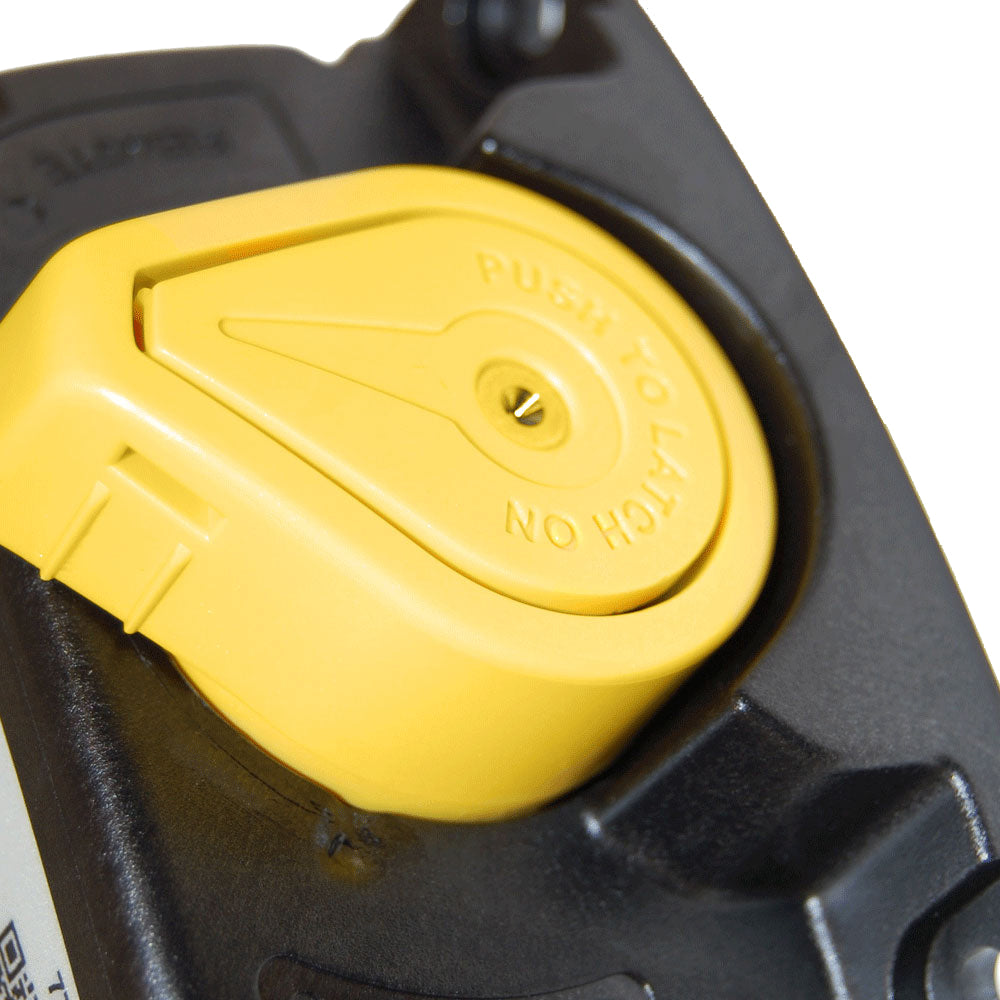

- Manual Override Knob: Provides an additional layer of safety by allowing control regardless of power status and enabling a LOCKED OFF state for maintenance and servicing.
- LED Output Indicator: Remotely display the switch's state with an optional LED, allowing easy monitoring of your system.
- High-Quality Studs: Equipped with 3/8"-16 tin-plated copper studs ensuring maximum conductivity and corrosion resistance, perfect for marine conditions.
- Flexible Cable Terminals: The 7/8" (22mm) stud length accommodates multiple cable sizes, providing versatility in your wiring setup.
- Label Recesses: Facilitate easy identification of circuits, simplifying maintenance and troubleshooting.
- Silver Alloy Contacts: Deliver high reliability for switching live loads, ensuring consistent performance under demanding marine use.
Auto Releasing ML-Series Remote Battery Switch
The Auto Releasing ML-Series Remote Battery Switch enhances the standard ML Remote Battery Switch features by offering 500A switching capacity. It provides flexible control options with SPST or SPDT switches, making it ideal for setups requiring a normally open relay.
Technical Specifications
| Feature | Specification |
|---|---|
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Coil Function | Auto Releasing |
| Mounting Size | #10 |
| Amperage Operating Current | 8mA when OFF / 13mA when ON |
| Amperage Operating Current (State Change) | <7A (40 ms) |
| Control Circuit Voltage | 10.1 to 16.5V DC |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating | 10 sec at 2500A / 1 min at 1100A |
| Operating Temperature Range | -10°C to 50°C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC, 10,000 Cycles |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Switching Cycles | 100,000 |
| Terminal Ring Diameter Clearance | 1.18" (29.97mm) |
| Terminal Stud Length | 0.875" (22.23mm) |
| Terminal Stud Size | 3/8-16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Weight | 1.75lb (0.79 kg) |
| Lockable | Yes |
| Box Dimensions | 3"H x 7"W x 12"L |
| Overall Weight | 2.1 lbs |
| UPC | 632085077129 |
