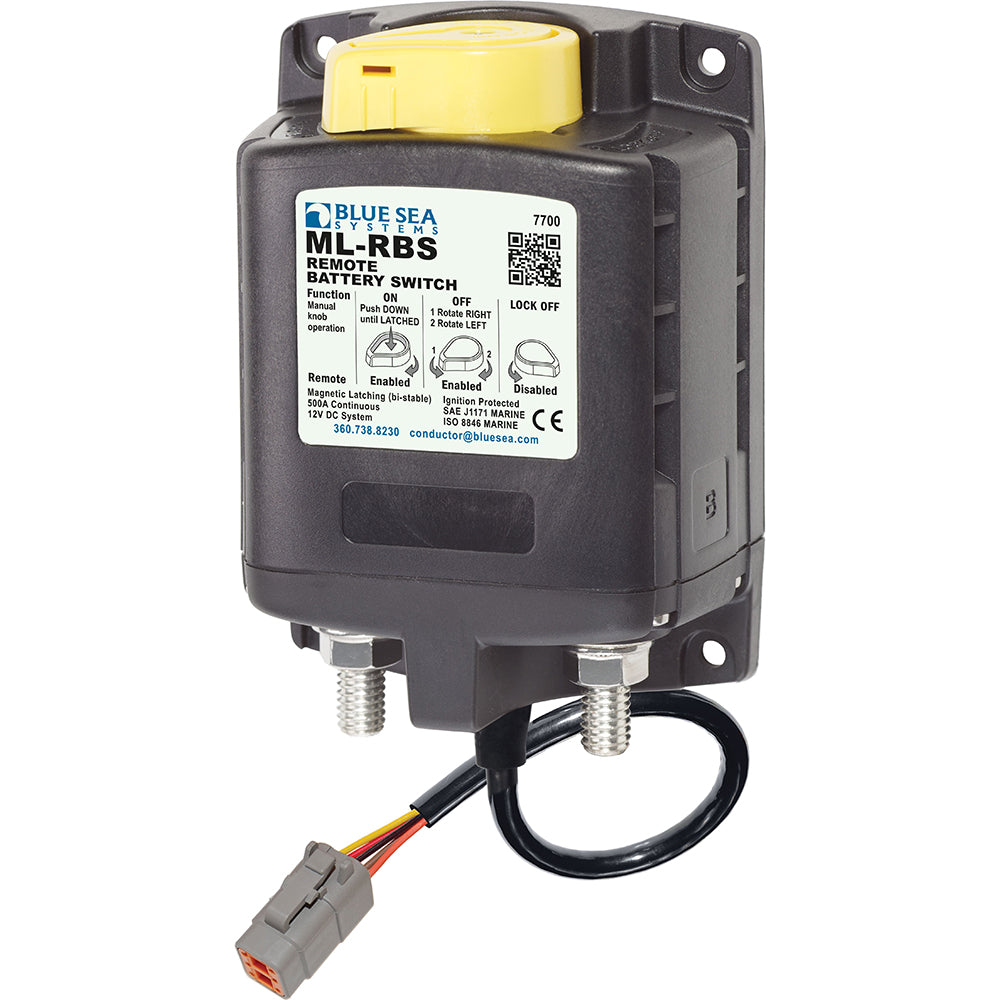

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control Deutsch Connector

The 7700100 ML Solenoid 12V 500A is a robust and reliable solution designed specifically for marine and boating applications. This high-performance magnetic latching switch ensures seamless high amperage switching under load, whether you're controlling it manually or remotely from your vessel's control panel.

Key Features

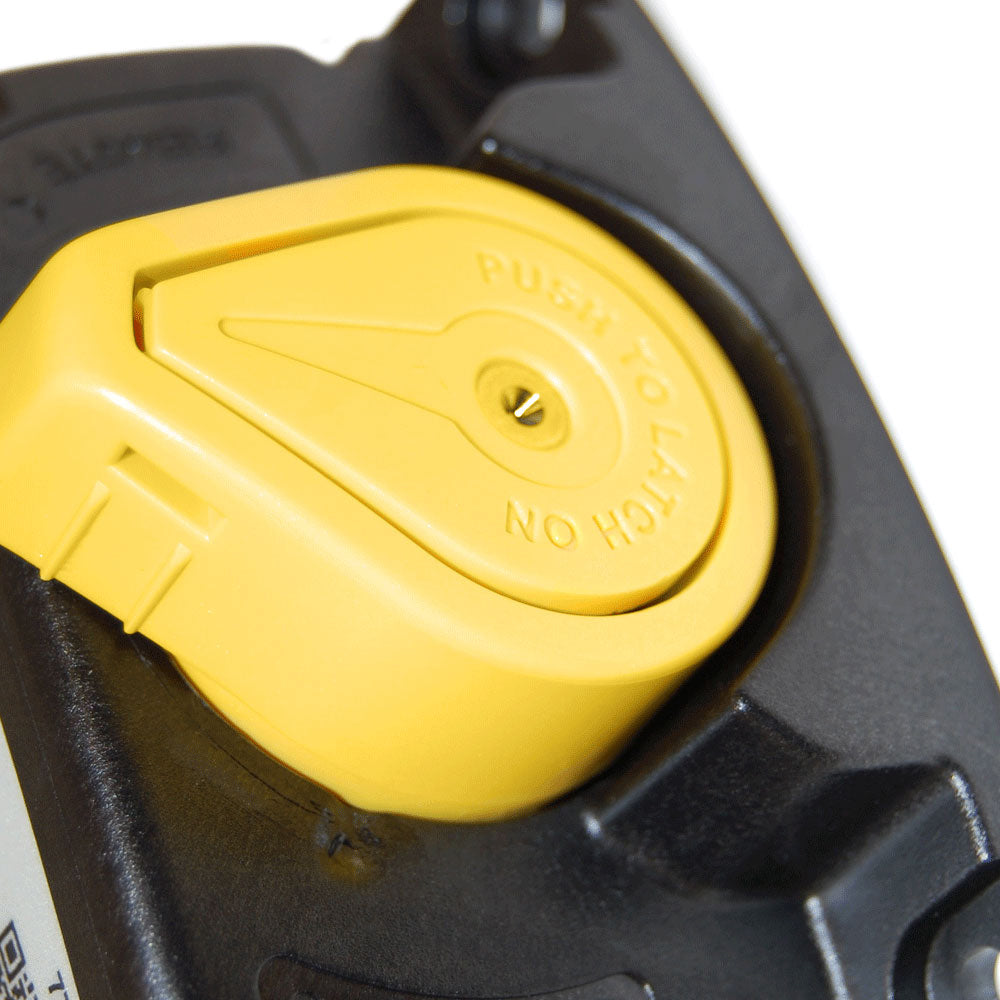

• Manual Override Knob: Provides an additional layer of safety, allowing you to control the switch with or without power. It also offers a LOCKED OFF capability for safe servicing.
• LED Output: Enables remote indication of the switch state. (Optional LED required)
• Premium Connectivity: Equipped with 3/8"-16 tin-plated copper studs, ensuring maximum conductivity and resistance to corrosion in harsh marine environments.
• Extended Stud Length: Features a 7/8" (22 mm) stud length, accommodating multiple cable terminals for versatile installations.
• Convenient Label Recesses: Allows for easy circuit identification, simplifying maintenance and troubleshooting.
• Durable Silver Alloy Contacts: Guarantee high reliability for switching live loads, ensuring consistent performance even in demanding marine settings.

Technical Specifications

Specification	Details
Control Circuit Connection	Deutsch DTM
Nominal Voltage	12VDC
Coil Function	Bi-Stable
Mounting	#10
Amperage Operating Current Continuous	0mA
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 Seconds	1450A DC
Cable Size to Meet Ratings	2x (4/0)
Live Current Switching	300A@12VDC
Master Control Switch Capability	No
Mechanical Endurance	100,000 Cycles
Terminal Ring Diameter Clearance	1.18" (29.97 mm)
Terminal Stud Length	0.875" (22.23 mm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	1.75lb (0.79 kg)

Marine-Grade Reliability

Designed to withstand the harsh conditions of marine environments, the 7700100 ML Solenoid 12V 500A ensures long-lasting performance and dependable operation. Its corrosion-resistant materials and high-quality construction make it an ideal choice for boats, yachts, and other marine vessels requiring reliable electrical switching solutions.

Safety and Compliance

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
