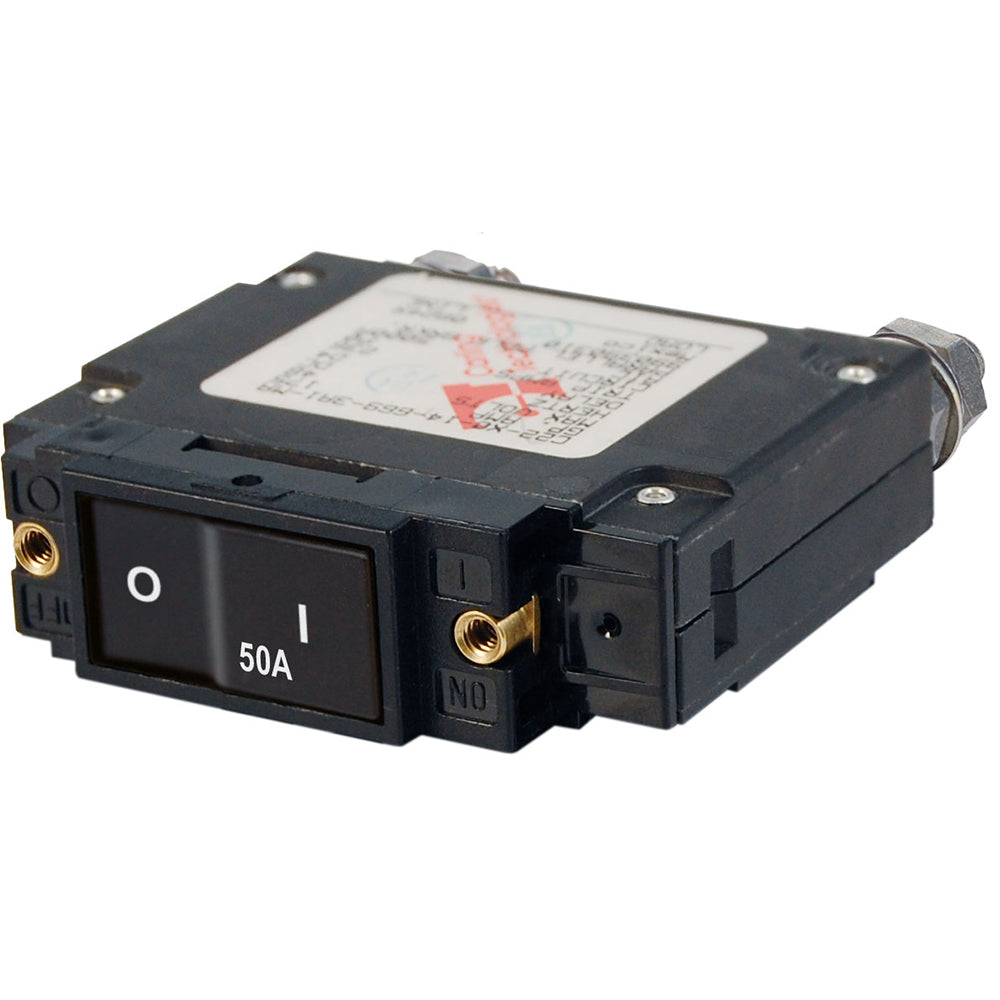

Blue Sea 7546 C-Series Flat Rocker Circuit Breaker - Single Pole - 50A

Ensure the safety and reliability of your marine electrical systems with our C-Series Flat Rocker Circuit Breaker. Designed specifically for marine and boating applications, this single pole 50A breaker provides robust overcurrent protection for essential equipment like inverters, bow thrusters, and windlasses, combining switching and protection in one durable device.

Key Features

• The flat rocker actuator remains flush in the "ON" position, preventing accidental switching
• Color-coded actuator clearly indicates the "OFF" position for easy monitoring
• Provides dependable overcurrent protection tailored for marine inverters, bow thrusters, and windlasses
• Integrates both switching and circuit protection into a single, compact device
• "Trip Free" mechanism ensures the breaker cannot be held closed after tripping, enhancing safety
• Ignition protected, making it safe for installation on gasoline-powered boats

Technical Specifications

Parameter	Specification
Amperage	50A AC / 50A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Operating Temperature Range	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10,000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.38 lb (0.17 kg)

Additional Specifications

• Box Dimensions: 2" H x 2" W x 4" L
• Weight: 0.4 lbs
• UPC: 632085075460
