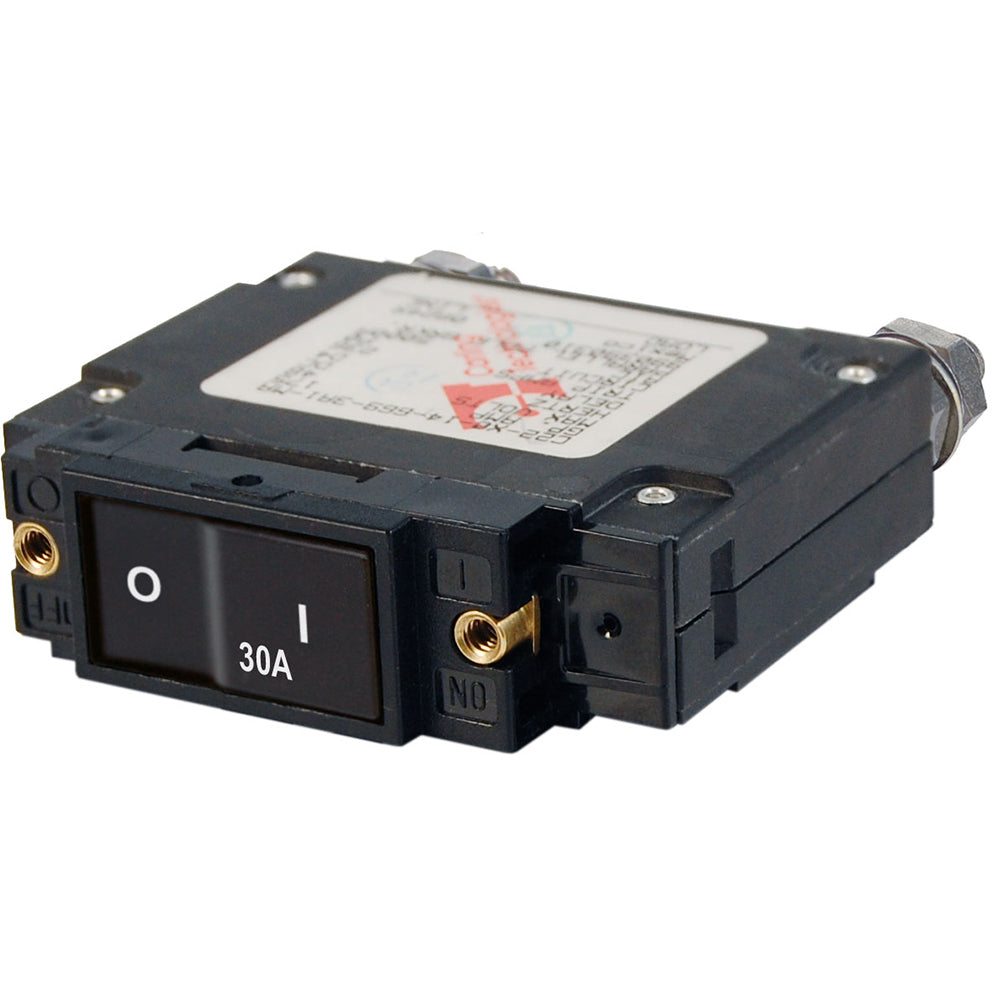

Blue Sea 7545 C-Series Flat Rocker Circuit Breaker - Single Pole - 30A

The C-Series Flat Rocker Circuit Breaker is a high-performance single-pole 30A breaker designed specifically for marine and boating applications. Engineered to provide reliable overcurrent protection, it ensures the safety and efficiency of your boat's electrical systems, including inverters, bow thrusters, and windlasses.

Features

• Rocker actuator remains flush in the "ON" position, eliminating the risk of accidental switching.
• Color-coded actuator clearly indicates the "OFF" position for easy identification.
• Provides comprehensive overcurrent protection for critical marine equipment such as inverters, bow thrusters, and windlasses.
• Integrates switching and circuit protection into a single, compact device for streamlined installation.
• "Trip Free" mechanism ensures the breaker cannot be held closed after tripping, enhancing safety.
• Ignition protected, making it safe for installation aboard gasoline-powered boats.

Specifications

Parameter	Details
Amperage	30A AC / 30A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Operating Temperature	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10,000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.38 lb (0.17 kg)
Box Dimensions	2"H x 3"W x 5"L
Weight (Box)	0.3 lbs
UPC	632085075453
