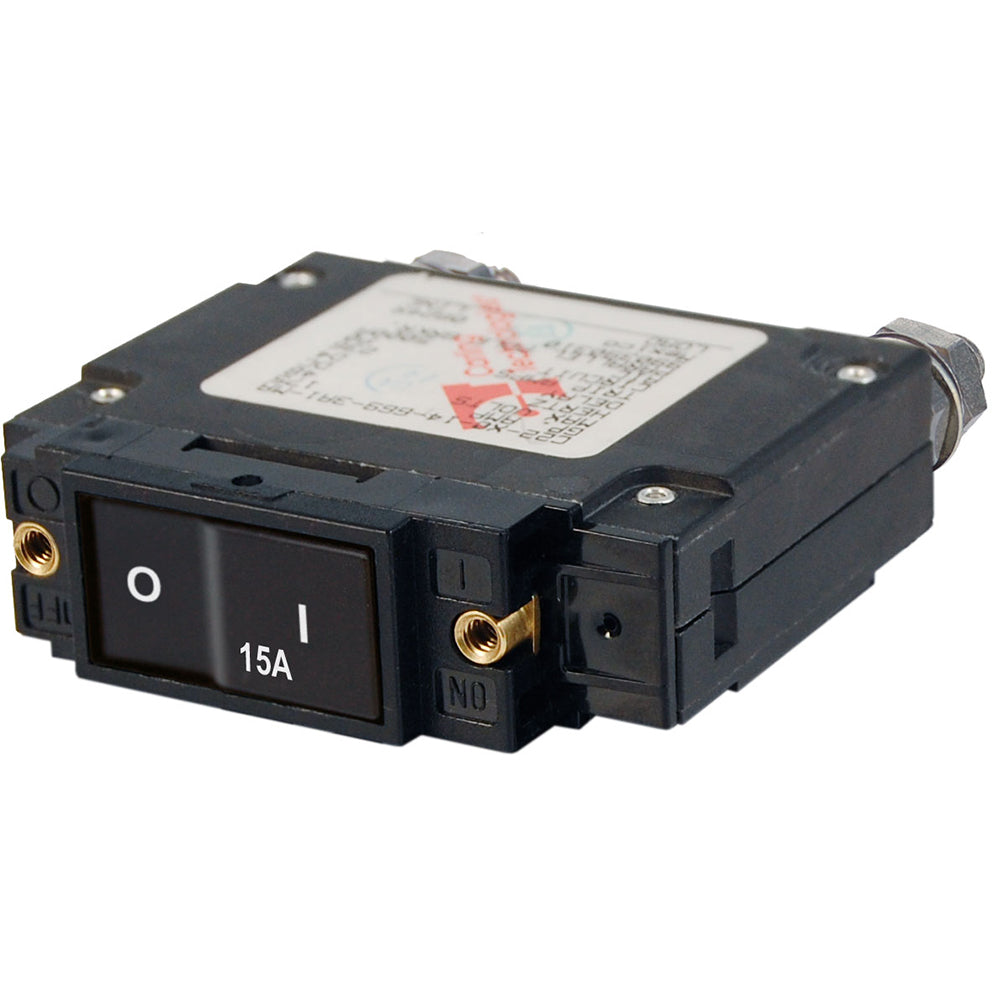

Blue Sea 7542 C-Series Flat Rocker Circuit Breaker - Single Pole - 15A

The C-Series Flat Rocker Circuit Breaker is an essential component for marine applications, offering dependable overcurrent protection for various boat systems such as inverters, bow thrusters, and windlasses. Designed to combine switching and circuit protection into a single device, it ensures the safety and reliability of your marine electrical installations.

Features

• Rocker actuator remains flush in the "ON" position, eliminating the risk of accidental switching
• Color-coded actuator clearly indicates the "OFF" position
• Provides overcurrent protection specifically tailored for marine inverters, bow thrusters, and windlasses
• Integrates switching and circuit protection into one compact device
• "Trip Free" mechanism ensures the breaker cannot be held closed after tripping
• Ignition protected, making it safe for installation aboard gasoline-powered boats

Specifications

Parameter	Details
Amperage	15A AC / 15A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Operating Temperature	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10,000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.38 lb (0.17 kg)
Box Dimensions	2"H x 3"W x 4"L
Weight (WT)	0.4 lbs
UPC	632085075422

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
