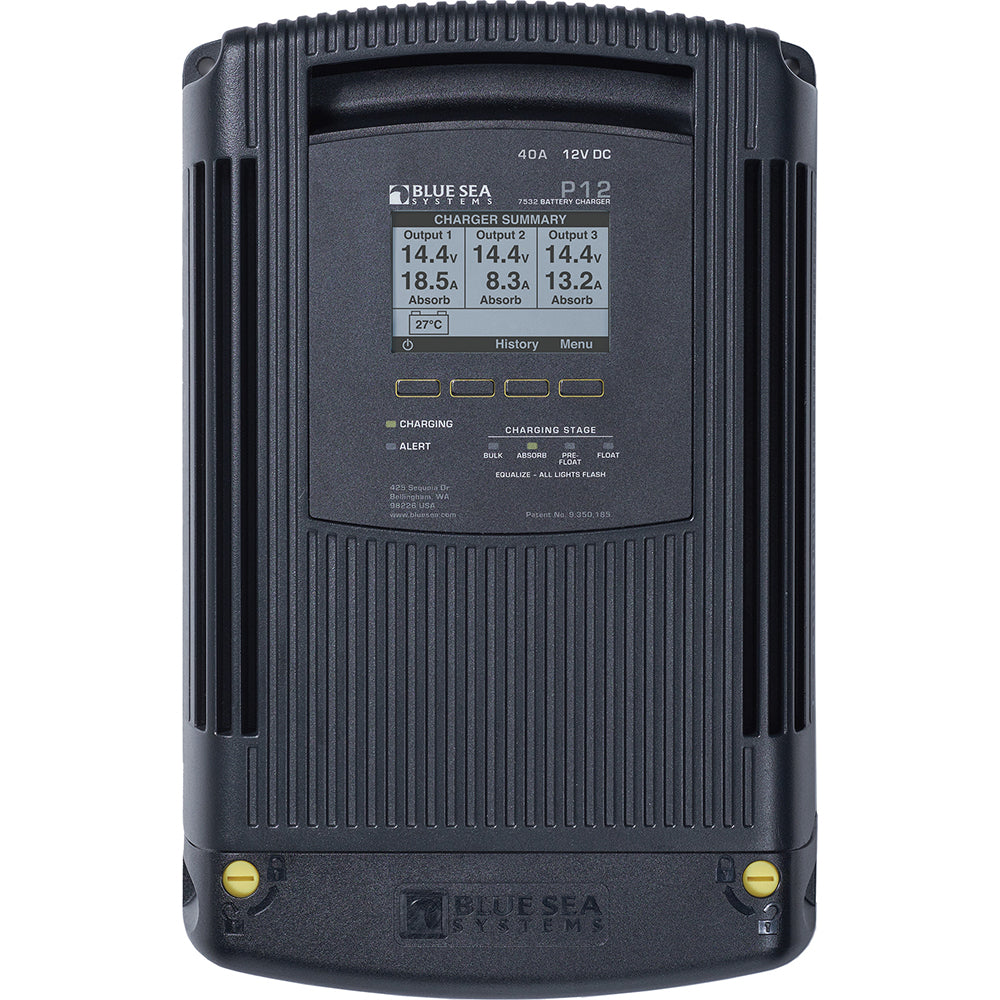

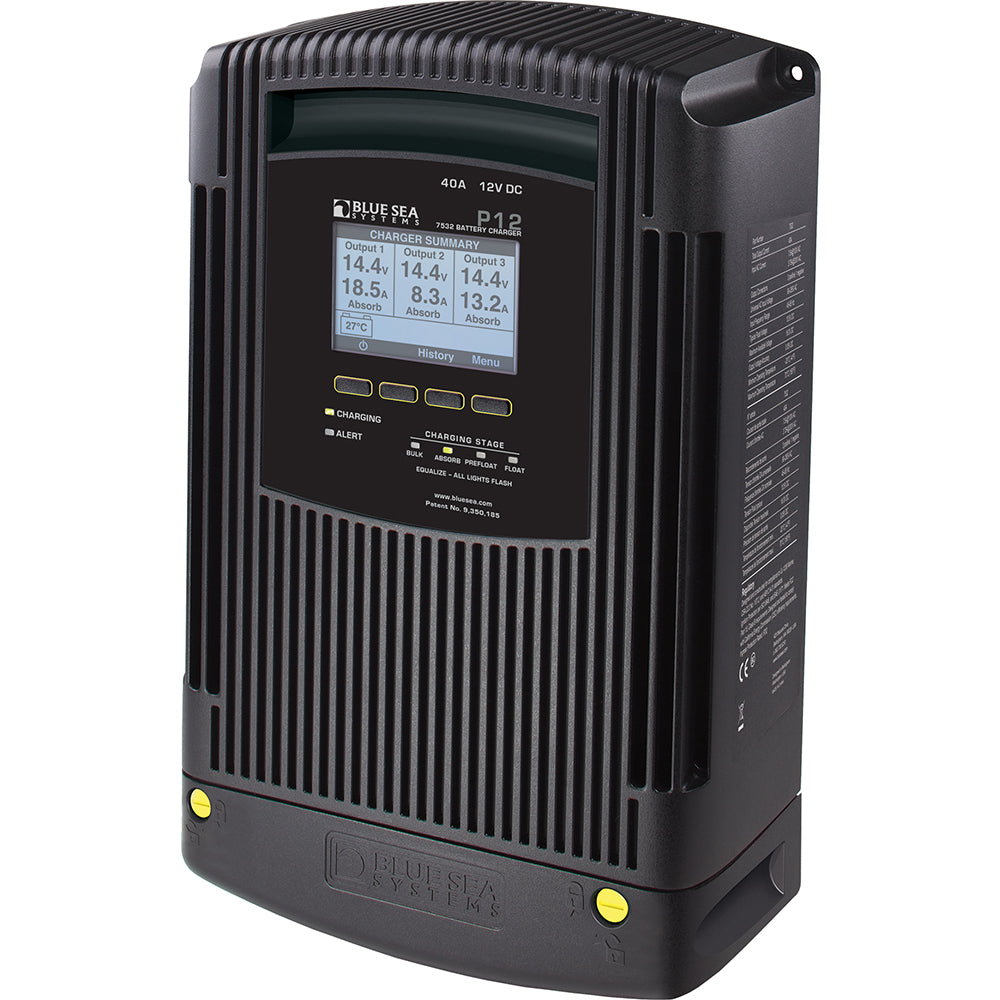

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank
Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The P12 Gen2 Battery Charger is a robust 40A three-bank charger designed specifically for marine and boating applications. Engineered to withstand harsh marine environments, it ensures your boat's battery banks are efficiently and safely maintained, providing reliable power for all your marine adventures.
Key Features
- Four-stage charging process with three outputs, optimized for marine environments.
- Durable, finned aluminum case for enhanced heat dissipation and longevity.
- PreFloat™ stage technology to prevent overcharging and extend battery life.
- Power factor correction ensures efficient AC usage, reducing energy consumption onboard.
- Intuitive diagnostic screens for easy monitoring and troubleshooting.
- Customizable charge profiles and user-defined settings to match various marine battery needs.
- Supports charging for up to three separate battery banks, ideal for complex marine setups.
- Large, bright display for clear visibility in all lighting conditions.
- Multi-language support: English, French, German, Italian, Spanish.
- Charge coordination with Blue Sea Systems Automatic Charging Relays (ACR) for optimal battery management.
- Battery Temperature Compensation adjusts charge voltage based on actual battery temperature.
- AC over and under voltage shut down with automatic restart for added safety.
- Over and under battery temperature protection to prevent charger operation outside safe temperature ranges.
- DC over voltage and reverse polarity protection safeguard your marine electrical system.
- Surge and short circuit protection ensure reliable performance in volatile marine environments.
Specifications
| Parameter | Details |
|---|---|
| Total Output Current | 40A |
| Input AC Current | 7.5A @ 100V AC / 3.75A @ 200V AC |
| Maximum Output Voltage | 16V DC |
| Nominal Voltage | 12V DC |
| Ignition Protected | Yes |
| Number of Outputs | 1 Negative / 3 Positive |
| Universal AC Input Voltage | 90-265V AC |
| AC Input Frequency | 45-65Hz |
| Output Voltage Accuracy | ±0.05V |
| Typical Float Voltage | 13.5V DC |
| Operating Temperature Range | -20° C to 70° C |
| Storage Temperature Range | -30° C to 80° C |
| Battery Types Supported | AGM, Flooded Lead Acid, Gel, TPPL (Thin Plate Pure Lead) |
| Recommended Battery Bank Sizes | Up to 440Ah (e.g., 4 x Group 31 / 60Ah) to a minimum of 2 x Group 31 |
| Warranty | 5 Years |
| Dimensions (H x W x D) | 13.03" (330.96 mm) x 8.46" (214.88 mm) x 3.66" (92.96 mm) |
| Weight | 13.00 lb (5.9 kg) |
| Charging Banks | 3 |
| Charger Output - Amps | 40A |
| Charger Output Voltage | 12V |
| Portability | No |
| Charger Input - Voltage | 120/240V |
| Box Dimensions | 7" H x 11" W x 18" L |
| Box Weight | 10.2 lbs |
| UPC | 632085075323 |
