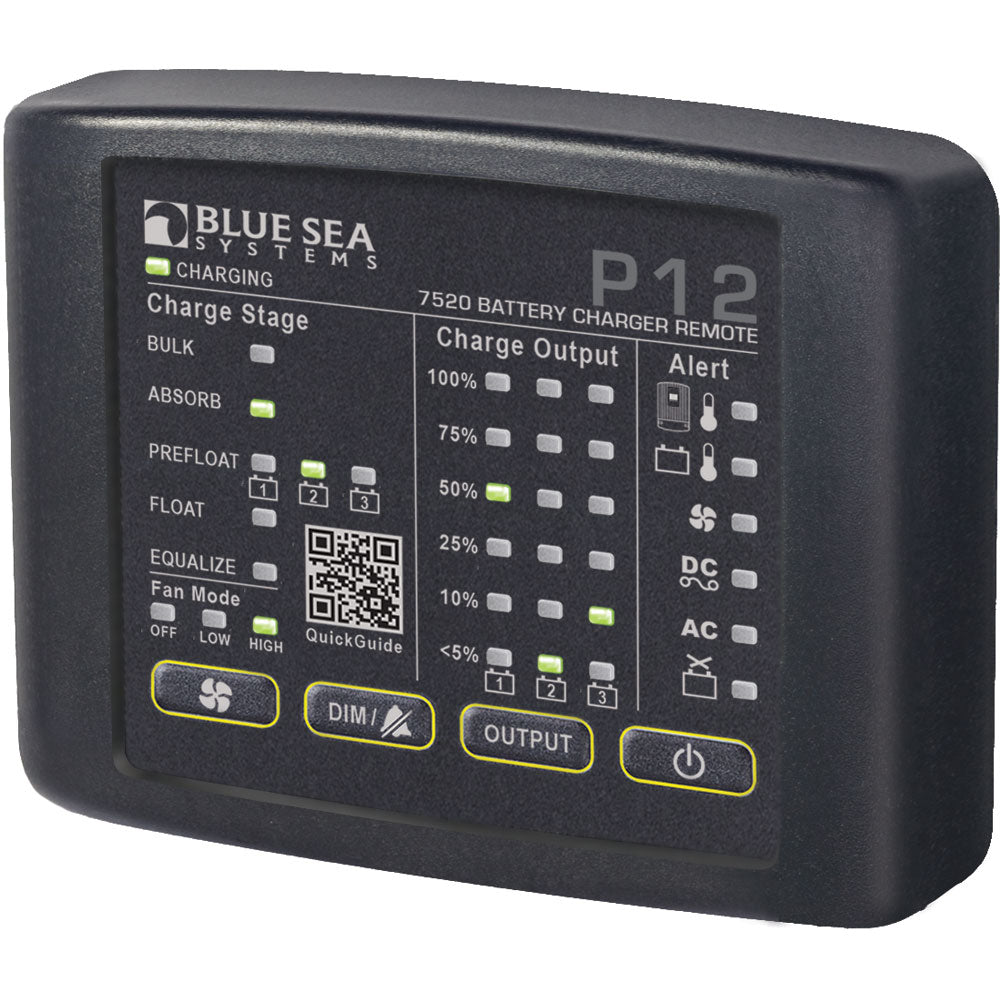

Blue Sea 7520 P12 LED Remote f/Battery Chargers

The P12 Battery Charger LED Remote is a must-have for marine and boating enthusiasts, offering precise control and monitoring of your boat's battery systems. Engineered for the demanding marine environment, this remote ensures your batteries are always charged efficiently and maintained optimally, providing peace of mind on every voyage.

Key Features

LED Indicators

Indicator	Description
Charging LED	A green light confirms that the battery is actively charging.
Charge Stage	Displays the current stage of the charging process.
Equalize LED	Indicates that the charger is performing equalization mode to balance battery cells.
Fan Mode	Shows when the charger's internal fan is operating to maintain optimal temperature.
Charge Output	Displays the percentage of output current for each battery and indicates the maximum output setting when adjusted for AC source limitations.
Alert	Icon LEDs provide warnings and alert statuses for quick diagnostics.

Control Buttons

• Fan - User-adjustable settings to control the charger’s cooling fan.
• Dim/Alarm - Adjusts the brightness of the display LEDs and silences alarm functions.
• Output - Allows users to adjust the charger’s output in response to AC source limitations, reducing current draw as needed.
• Power - Places the P12 Battery Charger into standby mode to conserve energy.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
