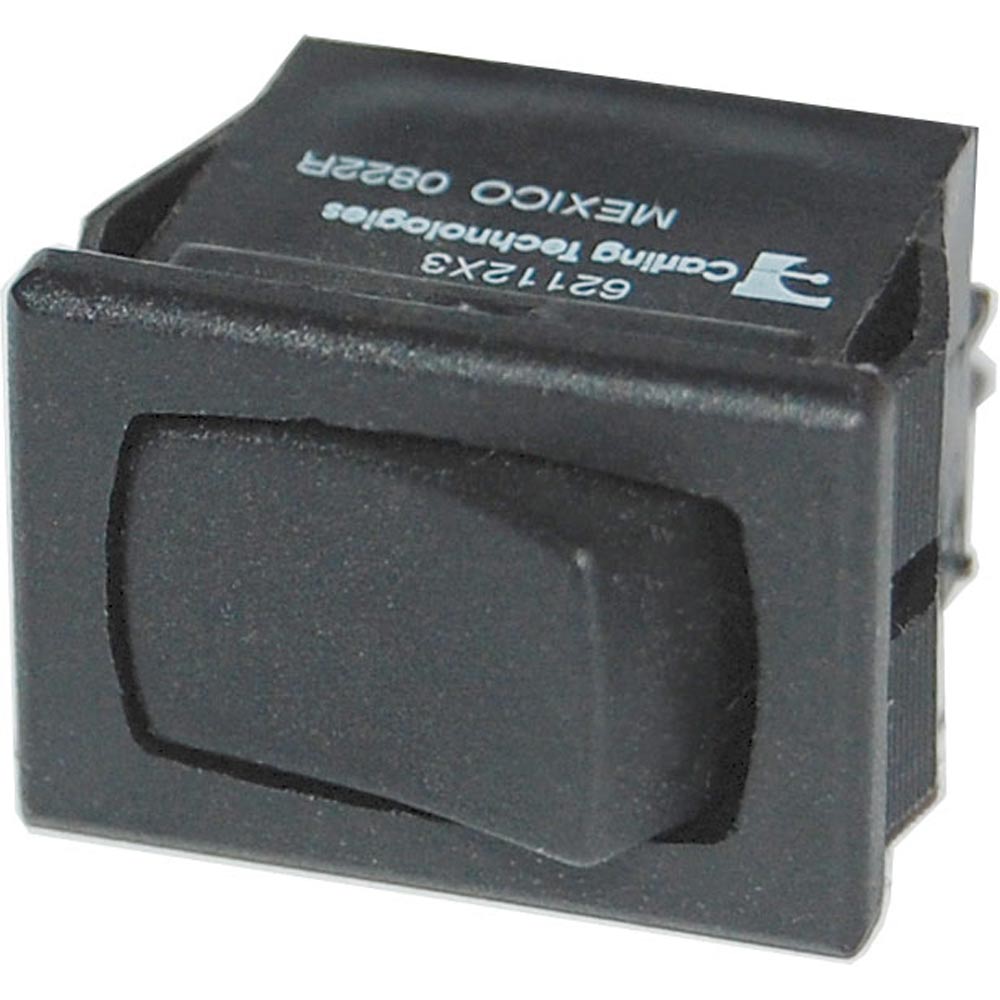

Blue Sea 7491 360 Panel - Rocker Switch DPDT - ON-ON

The 360 Panel DPDT Rocker Switch is a dependable and versatile solution designed specifically for marine and boating electrical systems. Engineered to withstand the harsh marine environment, this switch allows seamless control of multiple functions within your vessel’s control panel, enhancing both functionality and reliability on the water.

Product Features

The 360 Panel System utilizes an open frame design, enabling the easy installation of a wide array of modules. This flexibility allows boat owners and marine professionals to combine various functions into a single, streamlined panel. Whether you’re managing battery systems or selecting power sources, the 360 Panel DPDT Rocker Switch delivers unmatched adaptability for your marine electrical needs.

Key Benefits

• Extensive compatibility with multiple modules for expanded functionality
• Flexible design supports future upgrades and modifications
• Quick and straightforward assembly saves installation time
• Ideal for applications such as battery management and power source selection

Specifications

Parameter	Details
Action:	ON-ON
Pole/Throw:	DPDT
Maximum Amperage:	8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC
Terminal Type:	Wire Leads
Terminal Size:	6.00" (152.4mm)
Weight:	0.08 lb (0.04 kg)
Color:	Black
Box Dimensions:	1" H x 2" W x 7" L, Weight: 0.1 lbs
UPC:	632085074913

Additional Information

Action: Momentary ON

Pole/Throw Options:

• SPST: Single Pole/Single Throw
• SPDT: Single Pole/Double Throw
• DPST: Double Pole/Single Throw
• DPDT: Double Pole/Double Throw

Maximum amperage ratings depend on the use of appropriately sized fuses and wiring for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Resources

• Quick Guide (PDF)
• Brochure (PDF)
