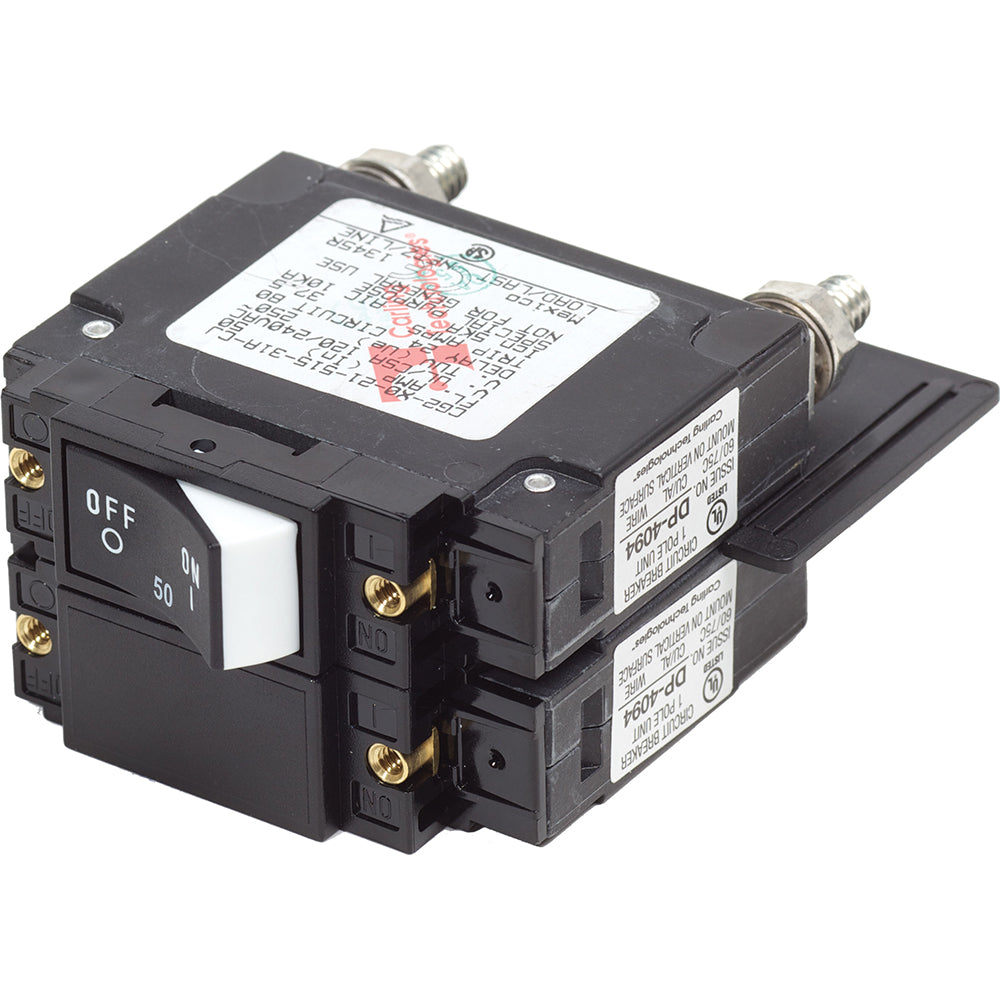

Blue Sea 7467 UL-489 Circuit Breaker - 50A Raised Rocker

Ensure the safety and reliability of your marine electrical systems with the 7467 UL-489 50A Raised Rocker Circuit Breaker. Engineered to meet strict UL-489 standards, this circuit breaker is ideal for Navy, Army, Coast Guard vessels, and other marine applications under CFR 46.

Key Features

• High Amperage Capacity: Handles up to 50A AC, suitable for demanding marine electrical systems.
• Raised Rocker Actuator: Provides clear visual indication of the breaker’s status.
• Durable Construction: Magnetic Hydraulic—Trip free design ensures reliable operation in harsh marine environments.
• Compact and Lightweight: Weighs only 0.23lb (0.1 kg), perfect for installations with limited space.
• Wide Temperature Range: Operates efficiently from -40° C to 85° C, ideal for various marine climates.

Specifications

Specification	Details
Amperage	50A AC
Actuator Style	Raised Rocker
Poles	2
Maximum Voltage	250V AC
Circuit Breaker Type	Magnetic Hydraulic—Trip free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	5000A
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 SS
Mounting Screw Torque	8 in-lb (0.9 Nm)
Switching Cycles	10,000
Weight	0.23lb (0.1 kg)
Box Dimensions	2"H x 4"W x 8"L
Box Weight	0.6 lbs
UPC	632085074678

Compliance and Safety

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Information

For detailed information, you can download the brochure:

Brochure (PDF)
