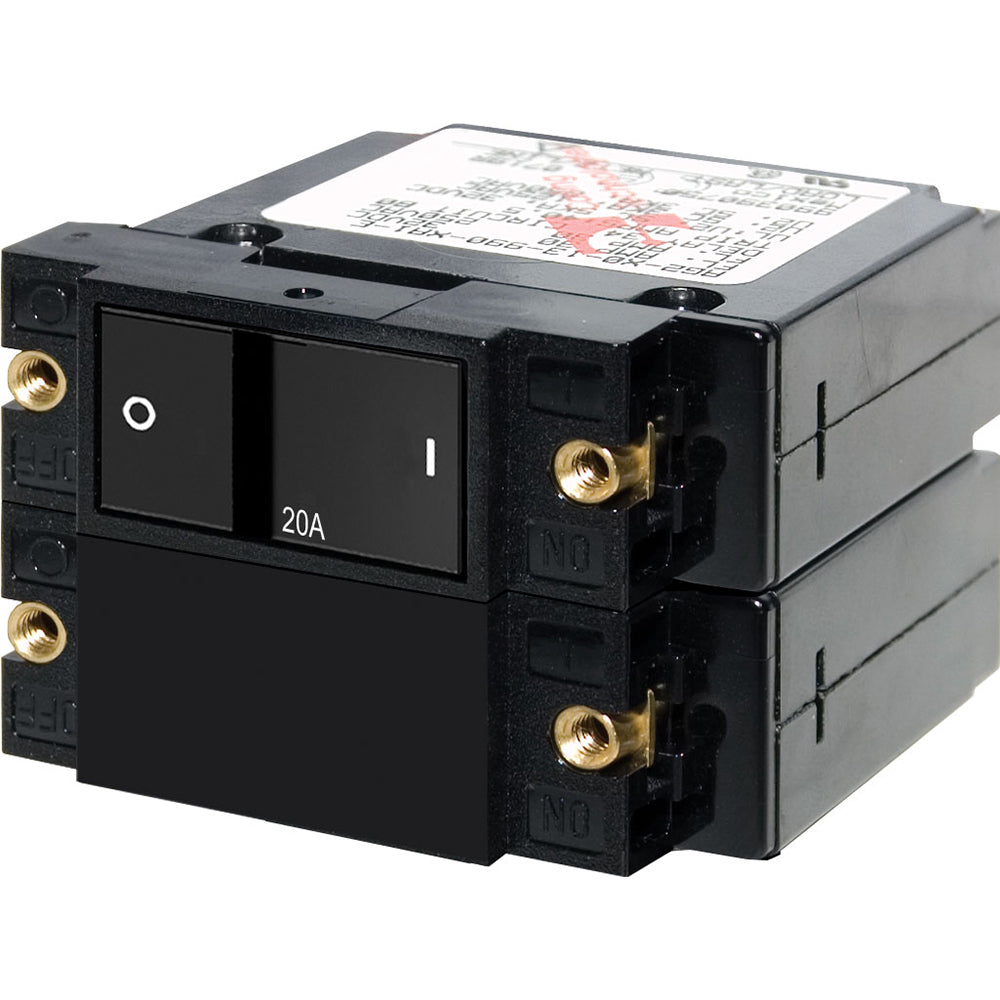

Blue Sea 7413 A-Series Flat Rocker Circuit Breaker - Double Pole - 20A

The A-Series Flat Rocker Double Pole Circuit Breaker is engineered for reliable performance in marine and boating applications. With its robust design and user-friendly features, it ensures optimal electrical protection for your vessel's systems.

Key Features

• Color-Coded Actuator: Easily identifies the "OFF" position for quick operation.
• Trip-Free Design: Prevents the breaker from being held "ON" during fault conditions, enhancing safety.
• Versatile Mounting: Equipped with international ON/OFF symbols, allowing for both vertical and horizontal installation.

Technical Specifications

Parameter	Details
Amperage	20A AC / 20A DC
Actuator Style	Flat Rocker
Poles	2
Maximum Voltage	120V AC / 240V AC / 32V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Interrupt Capacity	3000A @ 240V AC / 1500A @ 240V AC [TUV] / 5000A @ 32V DC
Operating Temperature	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10,000
Terminal Screw	#10-32 Stainless Steel
Weight	0.38 lb (0.17 kg)
Box Dimensions	2" H x 2" W x 4" L
UPC	632085074135

Installation Guidelines

Ensure that the circuit breaker is securely mounted using the provided #6-32 stainless steel screws. Adhere to the torque specifications to maintain optimal performance and safety. The versatile actuator design allows for flexible installation orientations to suit your marine setup.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Why Choose the A-Series Flat Rocker Circuit Breaker?

Designed specifically for the demanding environments of marine and boating applications, this circuit breaker offers unparalleled durability and reliability. Its magnetic hydraulic trip-free mechanism ensures quick response to electrical faults, protecting your vessel's electrical systems from potential damage. The compact design and lightweight construction make it an ideal choice for various marine installations.
