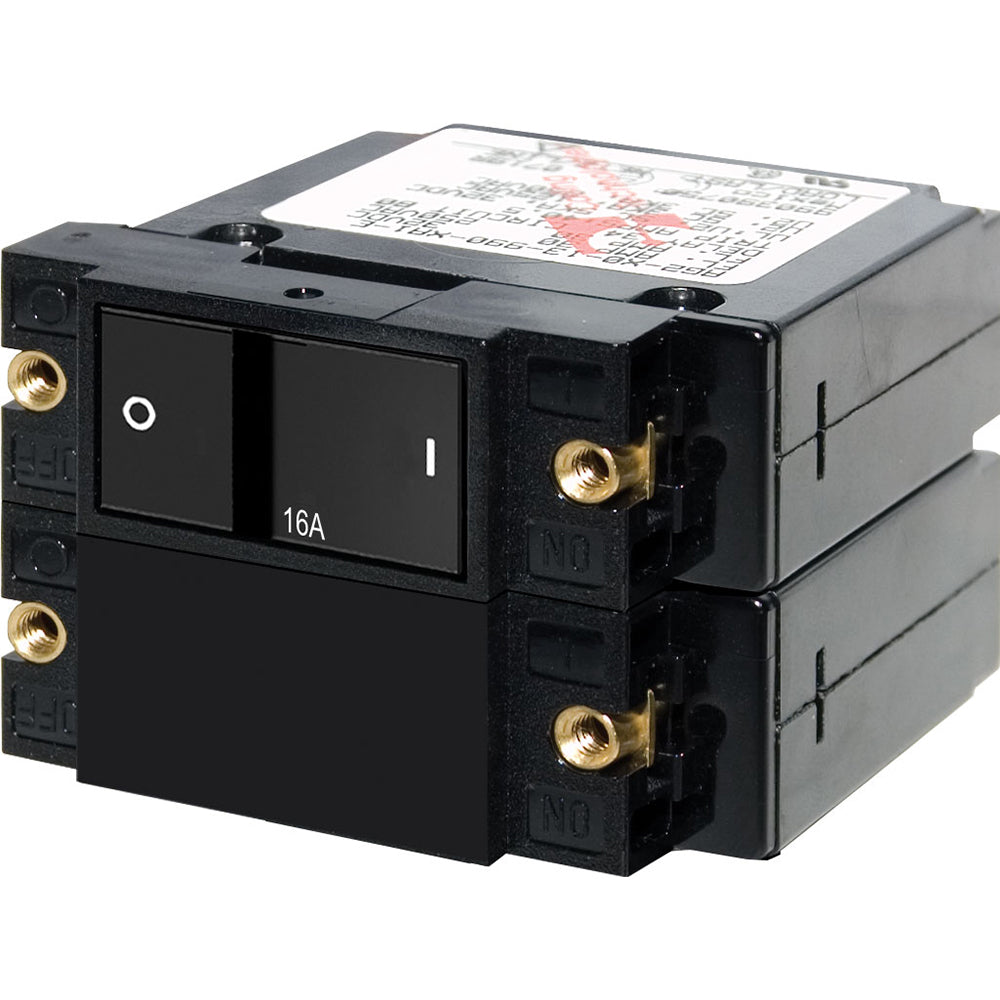

Blue Sea 7412 A-Series Flat Rocker Circuit Breaker - Double Pole - 16A

The A-Series Flat Rocker Circuit Breaker is an essential component for marine electrical systems, offering reliable protection and easy operation on your vessel. Designed specifically for the harsh marine environment, this double pole, 16A breaker ensures safe and efficient electrical management on your boat.

Key Features

• Color Actuator: Clearly indicates the "OFF" position for easy monitoring.
• Trip-Free Design: Ensures the breaker cannot be held "ON" during fault current conditions, enhancing safety.
• Universal Mounting: International ON/OFF symbols support both vertical and horizontal mounting, providing flexibility in installation.

Technical Specifications

Amperage	16A AC / 16A DC
Actuator Style	Flat Rocker
Poles	2
Maximum Voltage	120V AC / 240V AC / 32V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Interrupt Capacity	3000A @ 240V AC / 1500A @ 240V AC [TUV] / 5000A @ 32V DC
Operating Temperature Range	-40°C to 85°C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10,000
Terminal Screw	#10-32 Stainless Steel
Weight	0.38 lb (0.17 kg)
Box Dimensions	2"H x 3"W x 5"L
UPC	632085074128

Marine-Grade Durability

Built to withstand the demanding conditions of marine environments, the A-Series Flat Rocker Circuit Breaker is corrosion-resistant and robust, ensuring longevity and consistent performance on your boat. Its stainless steel components are designed to resist saltwater exposure, making it a reliable choice for both recreational and professional vessels.

Installation and Maintenance

Installation is straightforward with the included #6-32 stainless steel mounting screws. The breaker supports both vertical and horizontal mounting, allowing for versatile installation options to fit your boat's electrical layout. With a lightweight design of just 0.38 lb (0.17 kg), it is easy to handle during installation and maintenance.

Safety Compliance
