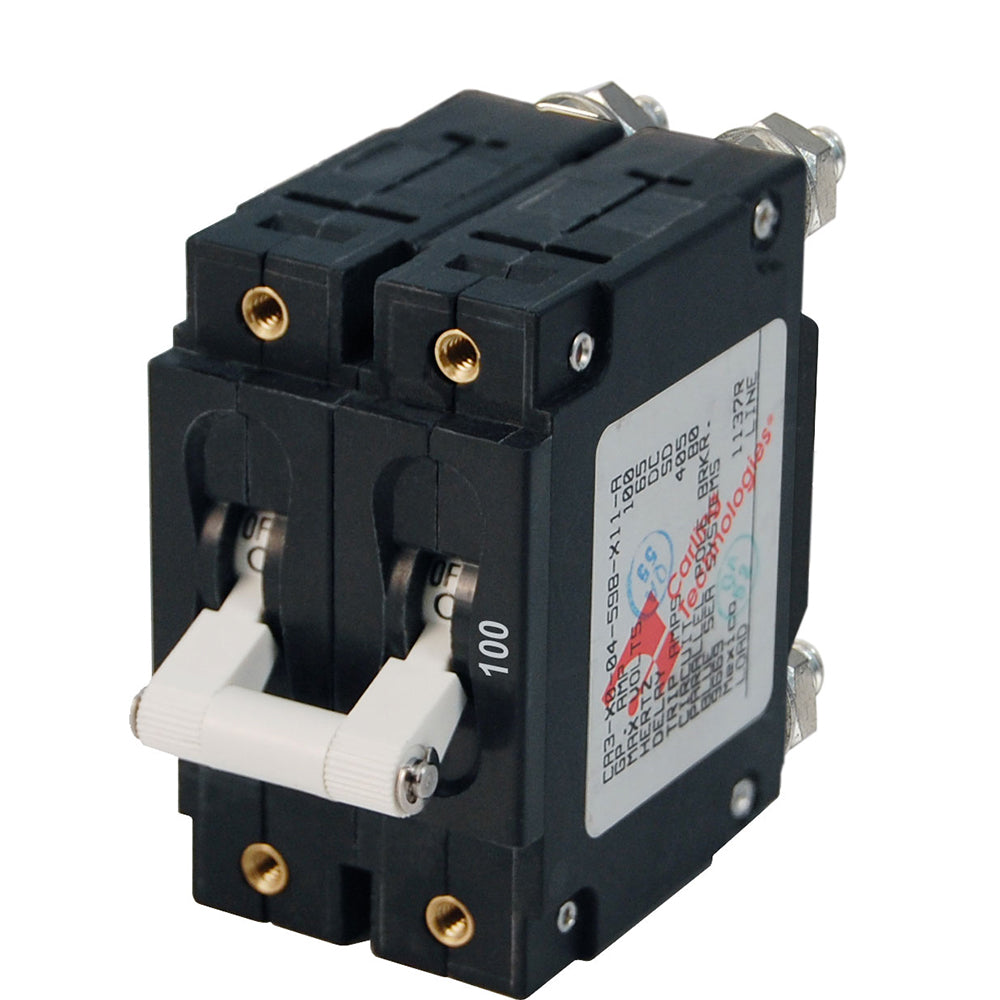

Blue Sea 7258 C-Series Double Pole Circuit Breaker - 100A

C-Series Toggle is engineered to deliver exceptional performance and reliability for marine electrical systems. Perfectly suited for boats and marine vessels, this high-capacity circuit breaker ensures your onboard power distribution remains secure and efficient, even in the most demanding environments.

Product Information

• Part Number (PN): 7258
• Number of Poles: 2
• Color: White
• Amperage: 100A

Features

• High Interrupt Capacity: With a 5,000 Ampere interrupt capacity, the C-Series Toggle meets ABYC standards for 120/240 Volt 50 Ampere main protection, ensuring your vessel’s electrical system is safeguarded against excessive current.
• Dual Pole Configuration:
  • Double Pole: Acts as a 120 Volt AC main circuit breaker, effectively switching both hot and neutral lines for balanced protection.
  • Triple Pole: Functions as a 240 Volt AC main circuit breaker, seamlessly switching all hot lines and neutral, ideal for higher power applications on your boat.
• Comprehensive Protection: In both double and triple pole setups, if any single pole trips, all poles will automatically trip, ensuring complete isolation during a fault condition.
• Trip-Free Design: The breaker cannot be held in the ON position during fault current conditions, enhancing safety by preventing accidental re-energization when a fault is present.

Specifications

Amperage	100A
Box Dimensions	4" H x 5" W x 5" L
Weight	0.65 lbs
UPC	632085072582
