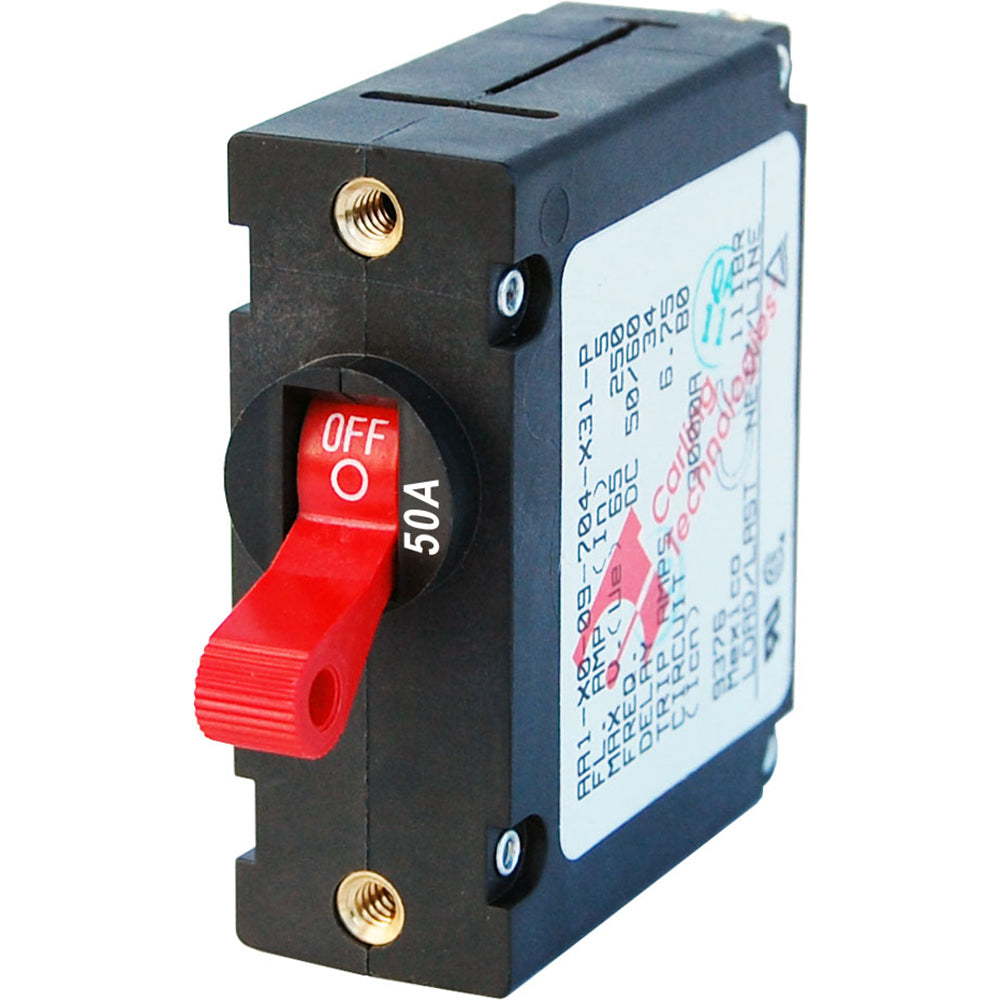

Blue Sea 7229 AC / DC Single Pole Magnetic World Circuit Breaker - 50 Amp

The AC/DC Single Pole Magnetic World Circuit Breaker is a vital component for ensuring the safety and reliability of your vessel’s electrical system. Engineered to meet the rigorous demands of marine environments, this circuit breaker provides seamless protection and efficient power management for both recreational and professional boats.

Product Overview

The World Circuit Breaker adheres to all American Boat and Yacht Council (ABYC) Standards, ensuring top-tier safety and performance. It is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada, making it a globally trusted solution for marine electrical systems.

Key Features

• Industry-standard circuit breaker compatible with Blue Sea Systems electrical panels
• Integrates switching and circuit protection in a single, compact device
• Single pole Quick Trip models specifically designed to safeguard sensitive electronics
• "Trip Free" mechanism ensures the breaker cannot remain "ON" during fault current conditions, enhancing safety

Technical Specifications

Specification	Details
Part Number (PN)	7229
Color	Red
Amperage	50 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage
Box Dimensions	1" H x 3" W x 4" L
Weight	0.2 lbs
UPC	632085072292

Why Choose the World Circuit Breaker?

Designed for marine applications, the World Circuit Breaker offers unparalleled protection for your boat’s electrical systems. Its magnetic hydraulic technology ensures quick and reliable response to electrical faults, preventing potential damage to your vessel’s electronics. The compact single pole design makes installation straightforward, while the durable construction withstands the harsh marine environment.

Compliance and Certifications

• Meets American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE Marked for Europe
• CSA Certified for Canada
