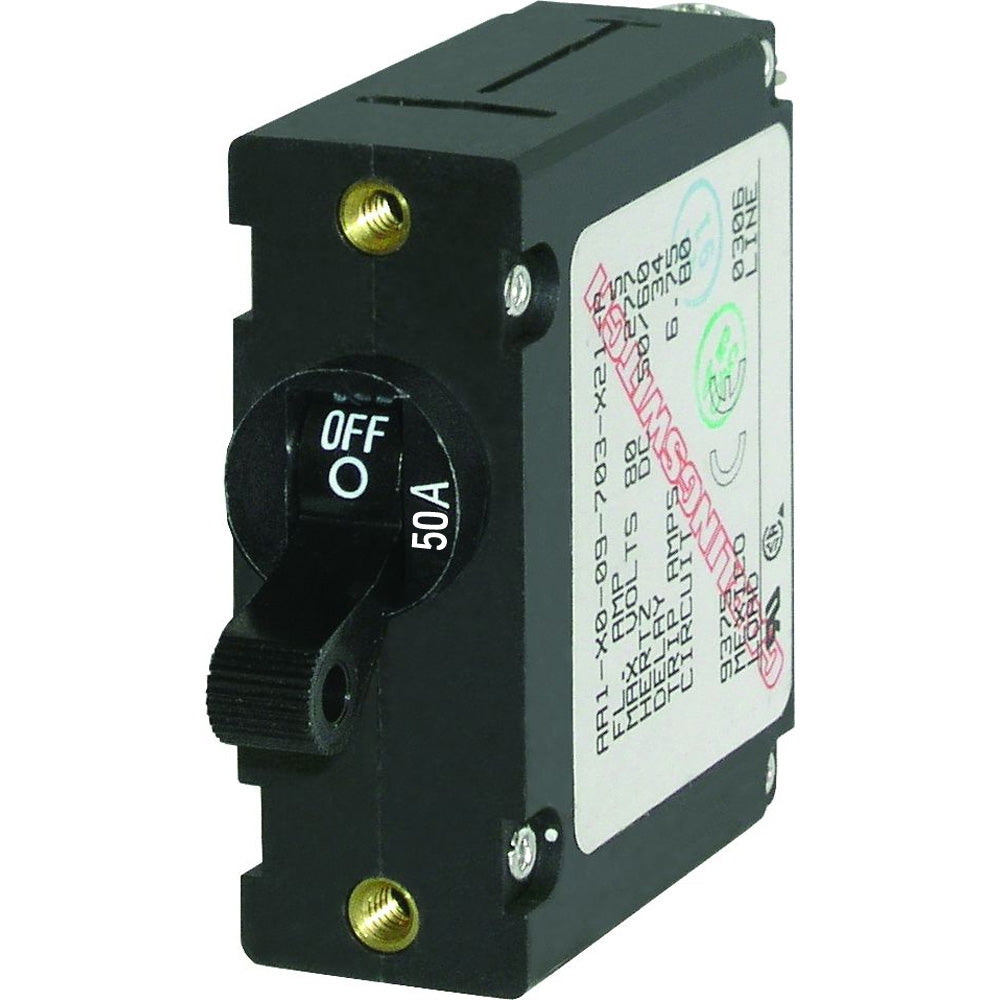

Blue Sea 7228 AC / DC Single Pole Magnetic World Circuit Breaker - 50 Amp

The AC/DC Single Pole Magnetic World Circuit Breaker is an essential component for marine and boating electrical systems, ensuring reliable protection and efficient power management on your vessel. Engineered to meet rigorous marine standards, this circuit breaker provides superior performance and safety for your boat's electrical panels.

Key Features

• Industry-standard circuit breaker compatible with Blue Sea Systems electrical panels
• Integrates switching and circuit protection into a single, compact device
• Single pole Quick Trip models designed specifically for optimal electronics protection
• "Trip Free" mechanism ensures the breaker cannot remain on during a fault current condition, enhancing safety

Technical Specifications

Specification
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage
Amperage	50 Amp
Box Dimensions	1" H x 3" W x 5" L
Weight	0.15 lbs
UPC	632085072285

Compliance and Certifications

The World Circuit Breaker adheres to the highest industry standards, ensuring reliability and safety for your marine electrical systems:

• Meets all American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE Marked for Europe
• CSA Certified for Canada

Product Specifications

• Part Number: 7228
• Color: Black
• Amperage: 50 Amp
• Delay: Standard

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
