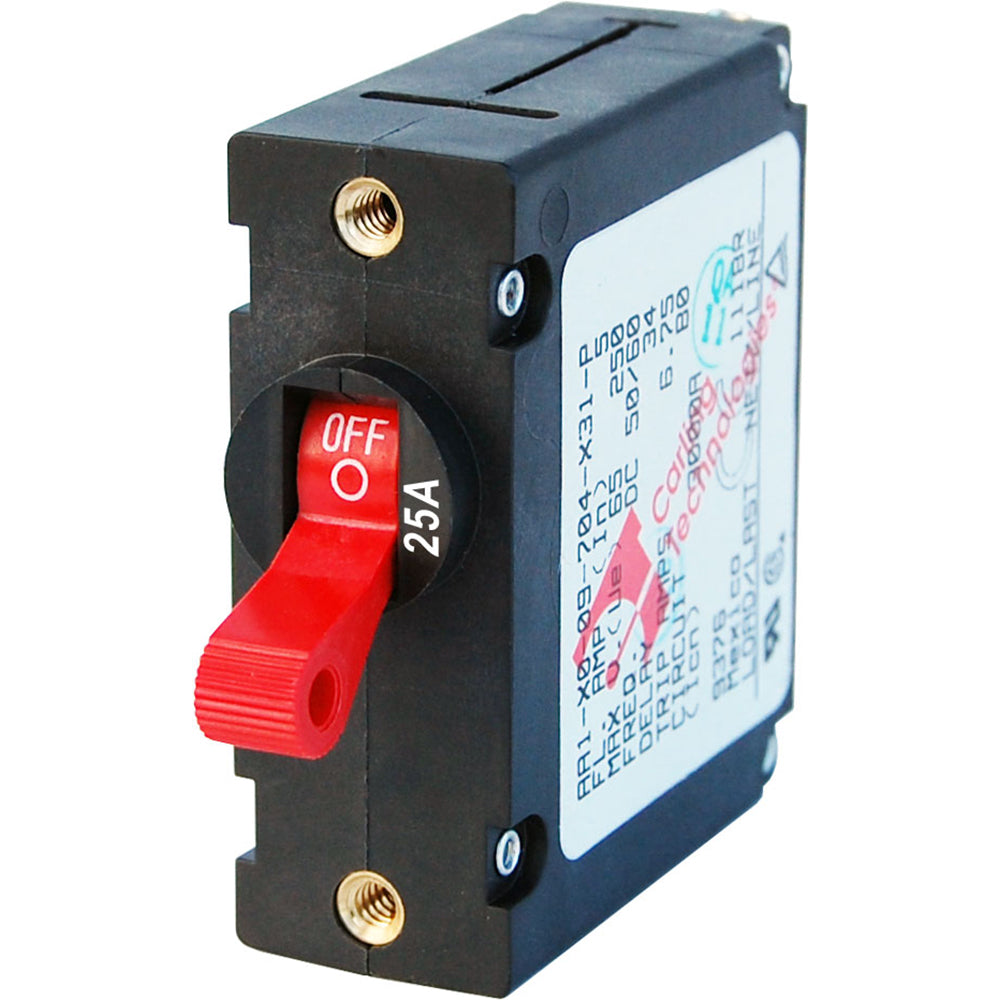

Blue Sea 7217 AC / DC Single Pole Magnetic World Circuit Breaker - 25 Amp Red

The AC/DC Single Pole Magnetic World Circuit Breaker is a reliable and essential component for your marine electrical system, ensuring optimal protection and performance for your boat or yacht. Certified to meet rigorous international standards, this circuit breaker delivers seamless integration and superior safety for your marine electronics.

Product Features

• Industry-standard circuit breaker designed for Blue Sea Systems electrical panels
• Combines switching and circuit protection into a single, efficient device
• Single pole Quick Trip models specifically engineered for protecting sensitive electronics
• "Trip Free" design ensures the breaker cannot remain "ON" during fault current conditions, enhancing safety

Key Specifications

Specification
Part Number (PN)	7217
Color	Red
Amperage	25 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage
Box Dimensions	1" H x 3" W x 4" L
Weight	0.3 lbs
UPC	632085072179

Compliance and Certifications

This World Circuit Breaker is engineered to meet all American Boat and Yacht Council (ABYC) standards, ensuring top-tier safety and performance. It is also UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada, making it a versatile choice for marine applications worldwide.
