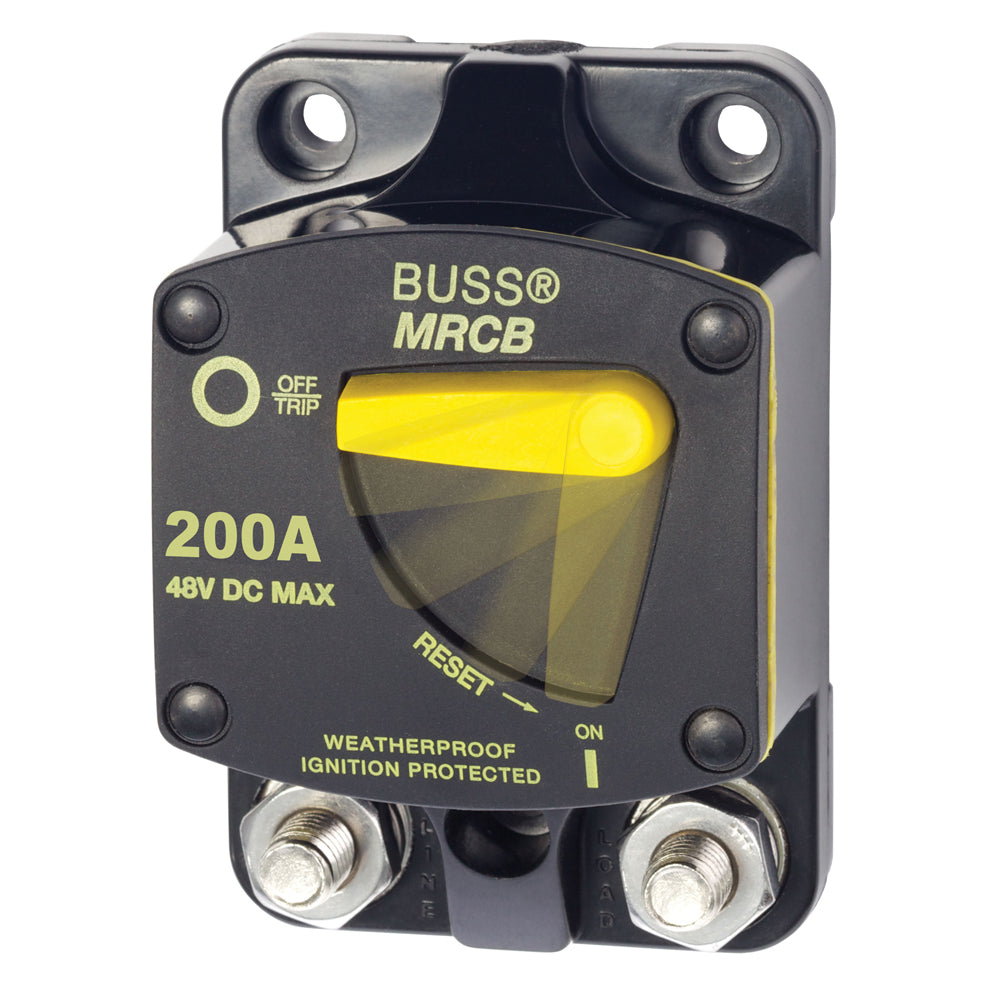

Blue Sea 7149 200 Amp Circuit Breaker - Surface Mount

Enhance your marine electrical system with the 187-Series Surface Mount 200A Circuit Breaker, engineered to deliver reliable switching and robust protection for your boat's critical circuits. Designed specifically for the demanding marine environment, this circuit breaker ensures safety and optimal performance on the water.

Key Features

• Integrated Switching and Protection: Combines switching and circuit protection into a single reliable device, simplifying your electrical setup.
• Easy Operation: Features a clear, single lever operation for effortless control of your boat's electrical circuits.
• Trip-Free Design: The "Trip Free" mechanism ensures the breaker cannot be held "ON" during fault conditions, enhancing safety onboard.
• Waterproof Construction: Built to withstand harsh marine environments, preventing water ingress and ensuring long-lasting performance.
• Clean Installation: Recessed mounting holes provide a sleek, streamlined appearance, maintaining the aesthetic of your vessel.
• Heavy Gauge Wire Support: Large clearance around terminal studs accommodates heavy gauge wire lugs, ideal for high-power marine applications.
• High Torque Connections: Robust 5/16 M8 terminals offer secure, high torque connections, ensuring reliable electrical performance.
• Visible Status Indicator: A large lever with both vertical and horizontal orientations clearly indicates the trip status of the circuit breaker.
• Ignition Protected: Safe for installation aboard gasoline-powered boats, preventing ignition sources in hazardous areas.
• Compliance: Meets SAE J1171 external ignition protection requirements, ensuring adherence to marine safety standards.

Product Specifications

Amperage	200A
Dimensions	2" H x 5" W x 9" L
Weight	0.6 lbs
UPC	632085171490

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Note: Do not use as a switch where high inrush currents are expected.
