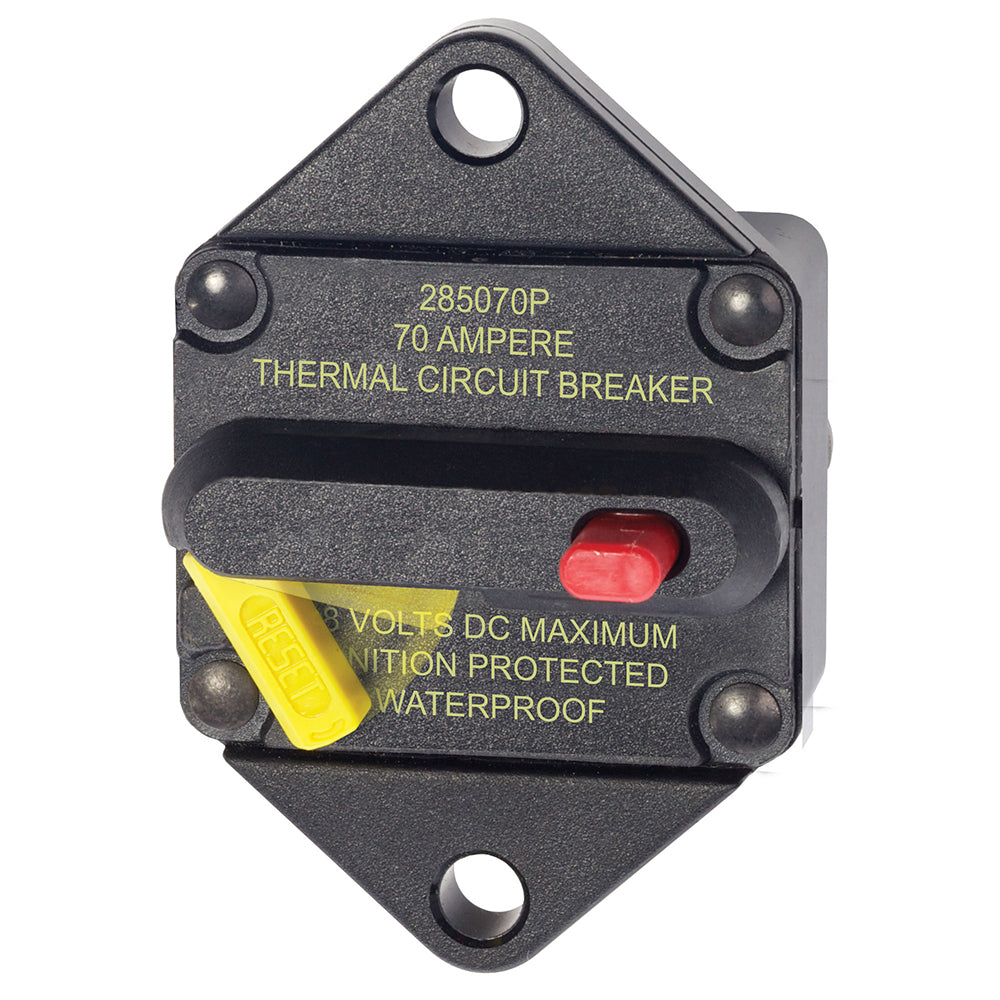

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series

The 285-Series Thermal Circuit Breaker Panel Mount - 70A is an essential component for marine and boating electrical systems. Designed for reliability and ease of installation, this circuit breaker provides robust protection against electrical faults, ensuring the safety and efficiency of your vessel's power distribution.

Key Features

• Compatible drop-in replacement for 185-Series Circuit Breakers
• Visible reset lever clearly indicates when the breaker is in an open condition
• Ignition protected, making it safe for installation aboard gasoline-powered boats
• Complies with SAE J1171 external ignition protection standards
• Weather-resistant construction suitable for harsh marine environments
• Integrates both switching and circuit breaker functions into one compact unit
• "Trip Free" mechanism ensures the breaker cannot be held closed after tripping, enhancing safety

Technical Specifications

Amperage	70A
Interrupt Rating	3,000A @ 48V DC*
Maximum Voltage Rating	48 Volts DC
Operating Temperature Range	-40°C to 85°C
Circuit Breaker Type	Thermally Responsive Bi-metal Blade
Circuit Breaker Class	Type III - Switchable / Manual Reset - Trip Free
Terminal Stud Size	M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque	50 in-lb
Mounting Holes	Accept 1/4" (M6) screw
Box Dimensions	2"H x 5"W x 9"L
Weight	0.33 lb (0.15 kg)
UPC	632085070854

* AIC ratings achieved using SAE J1625

Usage Information

Do not use for direct control of high inrush loads such as motor starting.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
