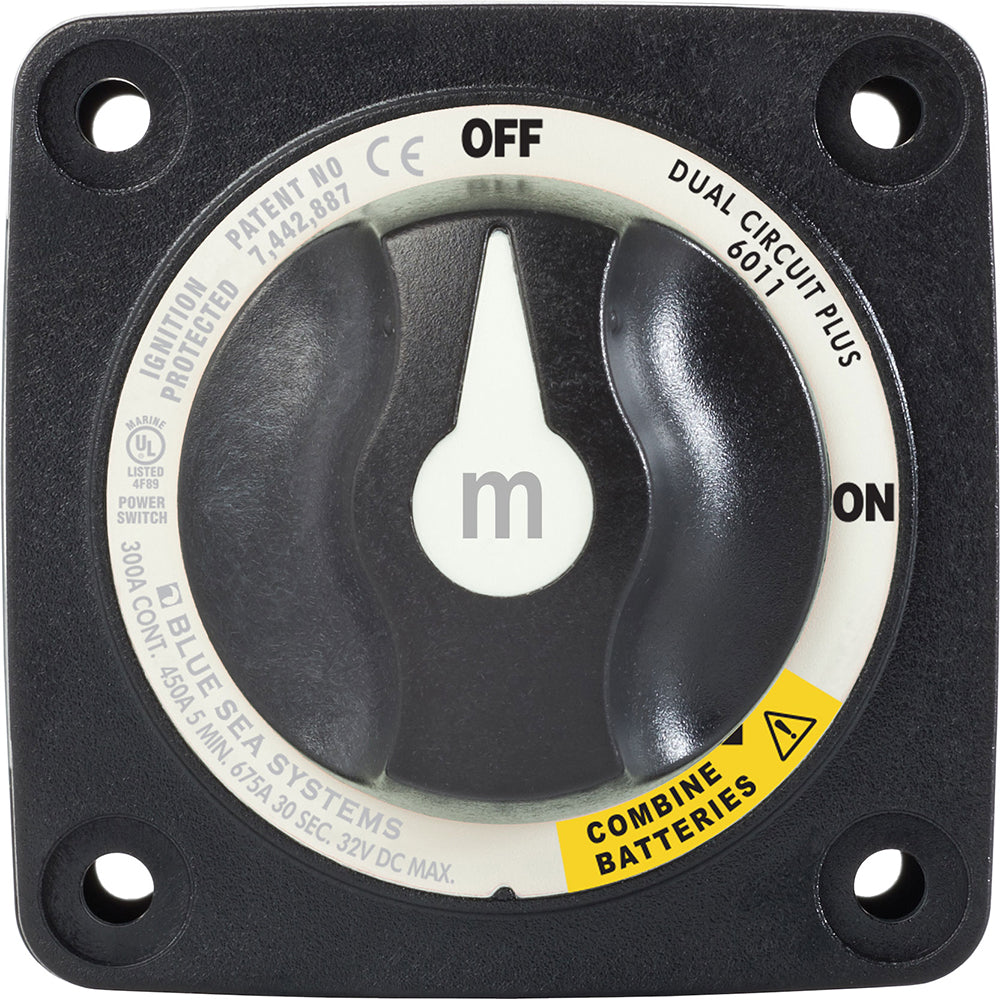

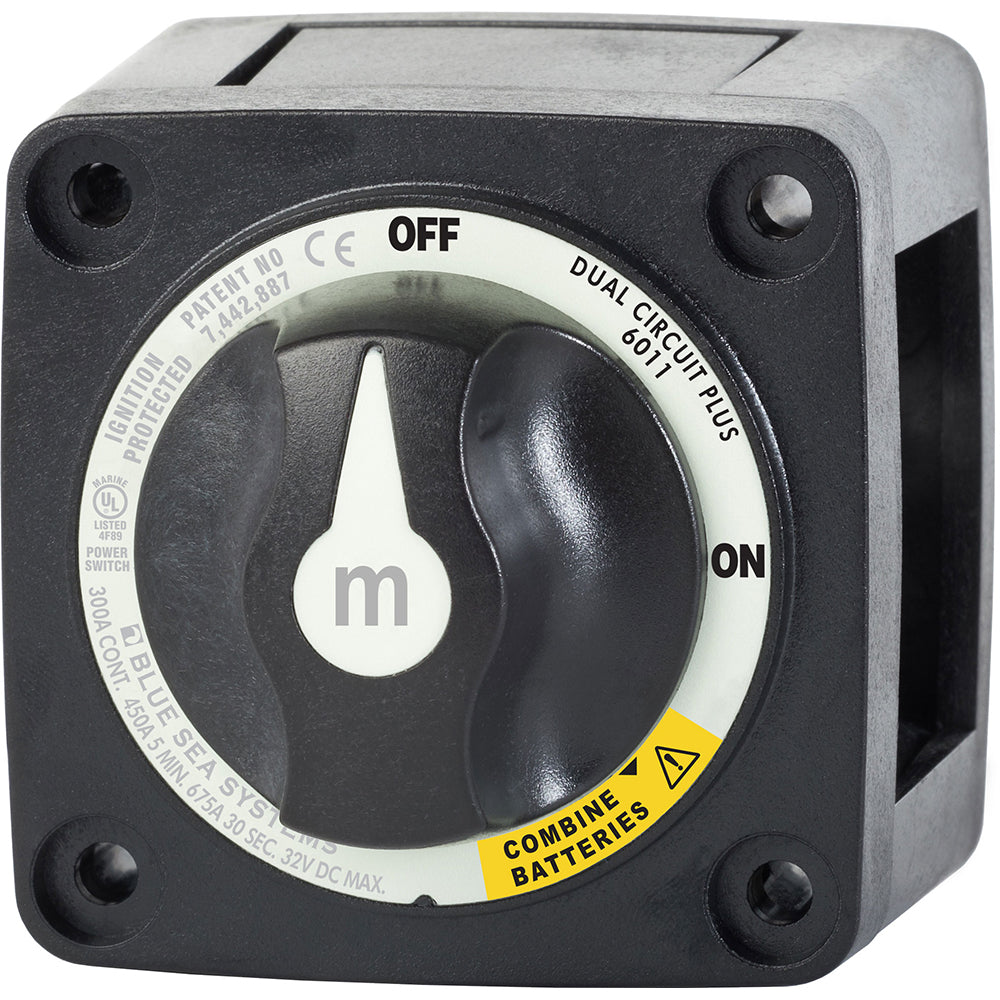

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black

The m-Series Mini Dual Circuit Plus Battery Switch in sleek black is the perfect solution for marine enthusiasts looking to efficiently manage their boat's power systems. Whether you need to switch between two isolated battery banks or combine them to power all your marine loads, this high-performance switch ensures seamless operation without any power interruptions.

Key Features

• Dual Circuit Plus Design: Allows simultaneous switching between two battery banks or combining them to supply all loads.
• Make-Before-Break Contact: Ensures uninterrupted power flow when switching between battery banks.
• Robust Construction: Handles continuous currents up to 300A and intermittent currents up to 450A.
• Compact and Durable: Weighing only 0.80lb (0.36 kg) with a sleek black finish, it fits seamlessly into your marine setup.
• Easy Installation: Compatible with 4/0 AWG cables and accepts #10 screws for secure mounting.

Technical Specifications

Attribute	Details
Switch Type	Dual Circuit Plus
Color	Black
Switch Positions	3
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating (10 sec)	1000A
Cranking Rating (1 min)	650A
Battery Inputs	2
Cable Clearance for 4/0 AWG Cables	1.12 in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accepts #10 Screw

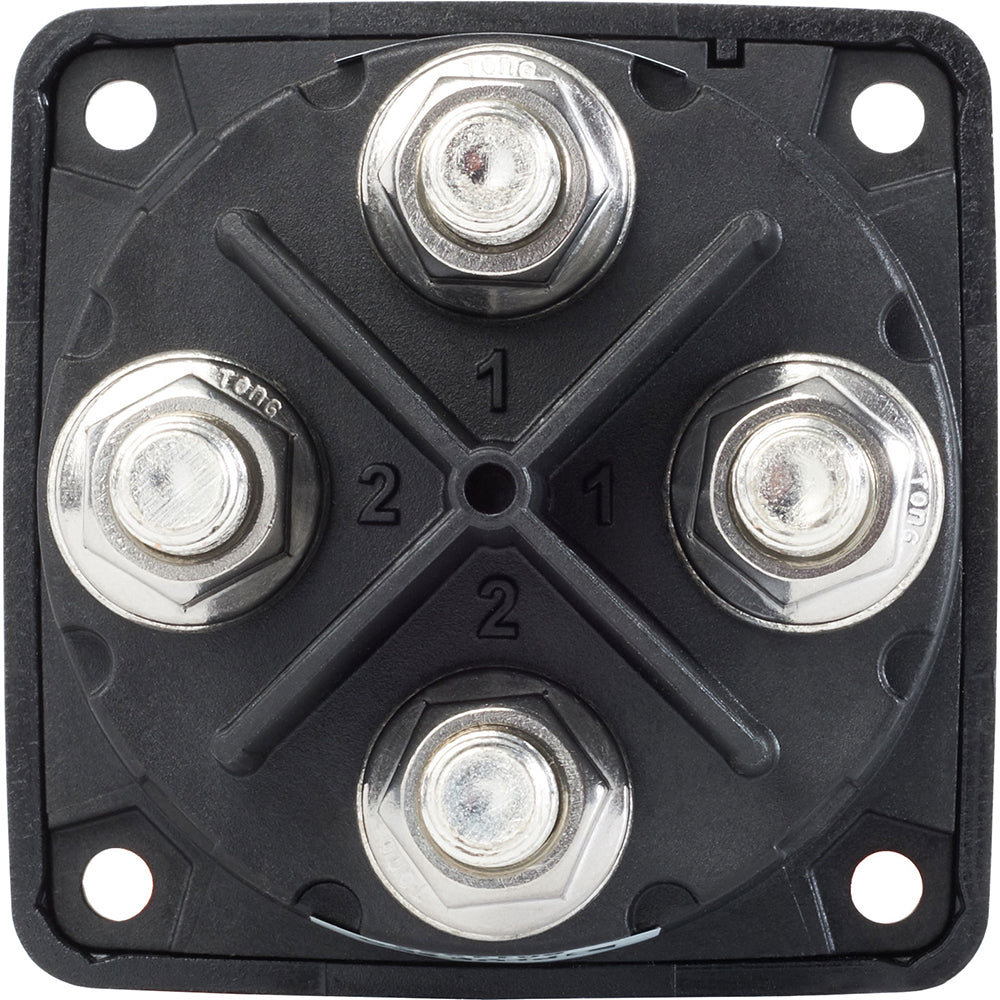

Terminal Stud Size	3/8"-16 (M10)
Terminal Stud Torque	120 in-lb (13.56 Nm)
Box Dimensions	3"H x 4"W x 7"L
Weight	0.80 lb (0.36 kg)
UPC	632085601126

Marine-Ready Design

Specifically engineered for marine applications, the m-Series Mini Battery Switch offers reliable performance in harsh marine environments. Its black finish not only adds a stylish touch to your boat's interior but also provides resistance against corrosion and UV exposure, ensuring long-lasting durability.

Safety and Compliance

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed installation instructions and maintenance guidelines, please refer to the Owner's Manual (PDF).
