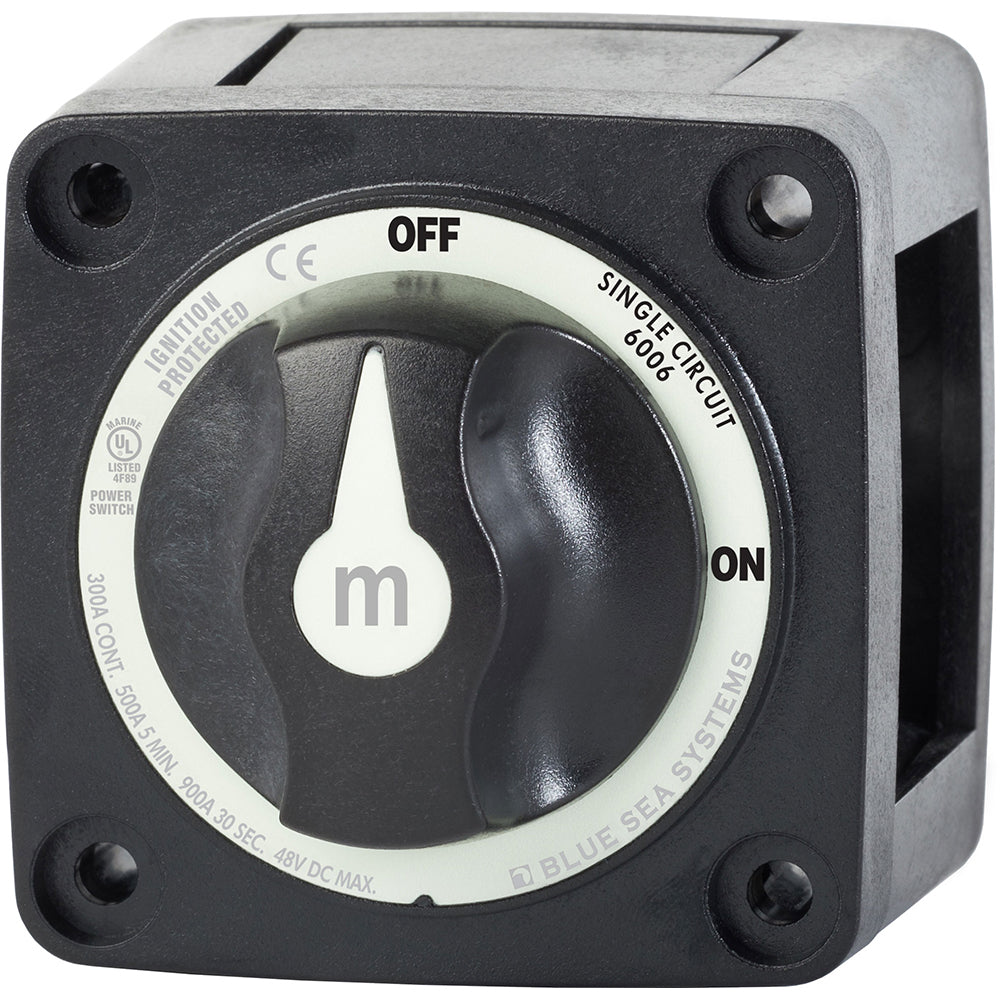

Blue Sea 6006200 Battery Switch Mini ON/OFF - Black

The m-Series (Mini) Battery Switch offers dependable control for your marine or RV electrical systems, allowing you to efficiently manage power distribution and ensure the safety of your vessel's electrical components.

Product Features

• Single Circuit ON/OFF: Switches a single battery to a single load group, providing precise control over your electrical circuits.
• Expandable Management: Multiple switches can be used to manage several isolated circuits, including cross-connecting for emergency paralleling.
• Ignition Protected: Safe for installation aboard gasoline-powered boats, safeguarding your electrical system from ignition hazards.

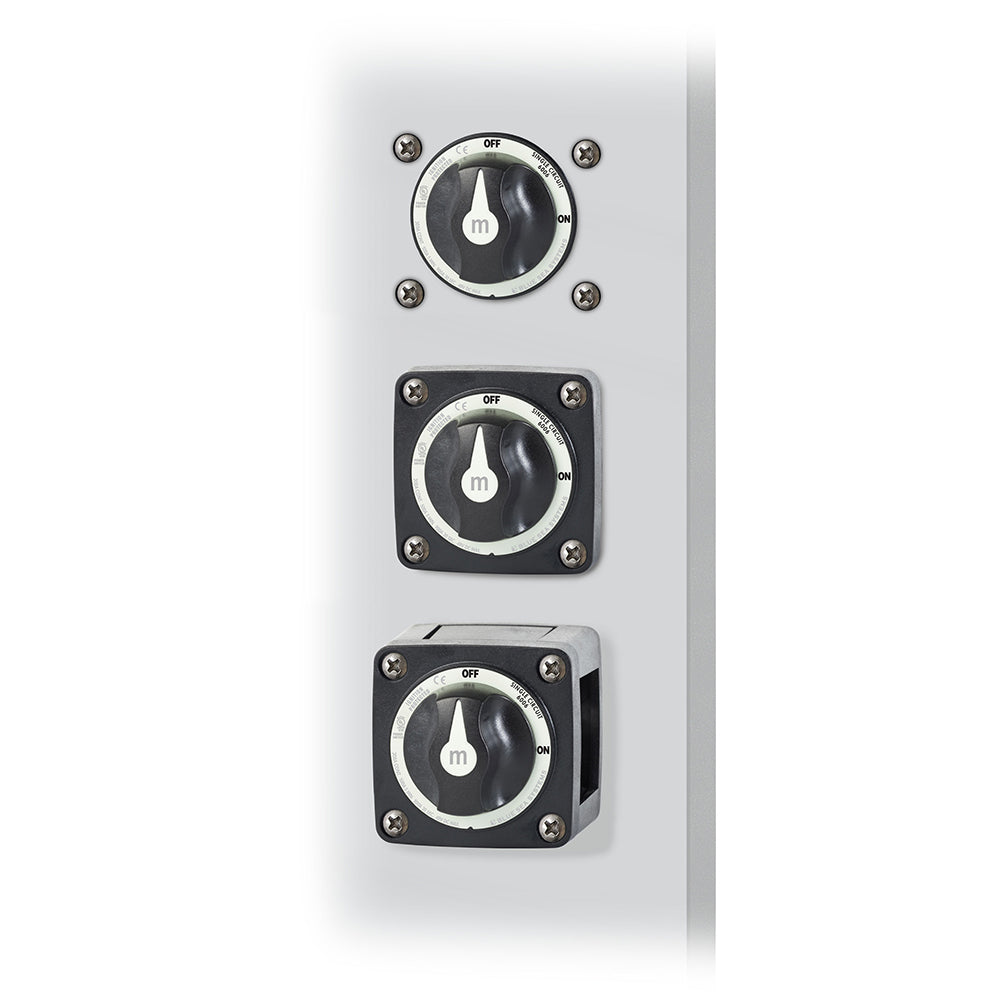

• Flexible Mounting Options: Case design allows for surface, front panel, or rear panel mounting, accommodating various installation environments.
• Enhanced Protection: Isolating cover with snap-on sections protects rear contacts from environmental factors.

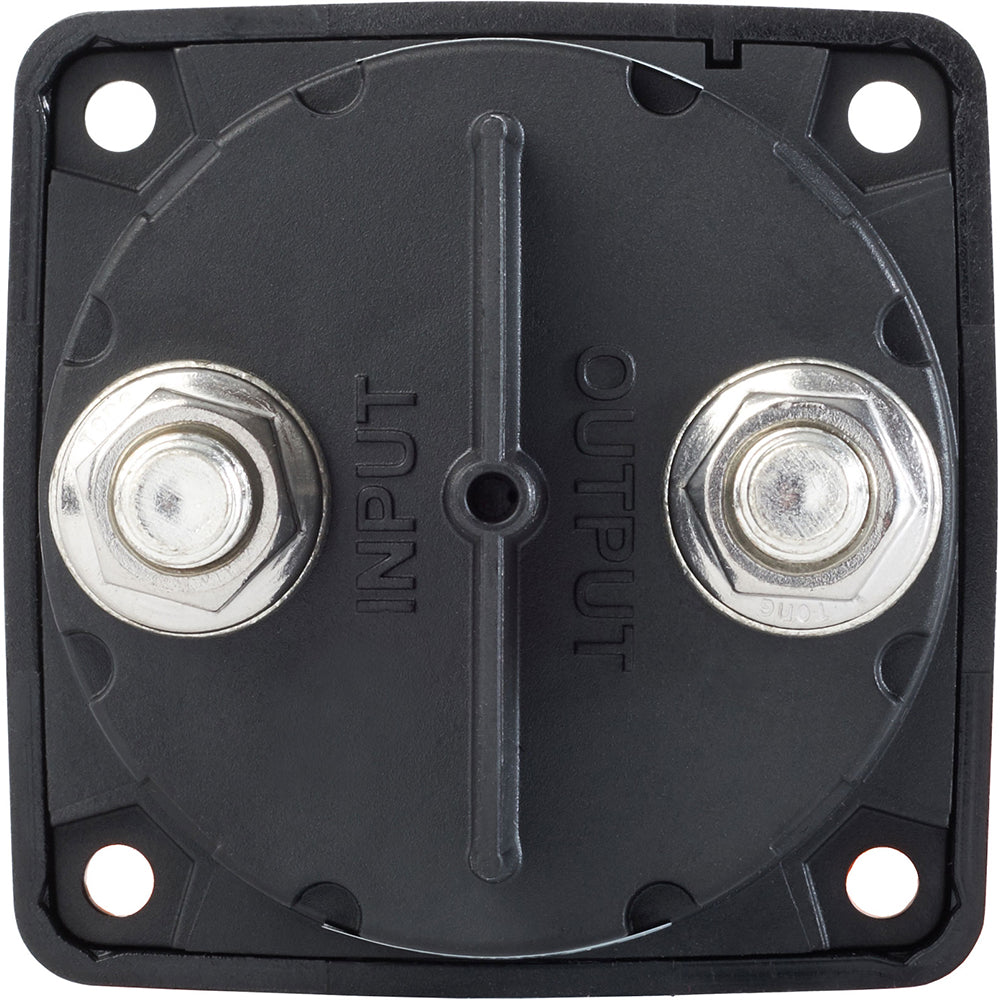

• High Conductivity & Corrosion Resistance: Features 3/8"-16 tin-plated copper studs that accept 3/8" and M10 ring terminals for maximum performance.
• Extended Stud Length: 7/8" (22.22mm) stud length allows for multiple cable terminals, facilitating complex wiring setups.
• Marine-Grade Construction: Built with all non-corrosive marine-grade metals and molded in durable reinforced polycarbonate for longevity in harsh environments.

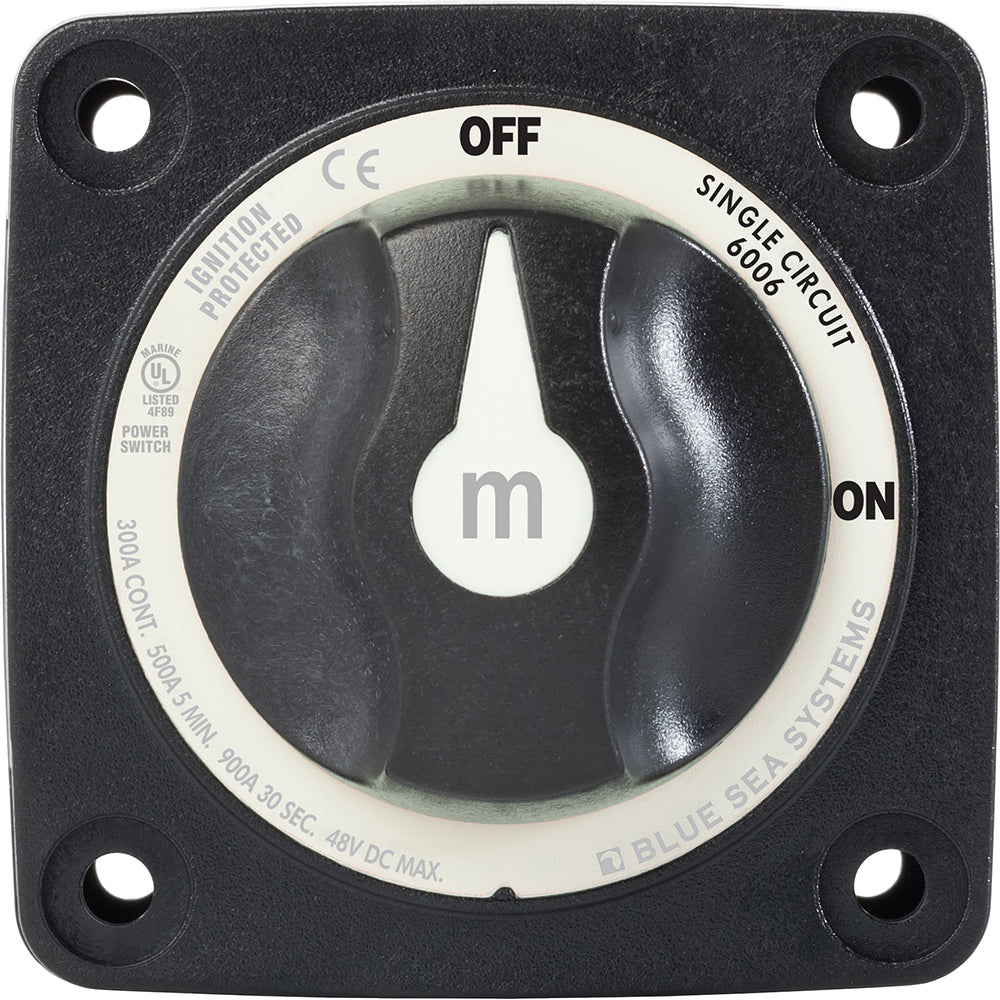

• User-Friendly Design: Tactile textures indicate knob position by feel only, and labels with international ON/OFF legends ensure intuitive operation.
• Security Features: Removable key or knob remains positively retained to prevent unauthorized access.
• Easy Circuit Identification: ICON label set included for clear circuit identification.

Technical Specifications

Model	6006200 - Black
Switch Type	Single Circuit ON/OFF
Stud Size	3/8"-16 tin-plated copper studs
Stud Length	7/8" (22.22mm)
Terminal Compatibility	Accepts 3/8" and M10 ring terminals
Case Material	Durable reinforced polycarbonate
Mounting Options	Surface, front panel, or rear panel mounting

Installation

The m-Series Mini Battery Switch is designed for versatile installation in marine and RV applications. Whether you prefer surface mounting, integrating into your front panel, or securing it to the rear panel, the switch's adaptable case design makes installation straightforward and secure.

Safety Information

Additional Resources

Owner's Manual (PDF)
