Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black
Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

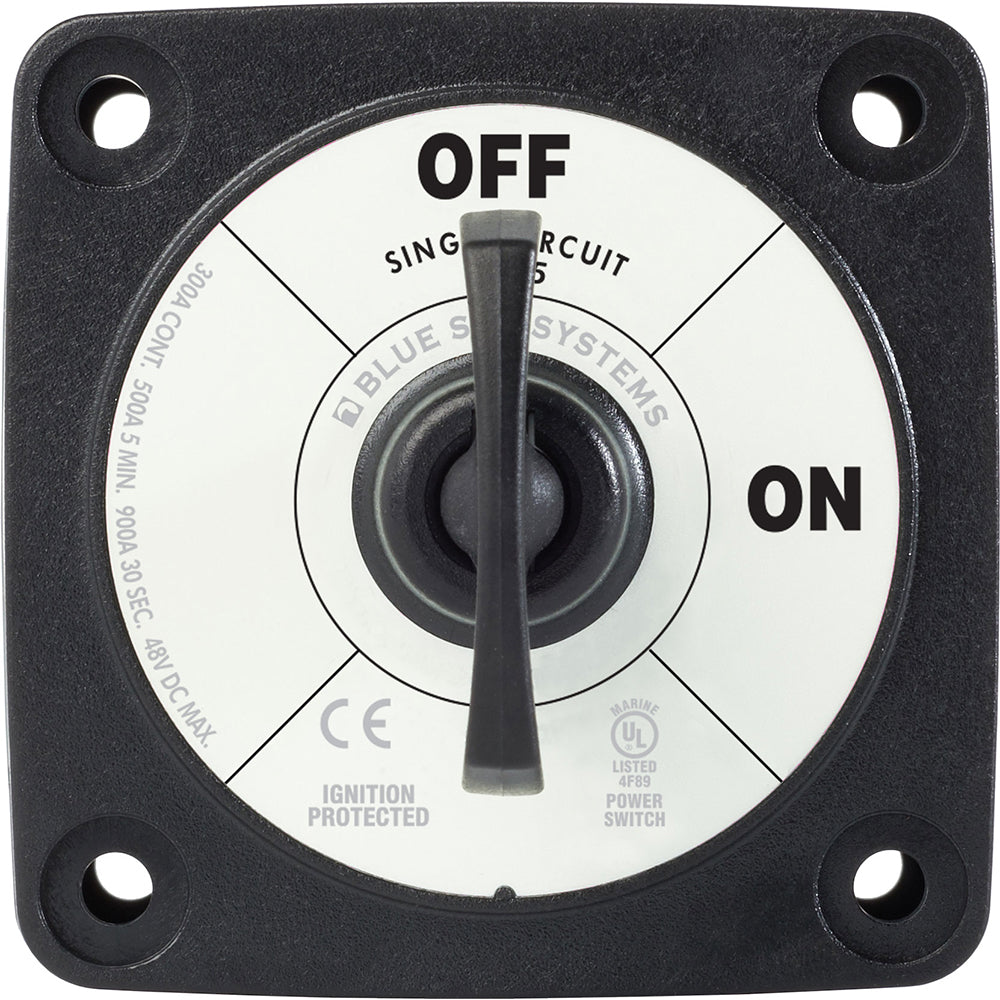

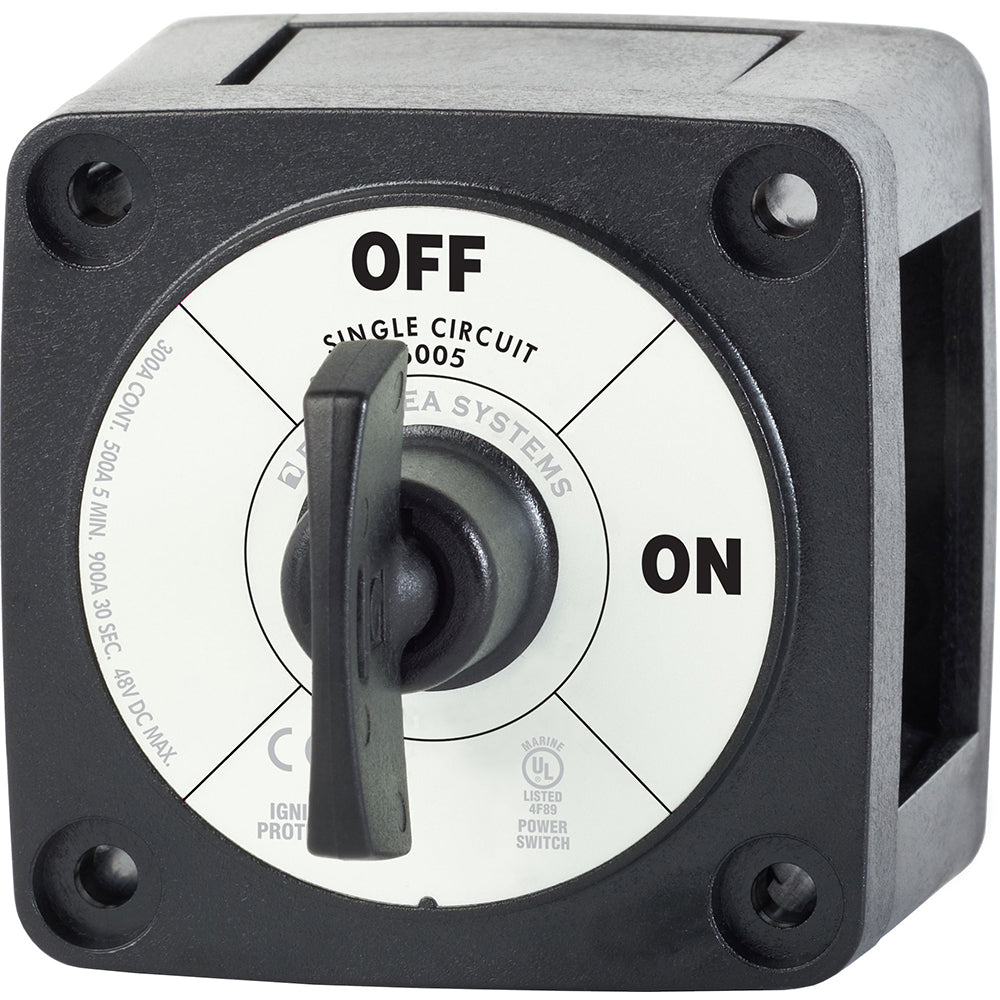

The m-Series Mini On-Off Battery Switch with Key in sleek black is specifically designed for marine and boating applications, offering dependable control over your vessel’s electrical systems. Its robust construction ensures safety and durability, making it an ideal choice for gasoline-powered boats. Whether you're managing a single battery or controlling power to various load groups, this battery switch provides seamless operation and reliable performance on the water.
Features
- Switches a single battery to a single load group
- Ignition protected-safe for installation aboard gasoline-powered boats

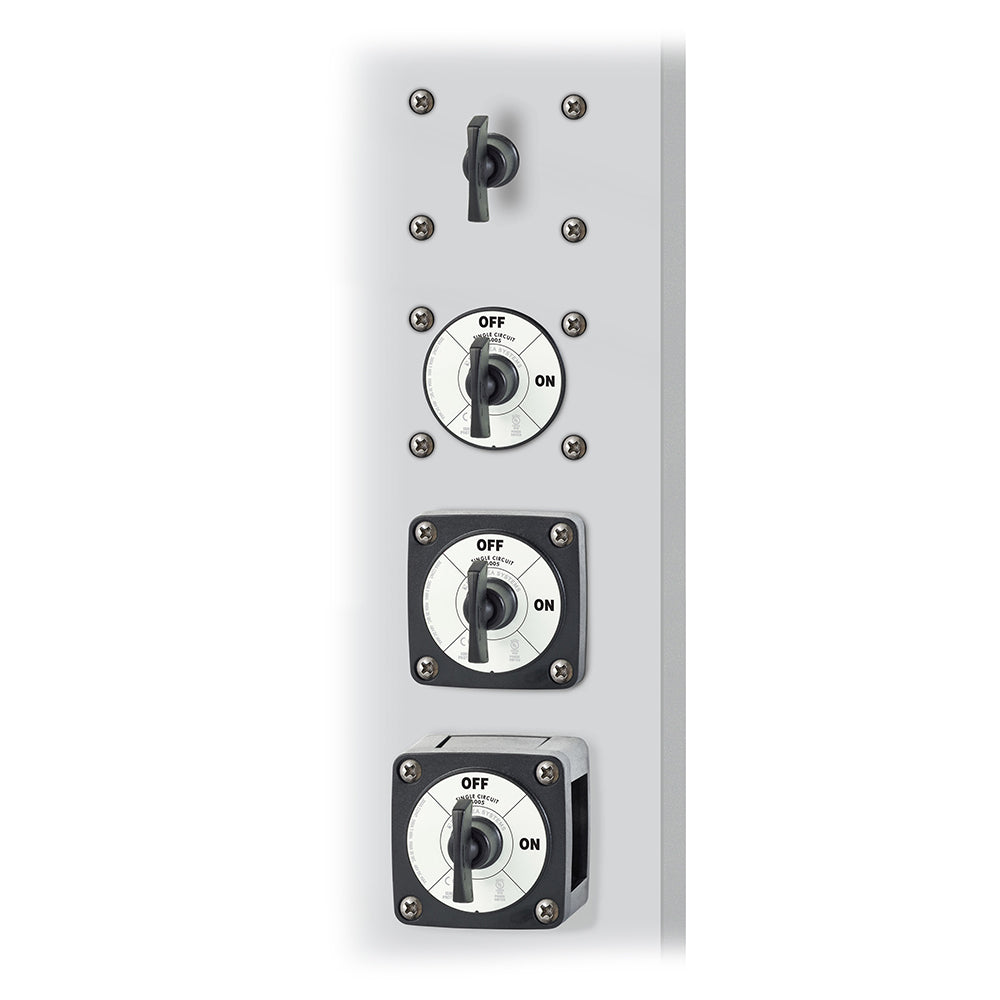

- Versatile mounting options: surface, front panel, or rear panel mounting

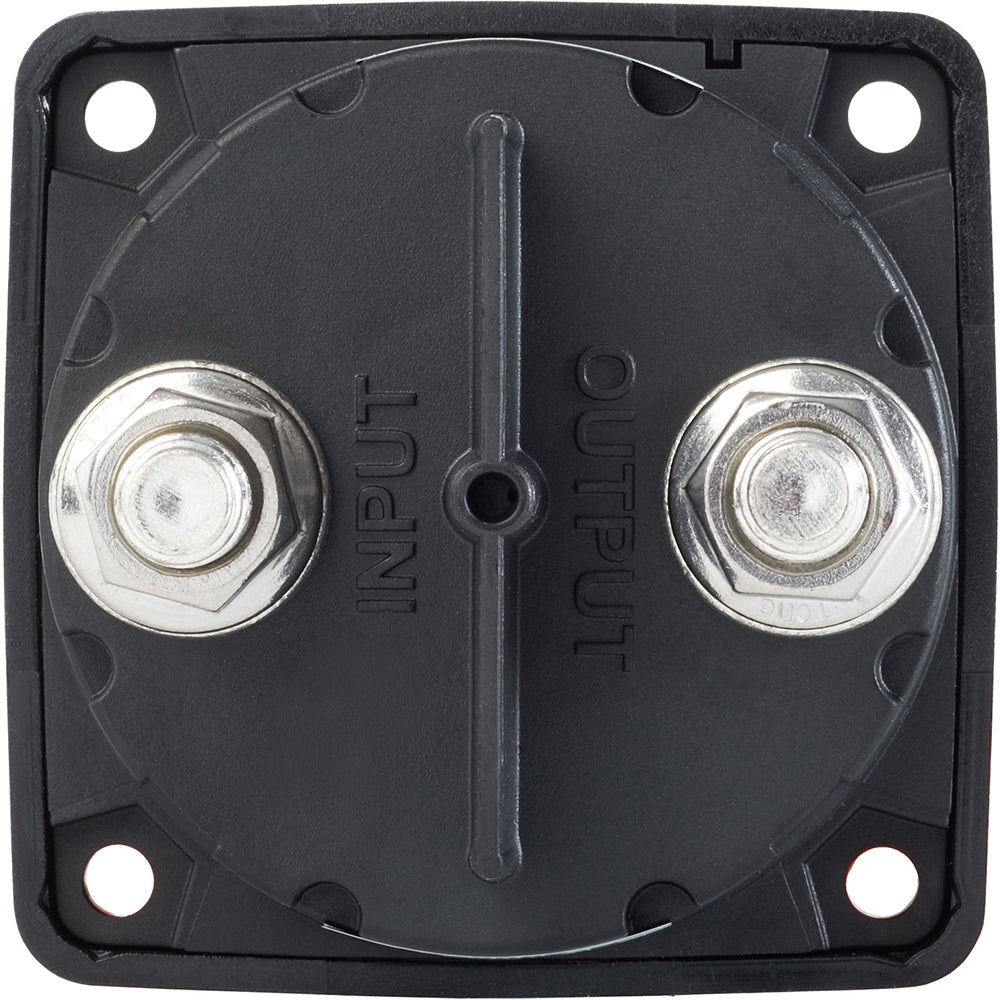

- Isolating cover with snap-on sections protects rear contacts
- Compact and lightweight design for easy installation
- Includes key for secure operation
Technical Specifications
| Specification | Details |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Black |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 sec | 1500A |
| Cranking Rating 1 min | 775A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.62lb (0.28 kg) |
| Box Dimensions | 3"H x 4"W x 7"L |
| UPС | 632085600525 |
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to P65Warnings.ca.gov.
Installation and Usage
The m-Series Mini On-Off Battery Switch is designed for easy installation with versatile mounting options. Whether you prefer surface mounting, front panel installation, or mounting on the rear panel, this switch adapts to your specific setup needs. The isolating cover with snap-on sections ensures that the rear contacts remain protected from the marine environment, enhancing the switch’s longevity and reliability.
Additional Resources
For detailed instructions and further information, please refer to the Owner's Manual (PDF).
