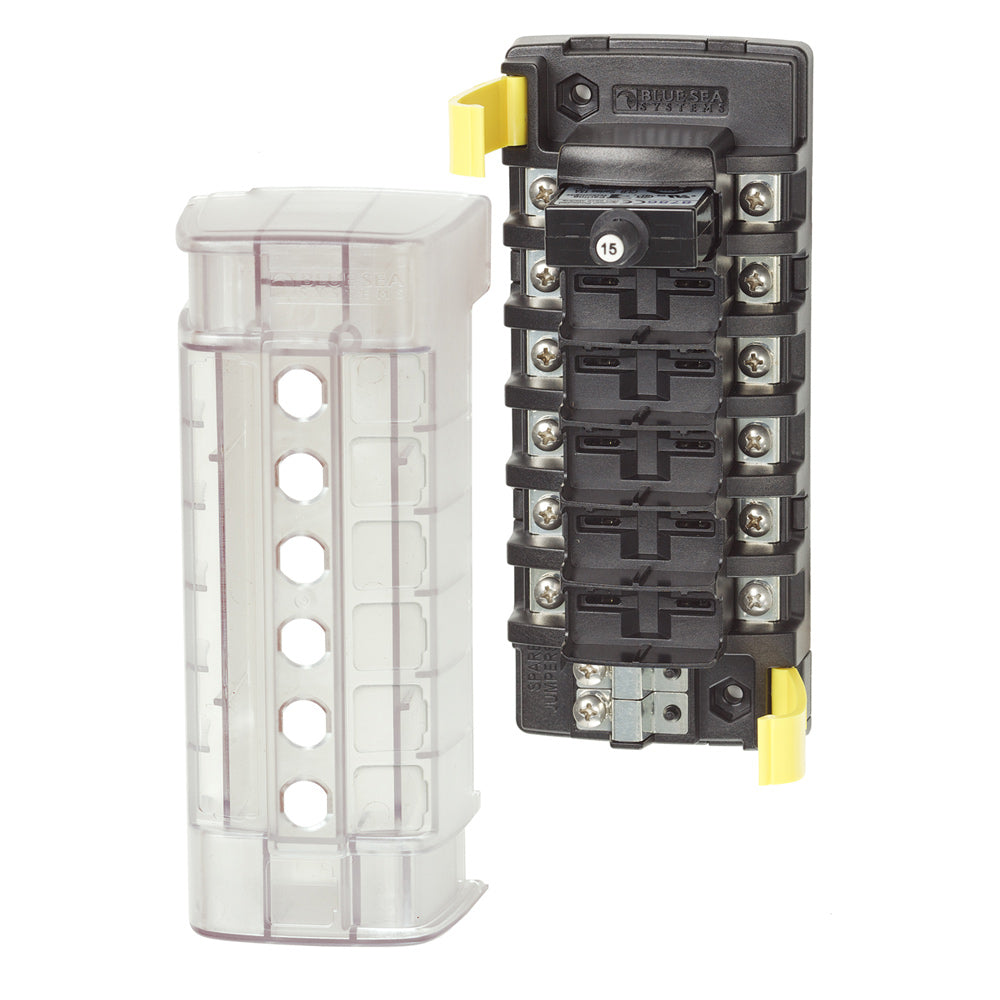

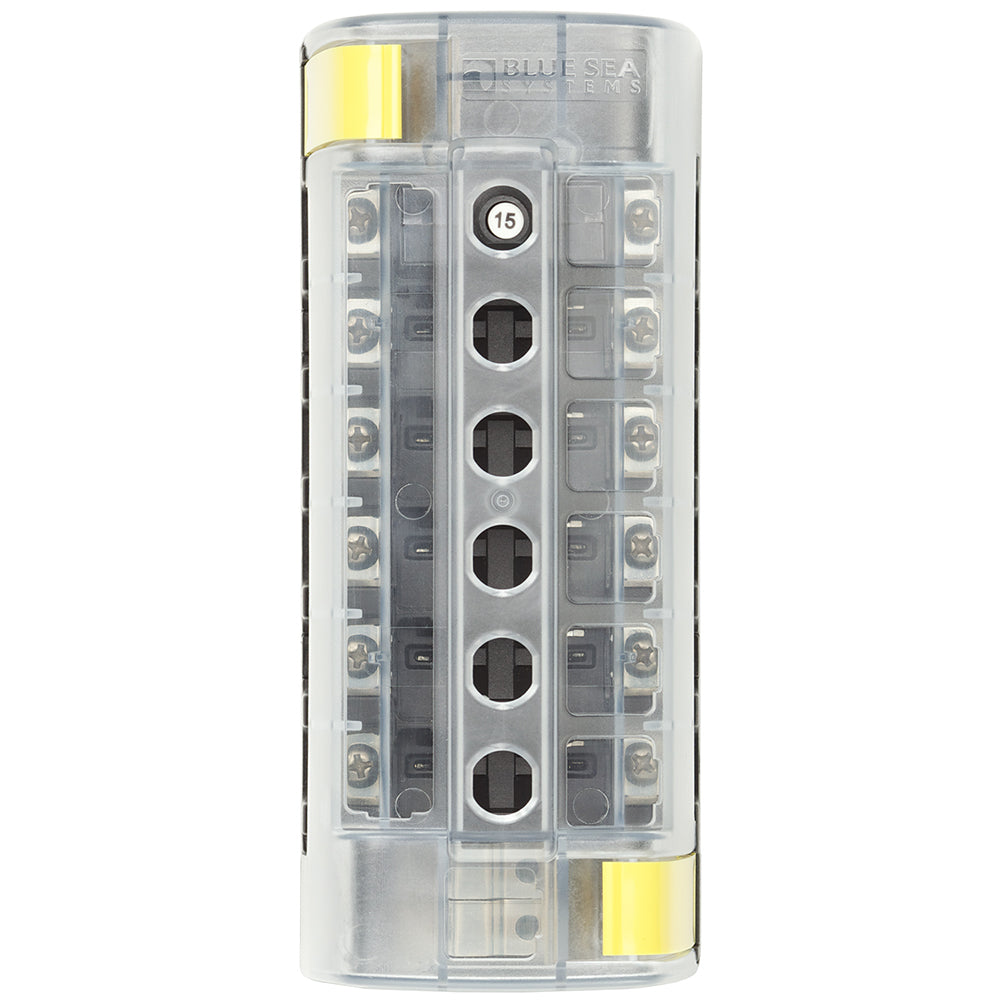

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position
Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The ST CLB Circuit Breaker Block - 6 Position is a dependable and high-performance solution tailored for marine and boating electrical systems. Engineered to manage multiple circuits with ease, it ensures optimal safety and efficiency, making it an essential component for any vessel's electrical setup.
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals for durable and corrosion-resistant connections
- Clear insulating cover with square format label recesses, meeting ABYC/USCG insulation standards
- Easy-to-open clip-on cover for swift access and maintenance
- Breakouts provide wire access in two directions, offering flexible installation options
- Compatible with ring terminals for secure connections
- Optional installation of push button waterproof boots or dress nuts over the cover for enhanced protection
Specifications
| Circuits | 6 |
|---|---|
| Maximum Amperage | 32A per circuit, 40A per jumped circuit group |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Source | Independent Source |
| Operating Temperature | -10°C to 60°C |
| Mounting Centers | 5.63" (143 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 6.69" (169.93 mm) |
| Product Weight | 0.75 lb (0.34 kg) |
| Box Dimensions | 3"H x 5"W x 11"L |
| Box Weight | 0.8 lbs |
| UPC | 632085050504 |
