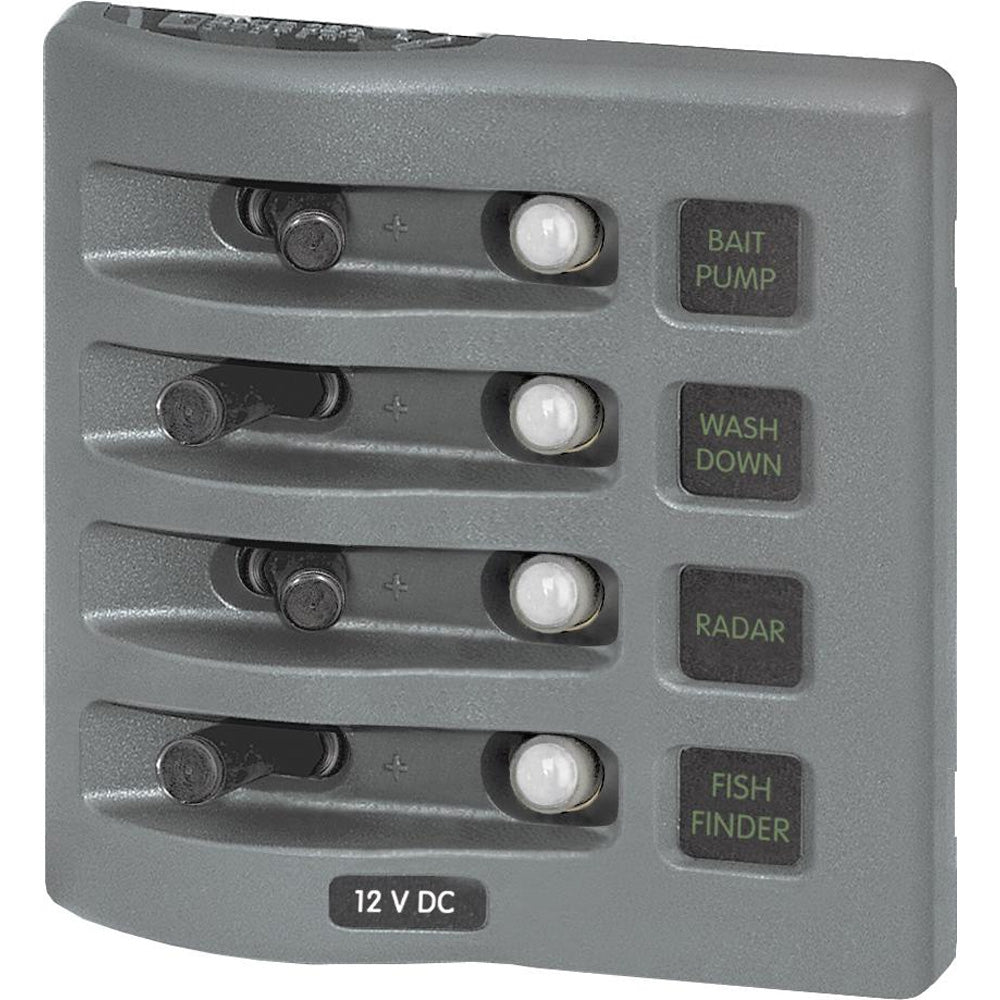

Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey

The WeatherDeck™ Water Resistant Circuit Breaker Panel is the ultimate solution for marine and boating enthusiasts seeking reliable and durable electrical management on their vessels. Engineered to withstand harsh marine environments, this panel ensures seamless control and protection of your boat's electrical systems, enhancing both safety and performance.

Key Features

• IP67 Rated: Temporary immersion protection for up to 30 minutes, ensuring durability against water exposure.
• Marine-Optimized Design: Perfectly suited for flybridge and open cockpit applications, providing versatile installation options.
• Independent Label Backlighting: Easily switch and dim controls with individually backlit labels for enhanced visibility.
• Digital Dimming Compatibility: Seamlessly integrates with all Blue Sea Systems Digital Dimmers for customizable lighting control.
• Flexible Mounting: Each panel can be installed in four different orientations to suit your boat's layout.
• Enhanced Readability: Green LEDs improve low-light visibility, with all labels illuminated when the panel is powered, regardless of individual switch positions.

Technical Specifications

Waterproof	Yes
IP Rating	IP67
Voltage	12V / 24V DC
Power Type	DC
Circuit Protection	Circuit Breaker
Maximum Amperage	15A @ 12V DC per circuit / 9A @ 24V DC per circuit
Panel Cumulative Rating	45A
Backlit Label	Green LED
Backlighting Amperage	10mA per illuminated circuit
Backlighting Voltage	12V or 24V DC
Dimensions	Height: 4.3" | Width: 4.25" | Depth: 3.5"
Weight	1 lb
UPC	632085043742

What's Included

• (4) 4135 Push Button Reset Only Circuit Breaker Boots - Clear
• (4) 4138 WeatherDeck® Toggle Switch Boots - Black
• (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (4) 7056 Push Button Reset Only Quick Connect Circuit Breakers - 15 Amps

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF) to get started with installation and setup.
