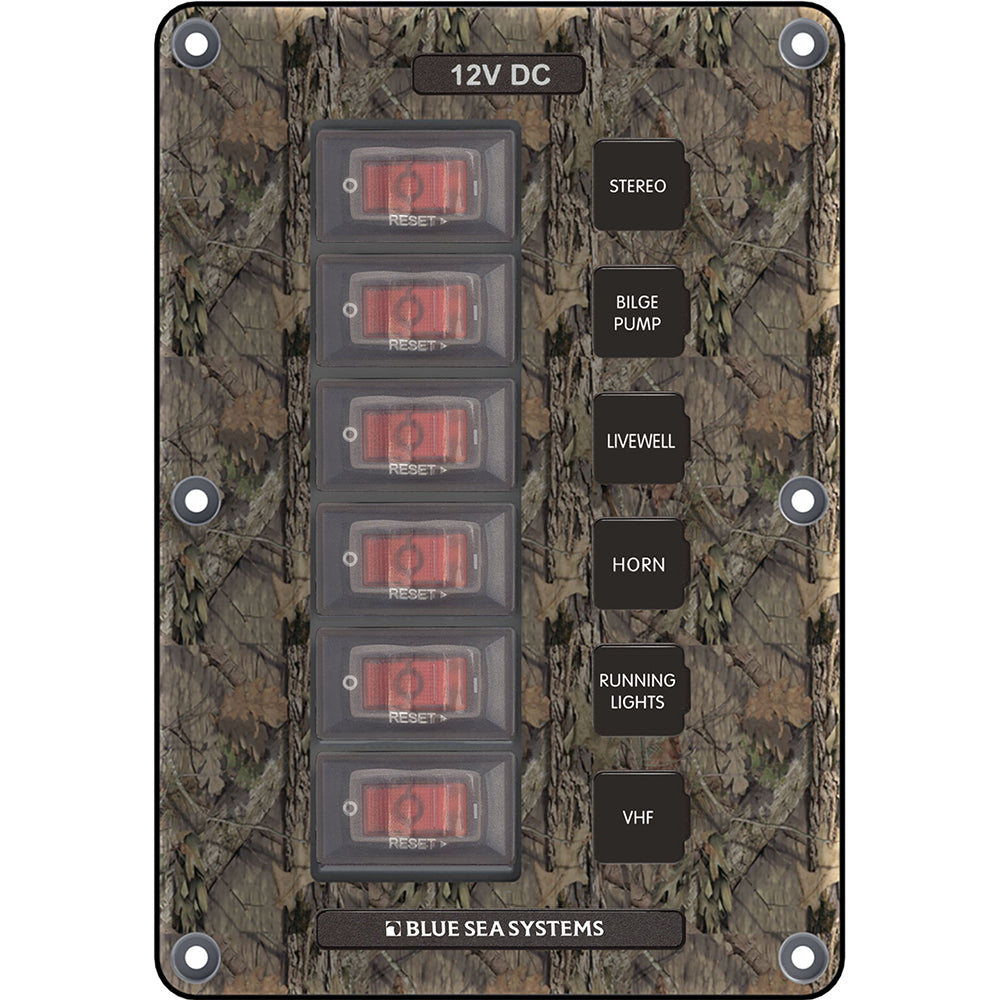

Blue Sea 4325 Circuit Breaker Switch Panel 6 Position - Camo

The 4325 Circuit Breaker Switch Panel 6 Position in Camo is engineered specifically for marine and boating applications, offering robust power management and protection in exposed mounting environments.

Features

• Illuminated 15A Circuit Breakers: Provide easy switching, clear “ON” indication, and reliable overcurrent protection.
• Universal Mounting: Industry-standard sizes and mounting points allow for seamless retrofitting into existing marine electrical systems.
• Durable Construction: The polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and resistant to corrosion, ensuring longevity in harsh marine conditions.
• Waterproof Protection: Silicon breaker boots and gaskets prevent water ingress, safeguarding the internal components against moisture and corrosion.
• Compact Design: Low profile enables easy installation in tight spaces typical of marine vessels.
• Quick Wiring: Fast-on circuit breaker connectors facilitate speedy and efficient wiring installations.
• Secure Power Connections: Features a two-wire connection system using #10 ring terminals that screw securely to bus bars, ensuring stable and safe electrical connections.
• Customizable Labels: Includes a set of 15 square format circuit labels for easy identification. Additional standard or custom labels are available through Blue Sea Systems.

Specifications

Attribute	Details
Color	Camo
Number of Positions	6
Nominal Voltage	12 VDC
Maximum Amperage	45A
Terminal Type	1/4" Male Quick Connect
Hardware Included	Stainless Steel #6 x 5/8" mounting screws
Ring Terminal Size	M5 (#10)
AC/DC	DC
Waterproof	Resistant
Box Dimensions	3" H x 6" W x 10" L
Weight	0.6 lbs
UPC	632085043254
