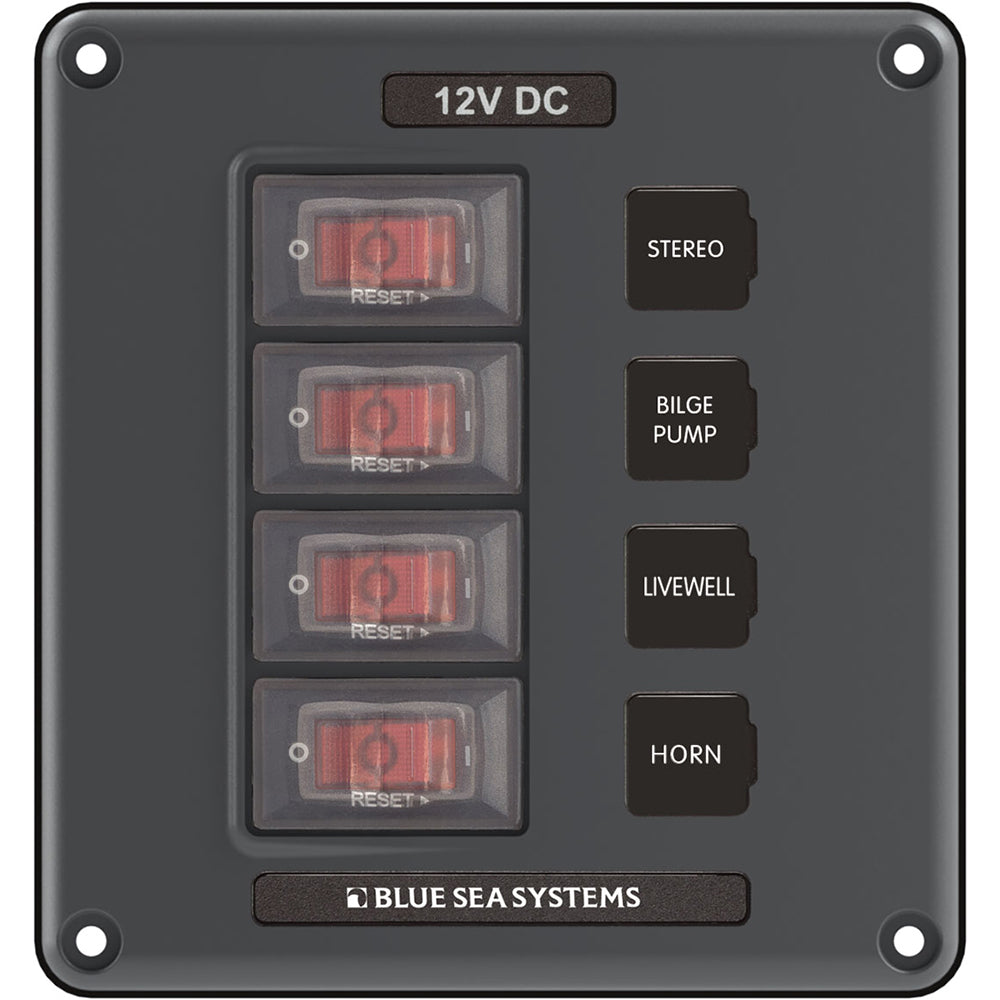

Blue Sea 4320 Circuit Breaker Switch Panel 4 Position - Gray

Enhance your boat’s electrical management with the 4320 Circuit Breaker Switch Panel in a sleek gray finish. Engineered for exposed mounting applications, this durable switch panel ensures reliable control and protection for your DC-powered marine circuits.

Key Features

• Illuminated 15A Circuit Breakers: Provide easy switching, “ON” indication, and overcurrent protection for enhanced safety.
• Easy Retrofitting: Industry-standard sizes and mounting make it simple to integrate into existing marine electrical systems.
• Durable Construction: Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and resistant to corrosion, ensuring longevity in harsh marine environments.
• Water-Resistant Protection: Silicon breaker boots and gasket prevent water ingress, safeguarding your electrical connections.
• Low Profile Design: Compact size allows for installation in tight spaces, optimizing your boat’s layout.
• Quick Wiring: Fast-on circuit breaker connectors facilitate rapid and secure wiring connections.
• Simple Power Connection: Two-wire connection for powering all panels requires #10 ring terminals that securely screw to bus bars.
• Customizable Labels: Includes a set of 15 square format circuit labels that are easy to replace. Additional standard or custom labels available through Blue Sea Systems.

Specifications

Attribute	Details
Color	Gray
Positions	4
Nominal Voltage	12 VDC
Maximum Amperage	45A
Terminal Type	1/4" Male Quick Connect
Hardware	Stainless Steel #6 x 5/8" mounting screws
Ring Terminal Size	M5 (#10)
Voltage	12V DC
Max Breaker Quantity	4
Waterproof	Resistant
Box Dimensions	3"H x 6"W x 10"L
Weight	0.5 lbs
UPC	632085043209
