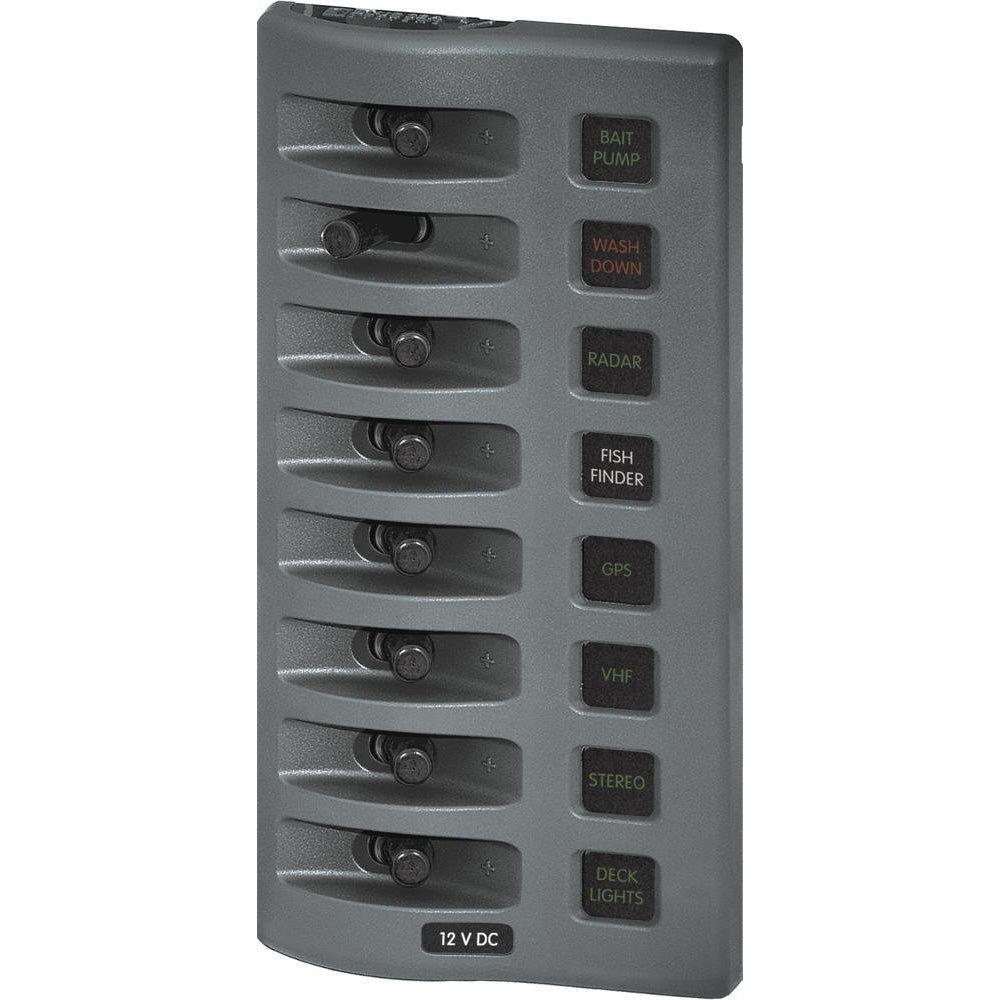

Blue Sea 4308 WeatherDeck Water Resistant Fuse Panel - 8 Position - Grey

The WeatherDeck™ Water Resistant Fuse Panel is the ultimate solution for managing your boat's electrical systems, designed specifically for marine environments where durability and reliability are paramount. Whether you're outfitting a flybridge or an open cockpit, this fuse panel ensures your circuits are protected against the harsh elements, providing peace of mind on every voyage.

Product Overview

The WeatherDeck™ Fuse Panel features a robust gray, water-resistant casing rated at IP67, ensuring protection against immersion up to 1 meter for 30 minutes when properly mounted with a watertight mounting gasket. Its versatile design allows installation in four different orientations, making it adaptable to various mounting configurations on your vessel.

Features

• IP67 rated front for enhanced water resistance
• Designed for flybridge and open cockpit applications
• Independent label backlighting circuit with remote switching and dimming capabilities
• Flexible mounting options with four different orientations
• Integrated ATO/ATC fuse-based circuit protection
• Bicolored LEDs for quick circuit status identification: OFF (Red), ON (Green), or Blown (No Color). Absence of lights indicates no power to the panel.

Specifications

Waterproof	IP67
AC/DC	DC
Voltage	12V DC
Positions	8
Maximum Amperage	15A @ 12V DC (per circuit)
Panel Cumulative Rating	100A
Backlit Label	Bicolored LED
Backlighting Amperage	10mA / illuminated circuit
Backlighting Voltage	12V DC
Dimensions	Height: 7.7" | Width: 3.88" | Depth: 2.5"
Box Dimensions	5"H x 6"W x 10"L
Weight	1.5 lbs
UPC	632085043087

What's Included

• 8 × 4138 WeatherDeck® Toggle Switch Boots - Black
• 8 × 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
• 1 × 4215 Waterproof DC Label Kit - 30 Black Square Labels (V1)
• 8 × 5242 ATO/ATC Fuse - 15 Amp

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)
