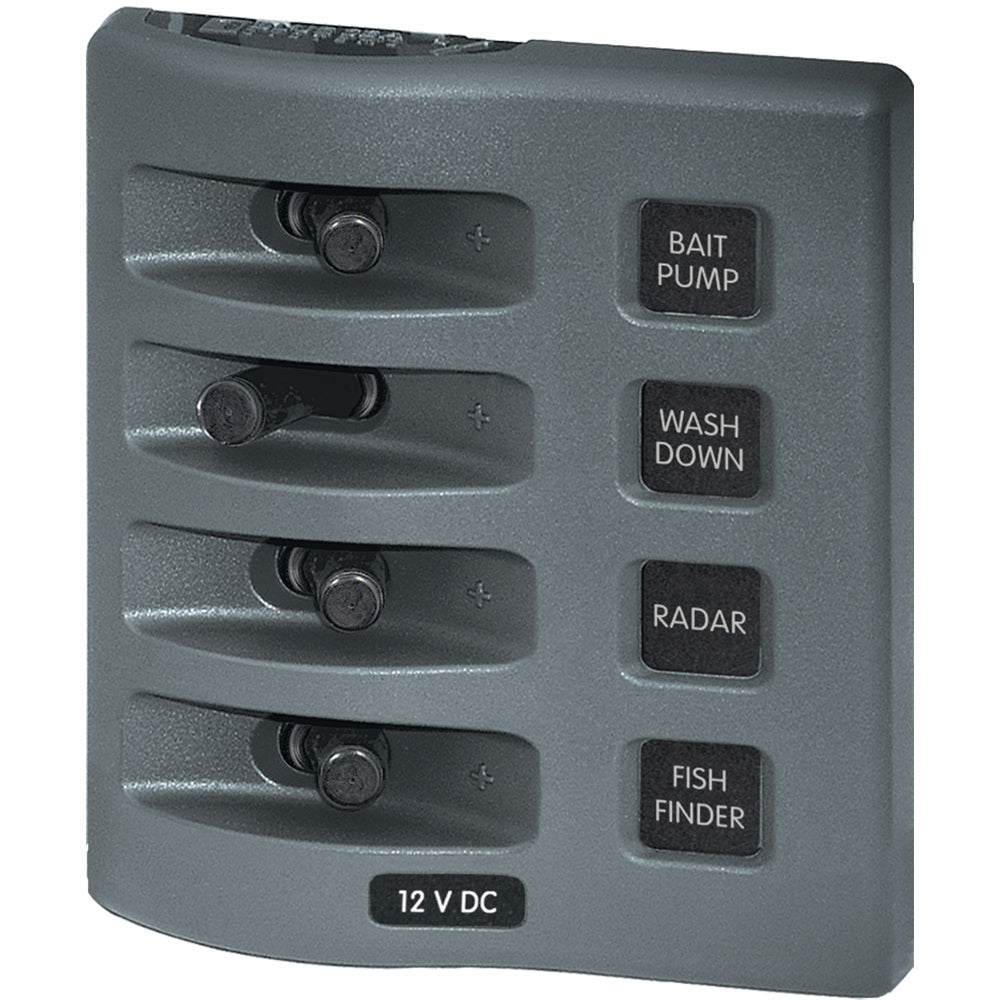

Blue Sea 4305 WeatherDeck 12V DC Waterproof Switch Panel - 4 Posistion

Enhance your boat's electrical management with the WeatherDeck® 12V DC Waterproof Switch Panel - 4 Position. Engineered for marine environments, this robust switch panel ensures reliable control of your vessel’s systems, even in challenging weather conditions.

Features

• Integrated Switch Guards: Minimize the risk of accidental switching, providing a safer onboard experience.
• Flexible Mounting: Install the panel in any of four orientations to suit your boat’s layout.
• IP67 Waterproof Rating: Offers complete protection against dust and water when mounted with the included watertight gasket.
• UV Stabilized Faceplate: The weather-resistant faceplate snaps on and off for easy access to components while hiding mounting screws for a sleek appearance.

Specifications

Waterproof	Yes
Number of Positions	4
Nominal Voltage	12V DC / 24V DC
Circuit Protection	None
Maximum Amperage	15A @ 12V DC per circuit
Panel Cumulative Rating	45A
Material	Reinforced Polycarbonate
Dimensions	Height: 4.30" (109.22 mm) Width: 3.88" (98.55 mm) Depth: 2.50" (63.5 mm)
Weight	0.90 lb (0.41 kg)
UPC	632085043056

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Information

• Power Type: DC
• Maximum Breaker Quantity: 4
• Voltage Options: 12V / 24V
• Box Dimensions: 4" H x 6" W x 7" L
• Weight: 0.7 lbs
• UPC: 632085043056

Owner's Manual (PDF)
