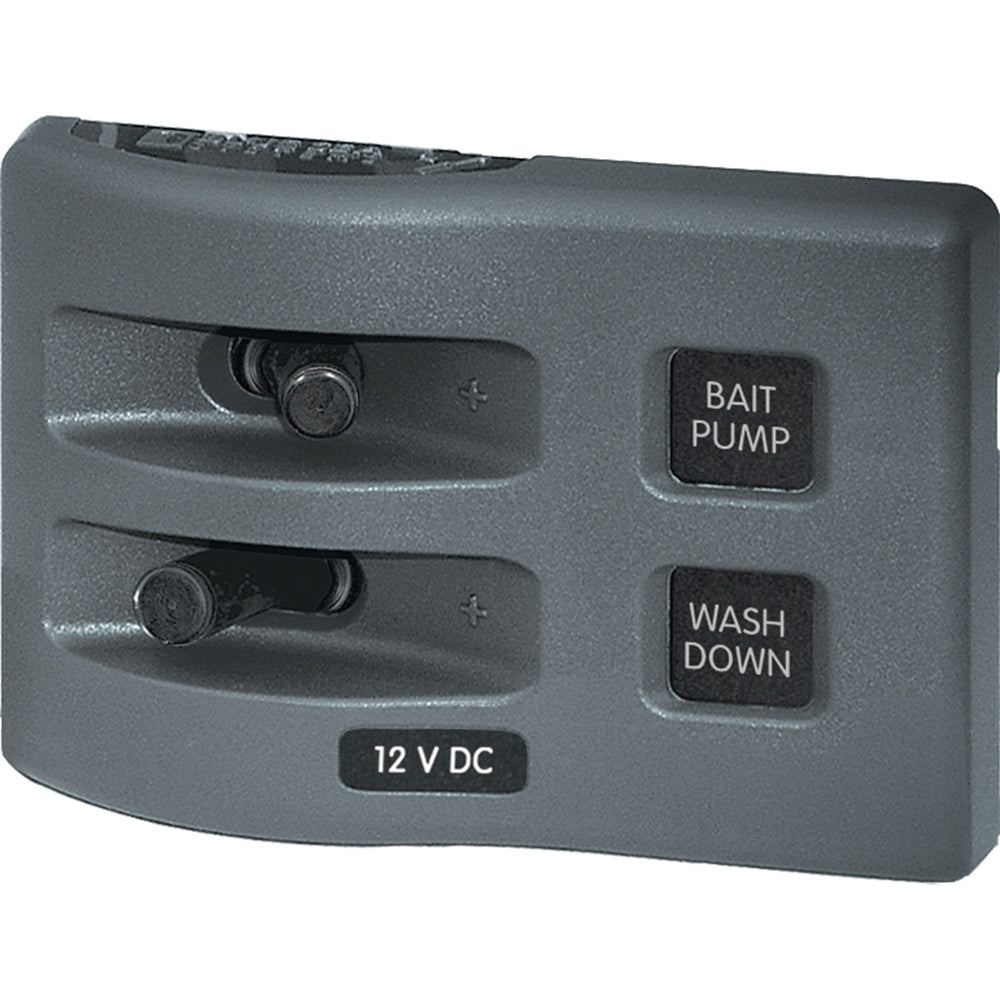

Blue Sea 4303 WeatherDeck 12V DC Waterproof Switch Panel - 2 Position

The WeatherDeck® 12V DC Waterproof Switch Panel is engineered specifically for marine and boating applications, providing reliable and secure control of your vessel's electrical systems. With its robust construction and weather-resistant features, this 2-position switch panel ensures seamless operation even in the most challenging maritime environments.

Key Features

• Integrated switch guards minimize the risk of accidental switching, ensuring safe operation on board.
• Versatile mounting options with four different orientations to suit various installation needs.
• Front panel rated IP67, offering excellent protection against water ingress when installed with a watertight mounting gasket.
• UV-stabilized, weather-resistant faceplate that snaps on and off, providing easy access to components and concealing mounting screws for a clean installation.

Specifications

Attribute	Details
Waterproof	IP67 Rated
Positions	2
Nominal Voltage	12V DC / 24V DC
Circuit Protection	None
Maximum Amperage	15A @ 12V DC (per circuit)
Material	Reinforced Polycarbonate
Height	2.60" (66.04 mm)
Width	3.88" (98.55 mm)
Depth	2.50" (63.5 mm)
Weight	0.52 lb (0.24 kg)
Max Breaker Quantity	2
Box Dimensions	4" H x 6" W x 6" L
Weight	0.45 lbs
UPC	632085043032

Installation

The WeatherDeck® Switch Panel is designed for easy installation on your boat. Its versatile mounting options allow you to secure the panel in the orientation that best fits your vessel's layout. Ensure that you use the provided watertight mounting gasket to achieve the IP67 rating, protecting the panel from water and environmental elements effectively.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Owner's Manual (PDF)
