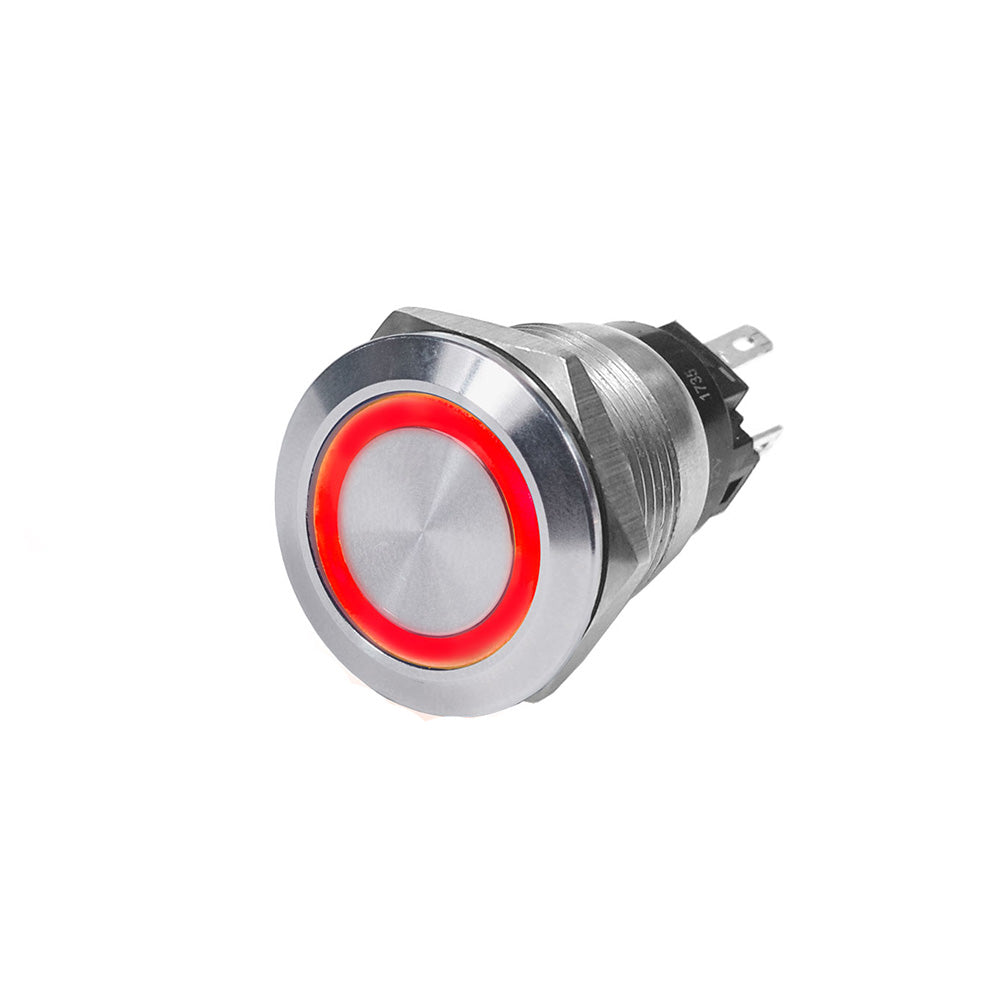

Blue Sea 4163 SS Push Button Switch - Off-(On) - Red - 10A

The 4163 SS Push Button Switch is engineered for marine and boating enthusiasts who demand reliability and performance in their electrical systems. With its robust construction and versatile functionality, this switch is perfect for controlling various onboard equipment, ensuring smooth operation even in the harshest marine environments.

Features

• 10A continuous current rating, ideal for marine applications
• Available in Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST) configurations
• Configurable wiring for normally open or normally closed circuits
• Easy installation with .110 inch quick connect terminals included
• Independent LED illumination with separate contact for LED power
• Durable stainless steel construction resistant to corrosion
• Mounts securely with a 19mm mounting hole
• Rated for 18,000 switching cycles to withstand frequent use

Specifications

Action	OFF-(ON)
Amperage	10A @ 12V DC
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Operating Temperature Range	-10°C to 70°C
Storage Temperature Range	-55°C to 85°C
Illumination	Independent – Separate contacts for LED power
Mounting Hole	19mm
Switching Cycles	18,000
Termination	5 – 0.110 inch Quick Connect terminals
Color	Stainless
Box Dimensions	2"H x 3"W x 5"L
Weight	0.1 lbs
UPC	632085041632
