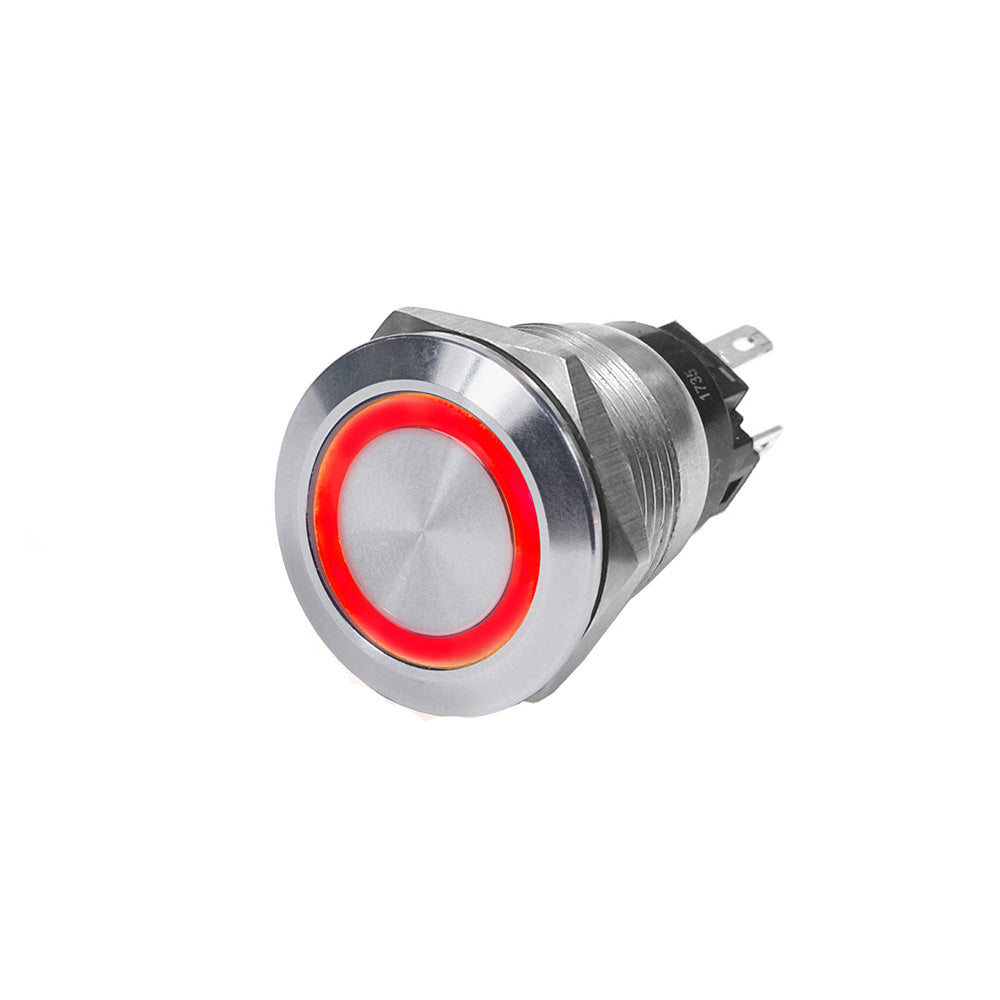

Blue Sea 4162 SS Push Button Switch - Off-On - Red - 10A

Experience reliable control with our 4162 SS Push Button Switch, engineered specifically for marine and boating applications. This robust switch delivers durable performance in harsh marine environments, ensuring seamless operation for your vessel's electrical systems.

Key Features

• 10A Continuous Current Rating for dependable performance
• Flexible Wiring Options: Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST)
• Configurable for Normally Open or Normally Closed Operation to suit various applications
• Easy Installation with 0.110-inch Quick Connect Terminals (Included in Retail Package)

Technical Specifications

Action	OFF-ON
Amperage	10A @ 12V DC
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Operating Temperature Range	-10°C to 70°C
Storage Temperature Range	-55°C to 85°C
Illumination	Independent – Separate contacts for LED power
Mounting Hole Size	19mm
Switching Cycles	18,000
Termination	5 x 0.110-inch Quick Connect Terminals

Product Details

• Color: Stainless
• Action: On/Off
• Box Dimensions: 2"H x 3"W x 5"L
• Weight: 0.1 lbs
• UPC: 632085041625
