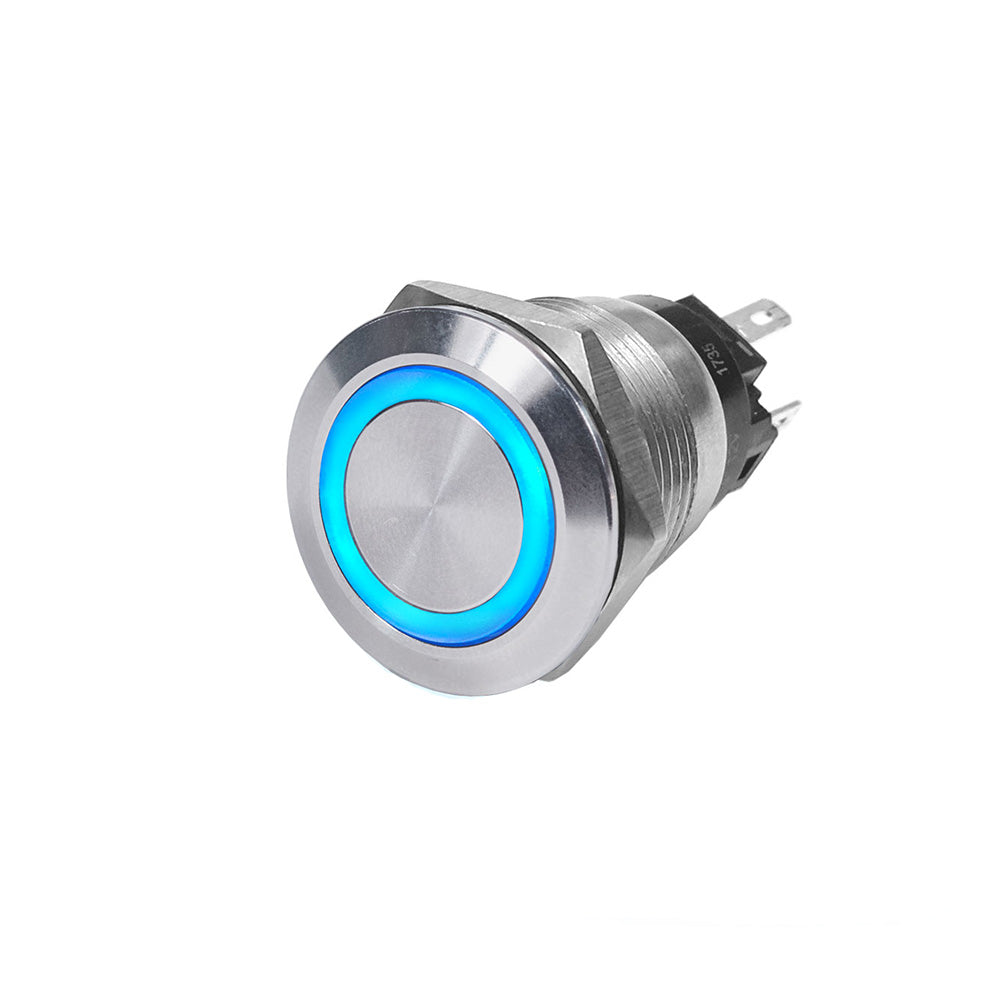

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A

The 4160 SS Push Button Switch is engineered for marine and boating environments, offering dependable performance and versatile control for your vessel's electrical systems. Its durable construction and customizable wiring options make it an essential component for ensuring reliable operation in demanding maritime conditions.

Features

• Rated for 10A continuous current, ensuring robust performance
• Available in Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST) configurations for versatile applications
• Configurable for normally open or normally closed wiring setups to suit your specific needs
• Easy installation with included .110-inch quick connect terminals, streamlining the setup process

Technical Specifications

Action	Off-On
Amperage	10A @ 12V DC
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Operating Temperature Range	-10°C to 70°C
Storage Temperature Range	-55°C to 85°C
Illumination	Independent – Separate contacts for LED power
Mounting Hole Diameter	19mm
Switching Cycles	18,000
Termination	5 × 0.110-inch Quick Connect terminals

Additional Specifications

• Color: Blue with stainless steel accents
• Box Dimensions: 2" H × 3" W × 5" L
• Weight: 0.05 lbs
• UPC: 632085041601
