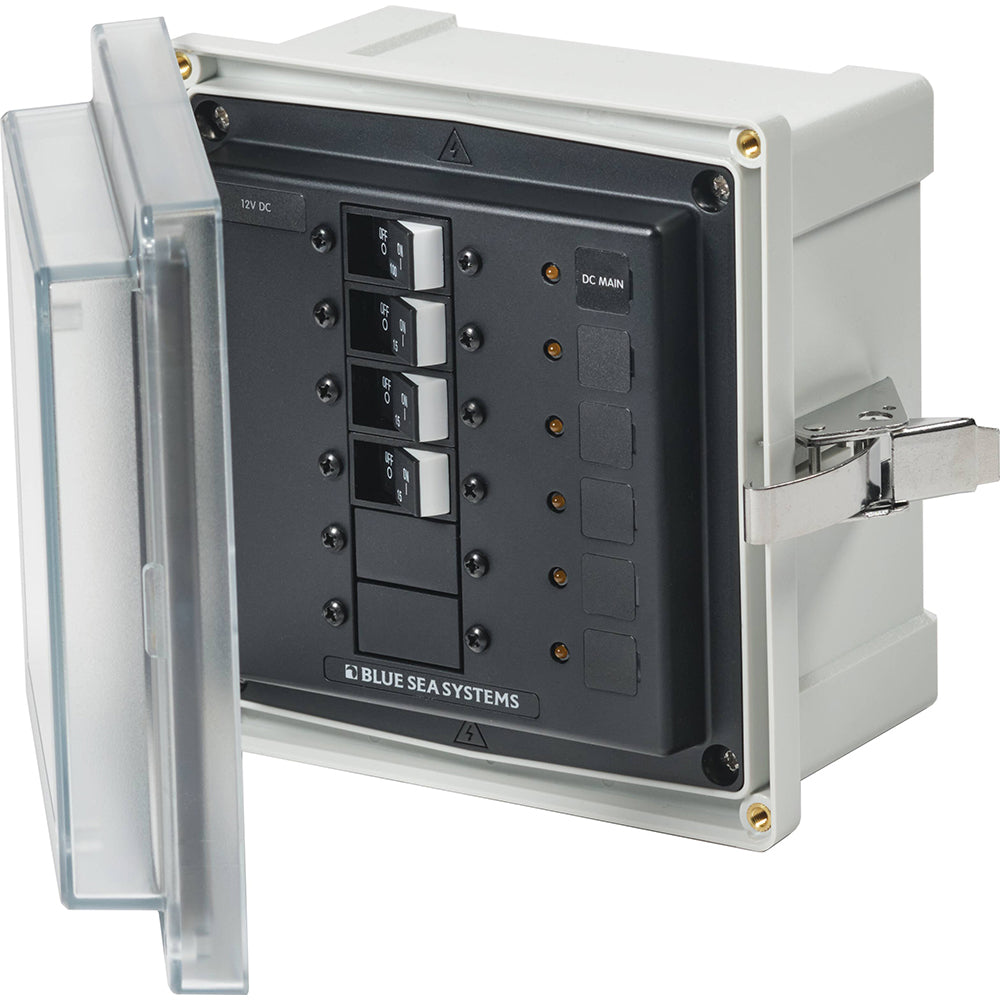

Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC

The 3135 SMS Panel Enclosure is expertly designed for marine and boating applications, providing a robust and reliable housing solution for DC circuit breakers and other large frame devices. Engineered to withstand harsh marine environments, this enclosure ensures your electrical systems remain protected and easily accessible on the water.

Key Features

• Blank apertures allow for custom breaker loading tailored to your vessel's electrical needs
• Durable glass-filled polycarbonate base offers superior strength and longevity
• Transparent cover provides clear visibility of circuit breaker status for quick monitoring
• Overlapping cover design enhances structural integrity and gasket protection against water ingress
• Seamless PUR gasket is oversized and formed in place for maximum waterproofing
• Stainless steel hinge pin is easily removable, facilitating unobstructed installation and maintenance
• Stainless steel latch secures the cover without compromising the enclosure's waterproof integrity
• Compatible with Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers, thanks to blank circuit positions
• Includes waterproof glands to ensure all connections remain dry and secure
• Integrated LED lights provide backlighting and an ON indicator for easy status checks in low-light conditions

Technical Specifications

Parameter	Specification
Circuit Breaker Type	1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
Overall Dimensions (H x W x D)	7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
Enclosure Dimensions (H x W x D)	6" x 6" x 4" (152 x 152 x 102mm)
LED Indicators	6 x Amber LEDs for ON indication and backlighting

What's Included

• 3135 SMS Panel Enclosure
• 6 Waterproof Glands
• Product Labels
• Mounting Hardware
• Comprehensive Instruction Manual

*Sold individually

Quick Guide (PDF)
Brochure (PDF)
