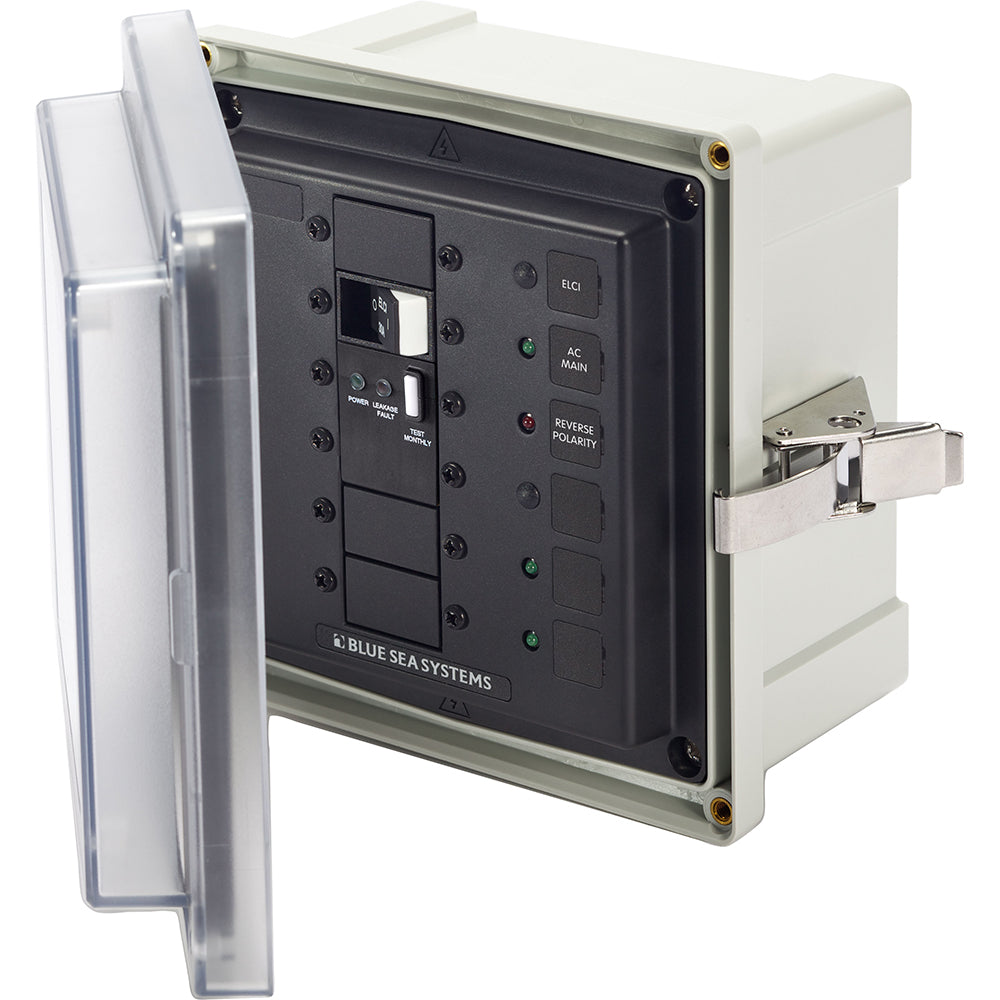

Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC

The 3118 SMS Panel Enclosure with ELCI (50A) is an essential component for marine electrical systems, providing a secure and compliant housing for your Equipment Leakage Circuit Interrupter (ELCI) and other large frame devices. Designed to meet ABYC E-11 standards, this enclosure ensures safety and reliability when installed within 10 feet of your boat's AC shore power inlet.

Features

• Customizable blank apertures for versatile breaker loading
• Durable glass-filled polycarbonate base for enhanced strength
• Transparent cover for easy monitoring of circuit breaker status
• Overlapping cover design for increased gasket protection and sturdiness
• Seamless polyurethane (PUR) gasket for superior waterproof sealing
• Stainless steel hinge pin for easy removal and unobstructed installation
• Stainless steel latch secures the cover without compromising enclosure integrity
• Compatible with Carling Technologies™ A and C Series Flat Rocker ELCI Main circuit breakers through blank circuit positions
• Pre-installed waterproof glands to ensure moisture resistance
• Integrated LED lights for backlighting and status indication (ON)

Technical Specifications

Component	Details
Circuit Breaker Type	1 x ELCI Main (50A) 120V, 2 x Blank Positions
Overall Dimensions (H x W x D)	7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
Enclosure Dimensions (H x W x D)	6" x 6" x 4" (152 x 152 x 102mm)
Installed LEDs	1 x Red (Reverse Polarity - 120V AC), 3 x Green (ON indication - 120V AC)

What's in the Box

• 3118 SMS Panel Enclosure
• 5 x Waterproof Glands
• Installation Labels
• Mounting Hardware
• Comprehensive Instruction Manual

Note: Sold as an individual unit.

Safety Information

WARNING: This product can expose you to chemicals, including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
